2. Overview

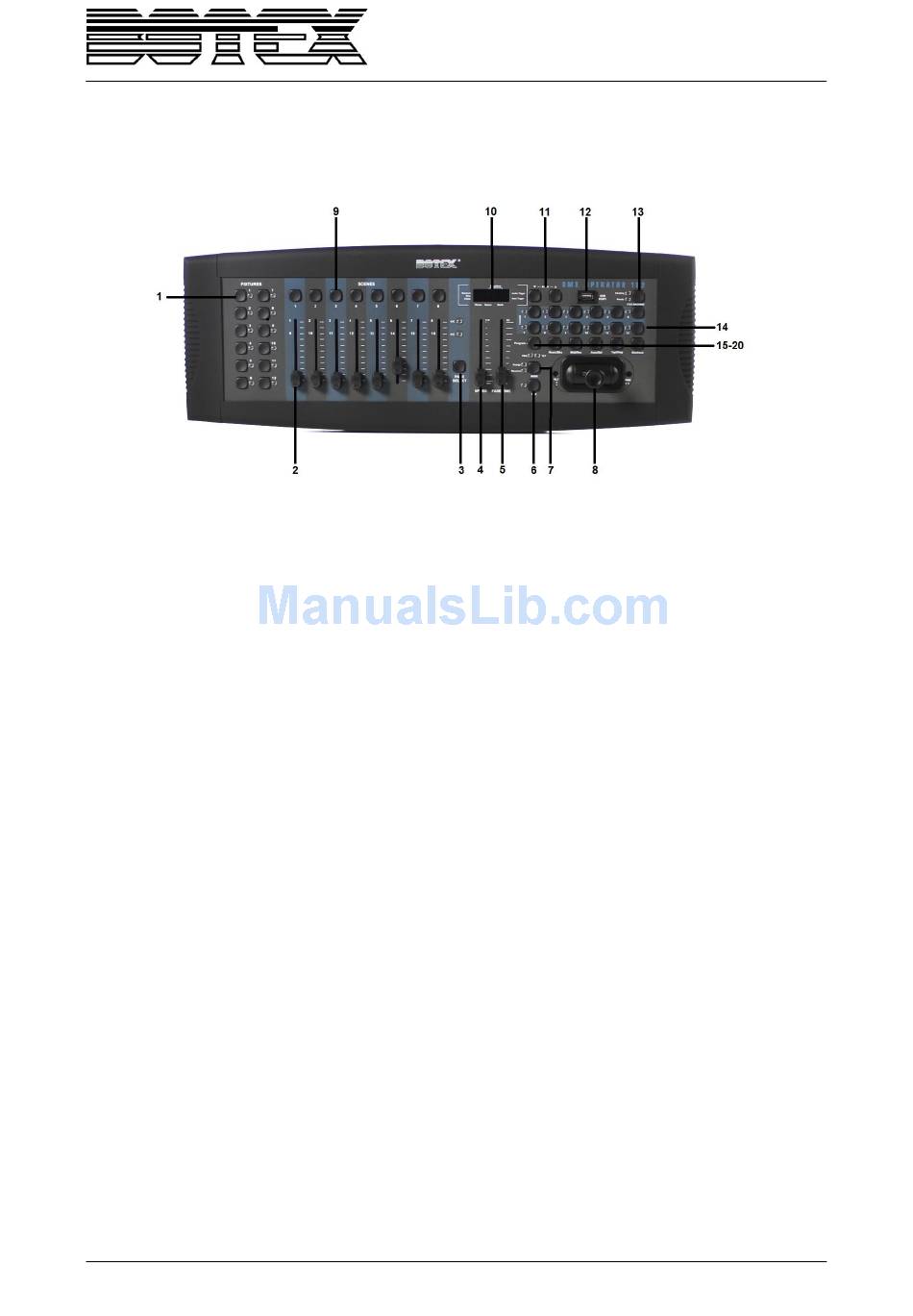

2.1. Front view

1. Fixture buttons(1 - 12)
These buttons are used to select the relevant fixtures for control.
2. Channel Fader (1 - 8)
These faders are used to control the output of each corresponding fixture channel.
3. Page Select
This button is used to switch between the channels 1 – 8 and 9 – 16.
4. Speed Fader
This fader is used to adjust the chase speed (range is 0.1 second to 10 minutes per step)
5. Fade Time-Fader
This fader is used to adjust the fade time (range is 0 to 30 seconds)
6. FINE button
This button is used in conjunction with the joystick. When the FINE button is engaged,
adjusting the joystick will be more precise when needing to hit a specific area with a scanner
or moving head.
7. MODE button
This is a multifunctional button that is used when assigning the joystick and Fade setting.
8. Joystick
It is normaly used to adjust the X/Y channel of a moving light.
9. Scene buttons (1 - 8)
This buttons are used when storing or playing programmed scenes. Also used when backing
up data to a USB MEM stick or through an ULink cable.
10. LED Display
The LED display shows you relevant information depending on current operation.
11. Bank Up / Down buttons
This buttons are used to select a scene bank or a chase step. They are also used to view files
in memory stick.
