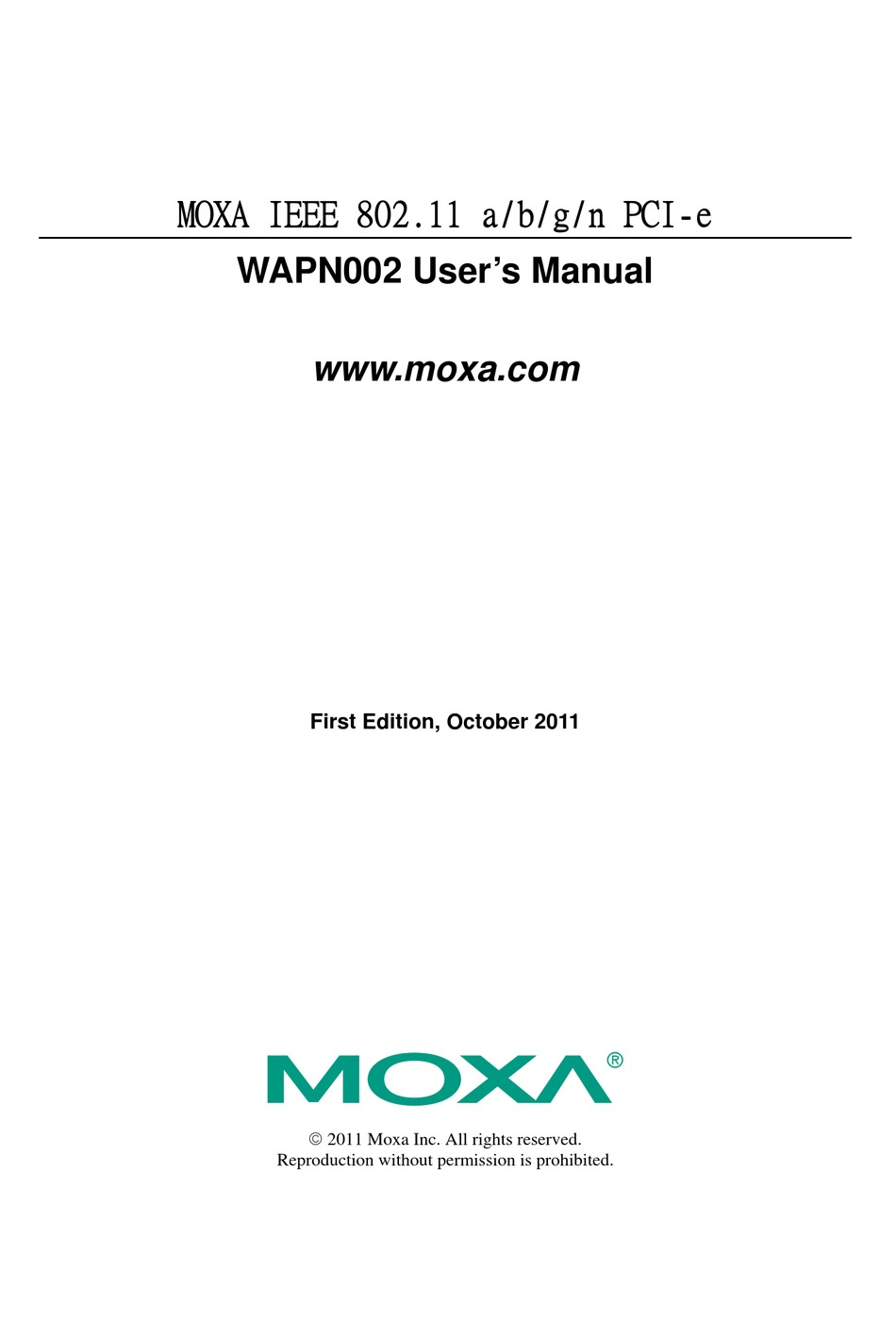

- Page 1 MOXA IEEE 802.11 a/b/g/n PCI-e WAPN002 User’s Manual www.moxa.com First Edition, October 2011 2011 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.
- Page 2 WAPN002 User’s Manual The hardware and software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright 2009 Moxa Inc. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction Overview Features Specification Chapter 2 Getting Started Module Layout Block Diagram Hardware Installation Software Installation... -
Page 4: Overview Features Specification
WAPN002 User’s Manual Introduction Introduction Chapter 1 The following topics are covered in this chapter: Overview Features Specifications... - Page 5 Introduction Overview WAPN002 PCI Express Module is designed to provide wireless communication for all wireless device based systems. It communicates via the standard 802.11a/b/g/n protocols. The WAPN002 uses the AR9280 wireless chipset from Atheros. This module is connected to the PCI bus through a PCI Express connector and special circuitry to allow for compatibility with either 3.3V or 5V PCI signaling.
- Page 6 WAPN002 User’s Manual Introduction Specification Features WAPN002 Chipset Atheros AR9280 Baseband Processor ˙ DSS with DBPSK, DQPSK, CCK (BBP) ˙ OFDM with BPSK, QPSK, 16QAM, 64QAM ˙ 802.11b: CCK@11/5.5 Mbps, DQPSK@2 Mbps, DBPSK@11 Mbps ˙ 802.11a/g: 64QAM@54/48 Mbps, 16QAM@36/24 Mbps, QPSK@18/12 Mbps BPSK@9/6 Mbps ˙...
-
Page 7: Getting Started
Getting Started Chapter 2 This chapter covers the module layout, and block diagram, hardware installation of the WAPN002. Software installation is covered in the next chapter. The following topics are covered: Module Layout Block Diagram Hardware Installation... -
Page 8: Module Layout
WAPN002 User’s Manual Getting Started Module Layout... -
Page 9: Block Diagram
WAPN002 User’s Manual Getting Started Block Diagram Below is a block diagram of the WAPN002. Primary board components are in bold, while external connections are italicized. - Page 10 WAPN002 User’s Manual Getting Started Connector Locations PCI Express Connector...
- Page 11 WAPN002 User’s Manual Getting Started PCI Express Bus Connector PIN Assignments...
-
Page 12: Hardware Installation
2. If using 2nd WLAN antenna, attach it to connector J2. 3. Install the WAPN002 PCI Express card on the system board. Apply pressure to both bus connectors and gently press the board onto the stack. The board should slide into the matching bus connectors. - Page 13 This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: SLE-WAPN002 ” Information for the OEMs and Integrators The following statement must be included with all versions of this document supplied to an OEM or integrator, but should not be distributed to the end user.
