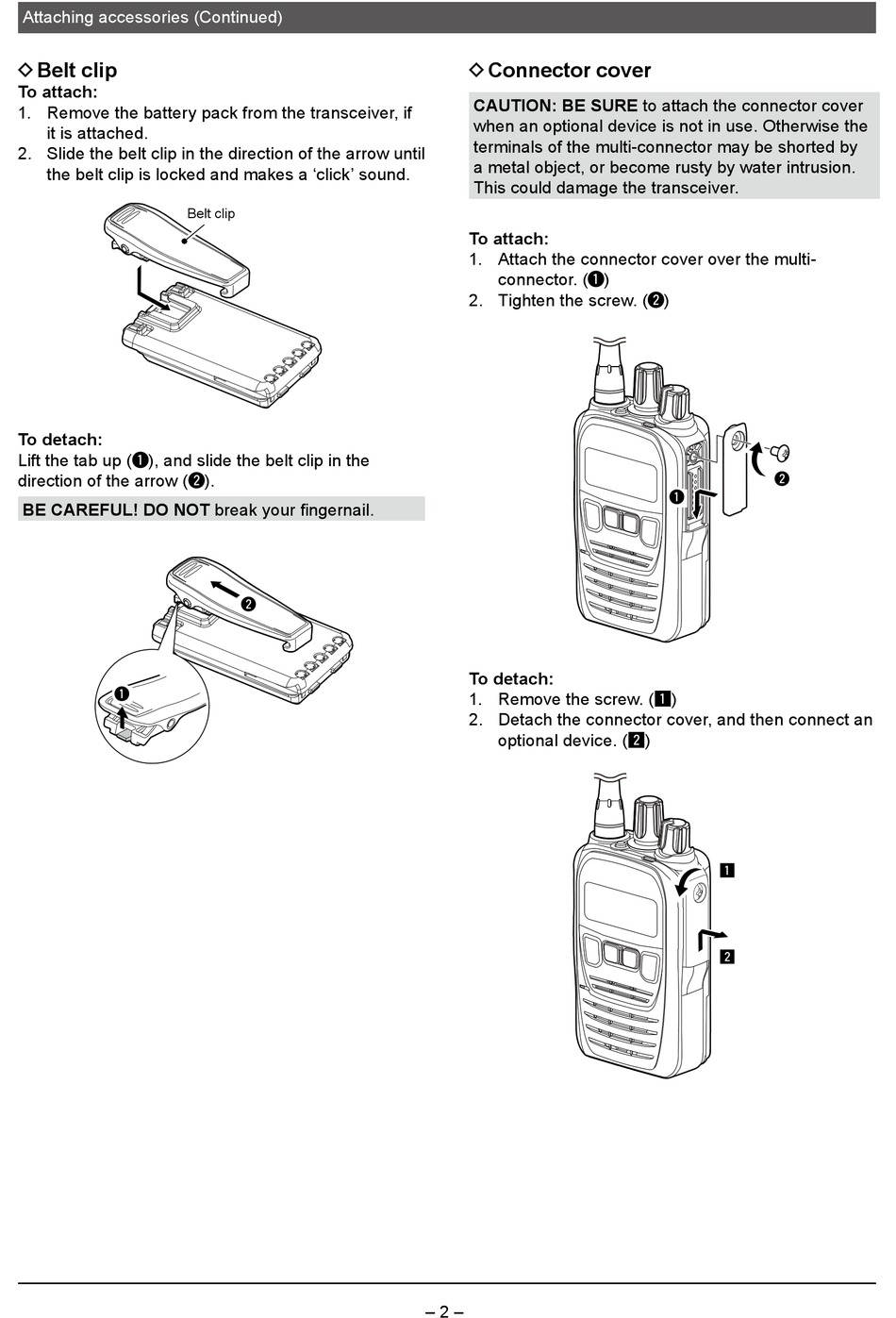

Attaching accessories (Continued)
D Belt clip
To attach:
1. Remove the battery pack from the transceiver, if
it is attached.
2. Slide the belt clip in the direction of the arrow until
the belt clip is locked and makes a 'click' sound.
To detach:
Lift the tab up (q), and slide the belt clip in the
direction of the arrow (w).
BE CAREFUL! DO NOTbreakyourfingernail.
q

Belt clip

w

D Connector cover

CAUTION: BE SURE to attach the connector cover
when an optional device is not in use. Otherwise the
terminals of the multi-connector may be shorted by
a metal object, or become rusty by water intrusion.
This could damage the transceiver.
To attach:
1. Attach the connector cover over the multi-
connector. (q)
2. Tighten the screw. (w)
To detach:
1. Remove the screw. (z)
2. Detach the connector cover, and then connect an
optional device. (x)
– 2 –
w
q
z
x
