Receiver

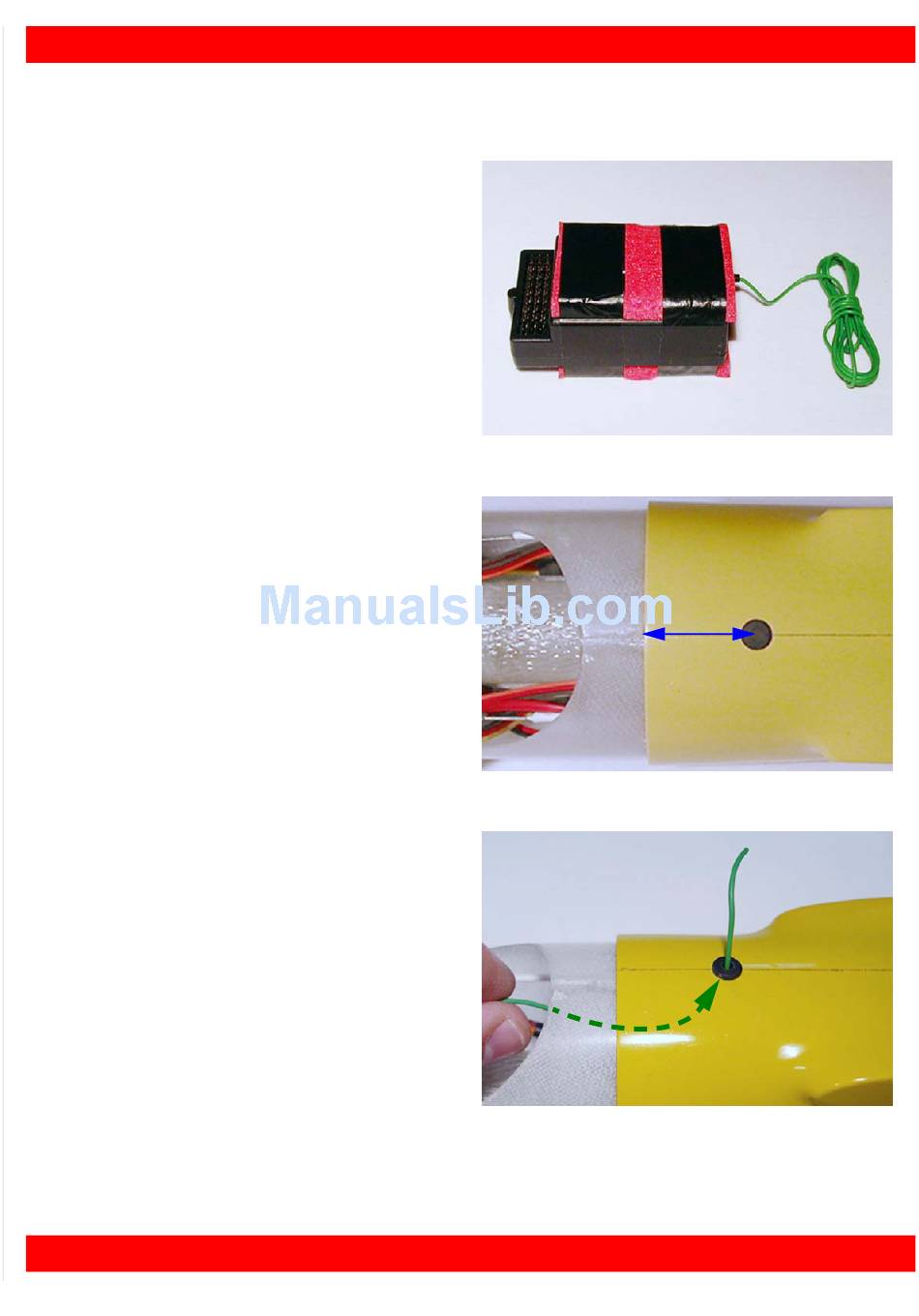

The receiver must be protected against possible shocks due to hard landings:
• cut two strips of polyethylene (5 mm thick)
and, using some tape, fasten them, over
and under the RX
Fig.51: One strip over and the other under the RX.
• drill 3 mm diameter hole in the fuselage in
the position shown in
• place a round servo grommet into the hole,
in order to avoid any damage to the anten-
na's wire;
Fig.52: Antenna's hole position.
• let the wire pass through the hole as shown
in figure 53;
Fig.53: Thread the antenna's wire through the hole.
The final positioning of the antenna will be shown later.
(see figure 51);
figure 52;
