Battery pack

• Cover the weights of epoxy (or hot glue) in order to form a uniform layer;
• cut a strip of velcro (8 x 4 cm);
• separate the velcro soft strip from the rough one;
• position the flat surface of the rough strip directly on the base in fuselage, in the position
shown in figure 8, leaving a gap of (at least) 85 mm from the ballast tube;
• join four NC size cells in a battery pack ar-
ranged as shown in
Note: the connector must be chosen according to the
ON/OFF switch used.
• wrap the battery pack with some heath
shrink sleeve;
• uniformly cover of epoxy (or hot glue) one
side of the battery pack;
• position the flat surface of the soft strip di-
rectly on the glued side of the battery pack
(see figure 10);
• wait until the glue is dry;
Fig.10: Soft strip of velcro in position.
8

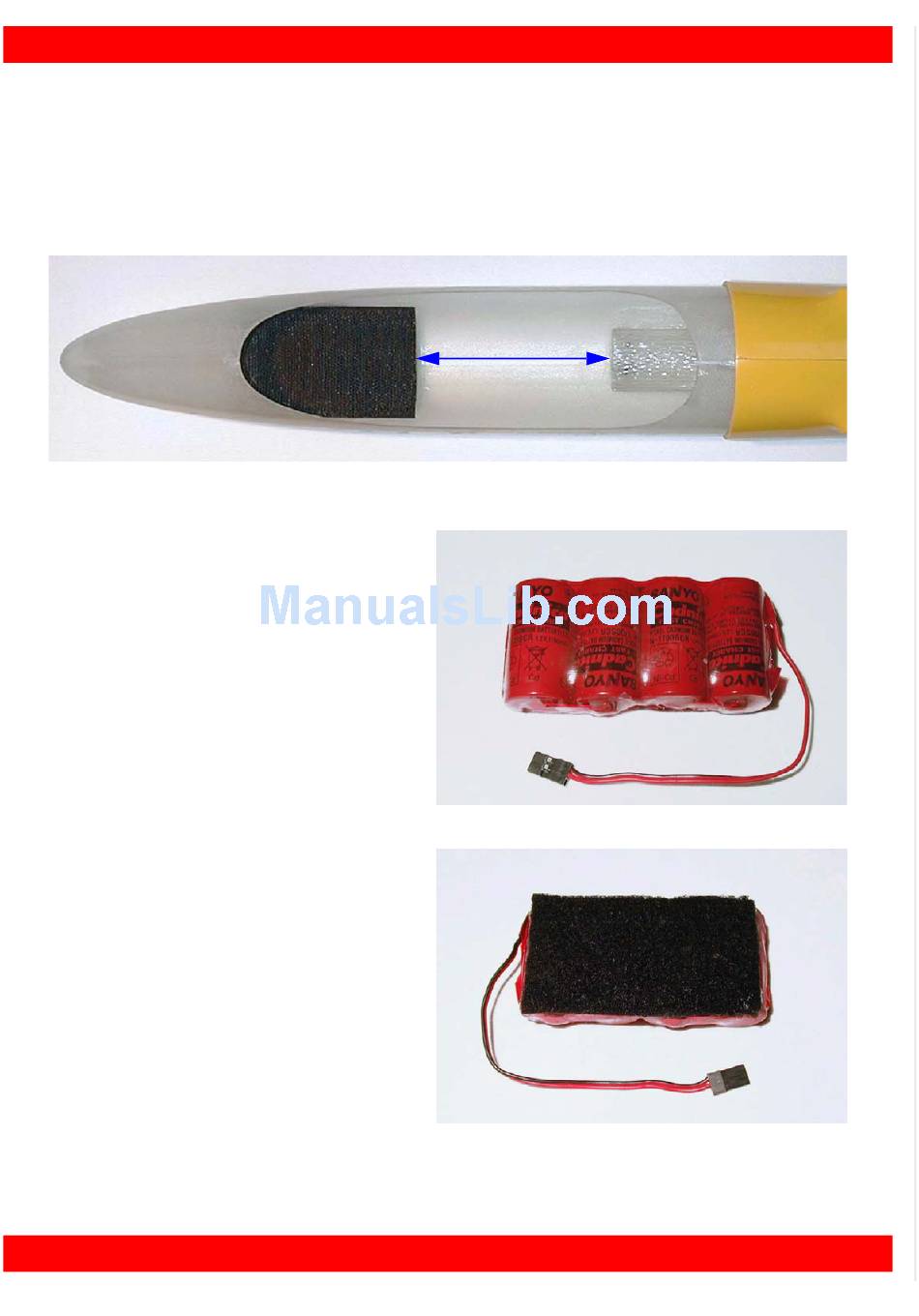

Fig.8: Rough strip of velcro in position.
figure 9;
Fig.9: Battery pack.
85 mm
