2.3 V-tail

Finishing tail insertion holes

• Using a drill bit 6 mm diameter (larger than
the holes), trim exceeding metal edges from
the tail insertion holes

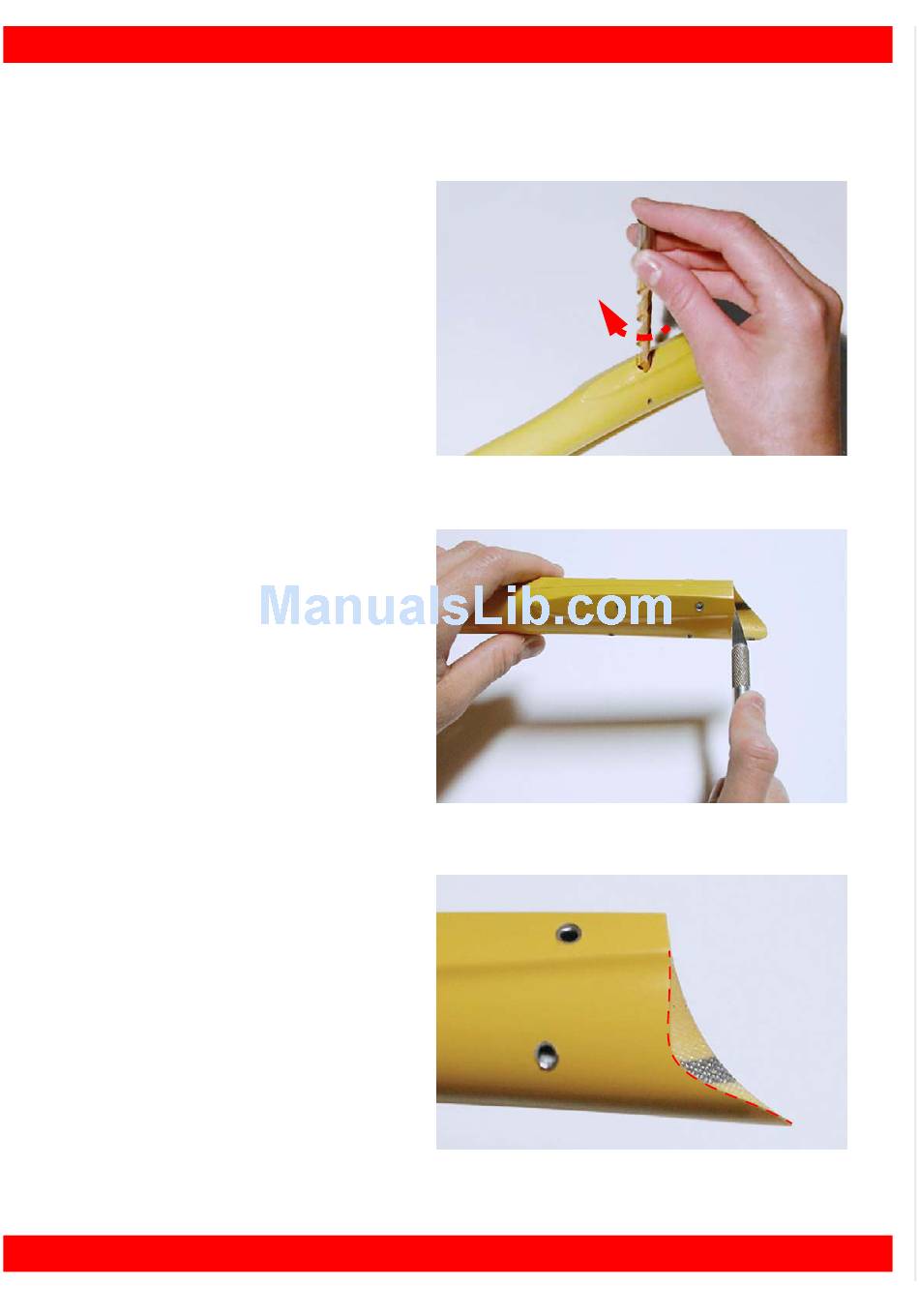

Fig.21: Trim exceeding metal edges.

Finishing fuselage end

• Using a knife, modify the final part of the fu-
selage (see figure 22)
interference with the servo pushrods;
Fig.22: Adjusting the end of the fuselage.
• using a file or some sandpaper, finish the
edge up to obtain the shape shown in
23.
The picture shows the difference from the initial
look and the final one (obviously both sides
must be molded in the same way).
Fig.23: Comparing the initial and the final look.
12
(see figure 21);
in order to avoid any
figure
