X-MODELS - Blade XL & SUPER BLADE
• drill 1.5 mm diameter hole on the marked
points (see figure
• using a knife, make the ON/OFF switch
housing;

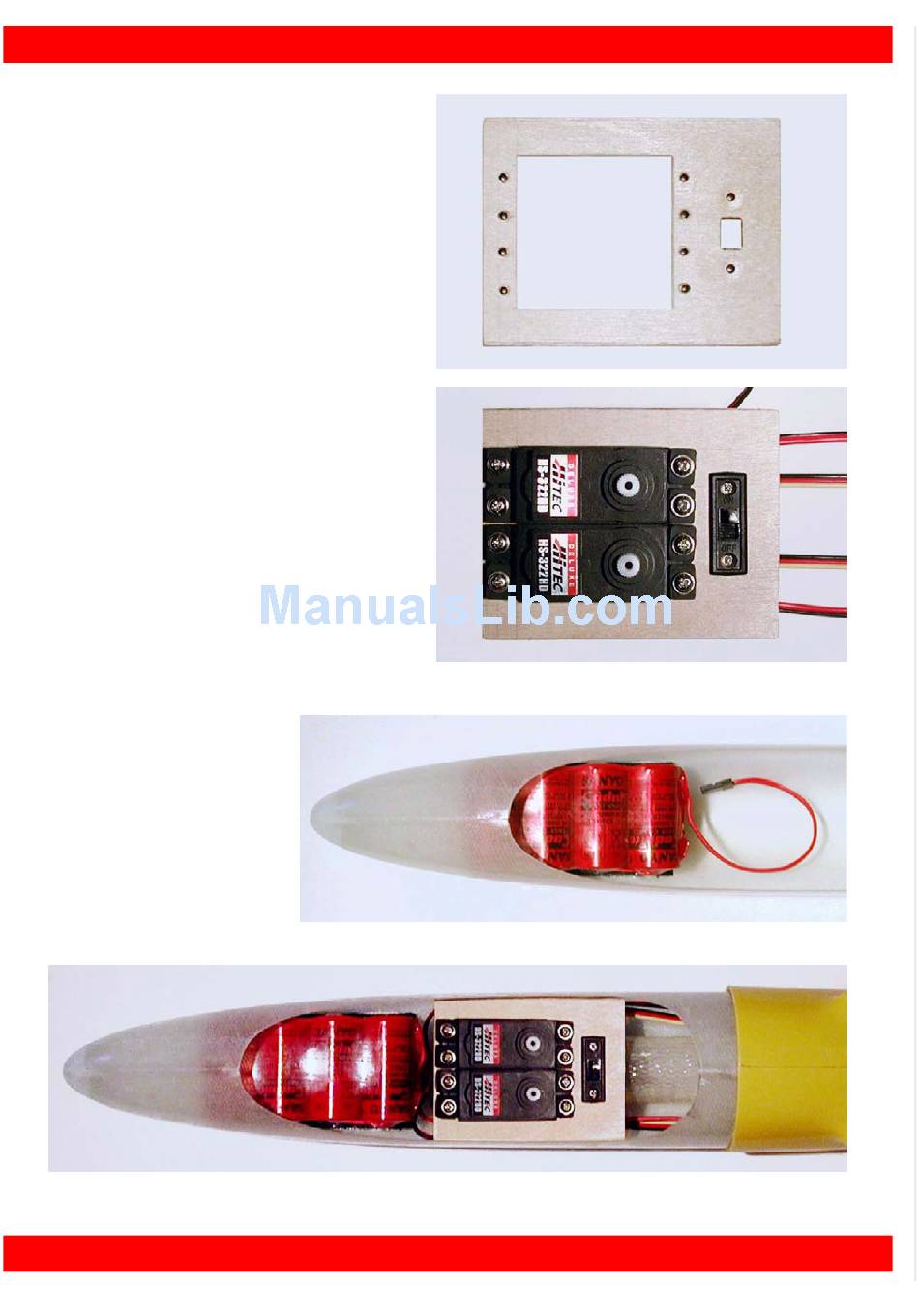

Fig.14: Drill the marked points.
• mount the two servos on the frame as
shown in (see figure 15)
proper screws;
• mount also the ON/OFF switch;
• check that ON and OFF markings truly cor-
respond to the status "switched ON" and
"switched OFF";
• check the correct travel of the ON/OFF
switch lever;
• fasten the switch using the proper screws.
Fig.15: Servos and ON/OFF switch.

Positioning battery pack and servos

• Insert the battery pack as
shown in figure 16;
Fig.16: Battery pack in position.
• position the servos mounting frame in order to remove freely the battery pack
10
14);
and fasten with the
Fig.17: Frame with servos and ON/OFF switch in position.
(see figure 17);
