HPE ProLiant XL260a Gen9 Server
The HPE ProLiant XL260a Server delivers Intel Xeon Phi performance, while taking advantage of the Apollo 6000
System's modular flexibility and rack-scale efficiency. This server leverages Intel's Intel Xeon Phi x200 series
processors and DDR 4 HPE SmartMemory.
The modular HPE Apollo a6000 Chassis accommodates up to 10 single slot XL260a server trays to address various
workload needs.
Rack scale power efficiency is fueled by an external power shelf, with easy Apollo Platform Management for rack,
chassis, server and component level management
Item Description

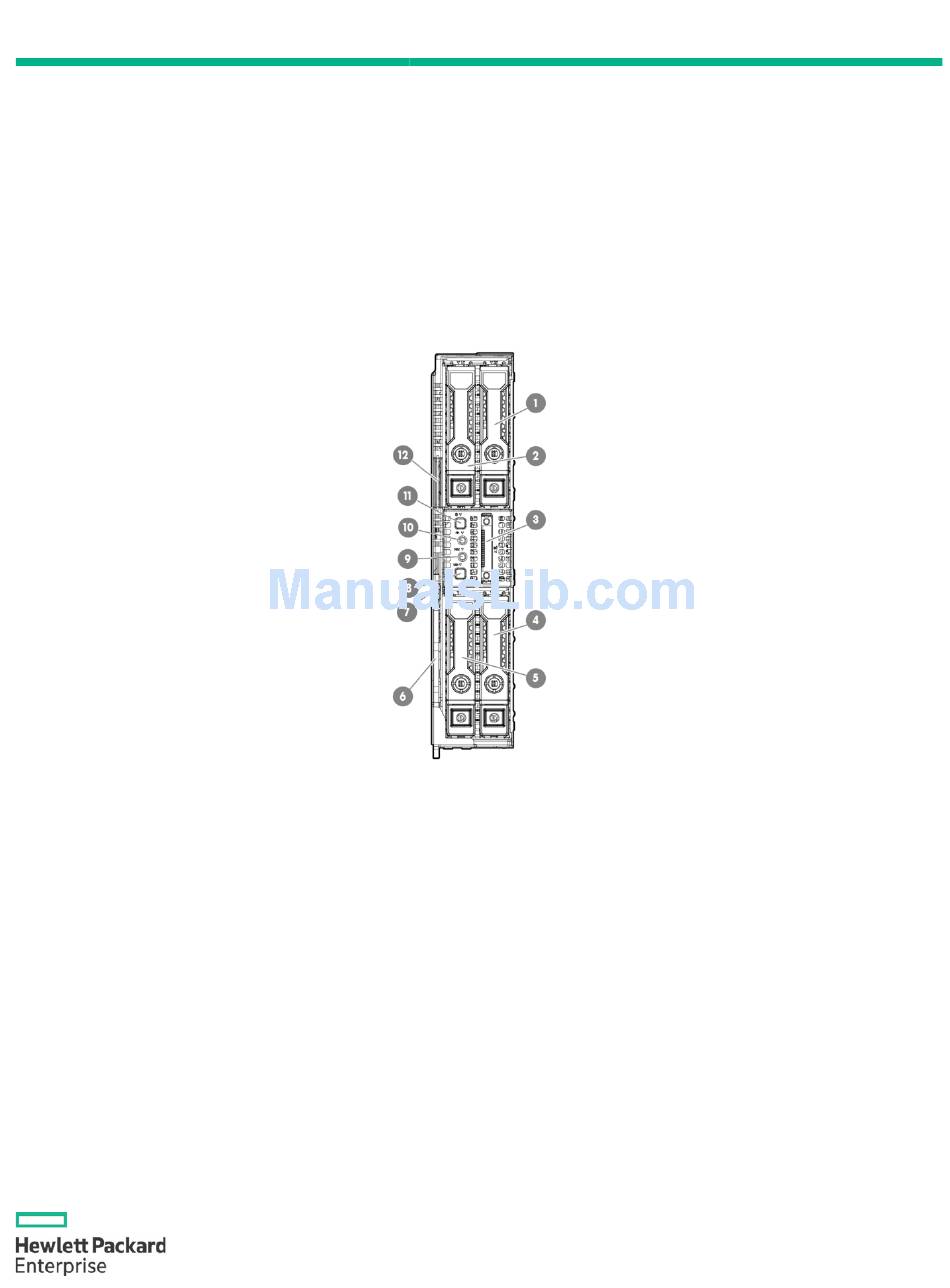

Front View Item Description
1.
Drive 2
2.
Drive 1
3.
SUV connector
4.
Drive 4
5.
Drive 3
6.
Server tray release lever
7.
Server tray release latch
8.
Power Button /Power LED
9.
Health LED
10.
NIC status LED
11.
UID button
12.
Serial label pull tab
HPE ProLiant XL260a Gen9 Server
Page 1
Advertisement
Table of Contents
Related Manuals for HPE ProLiant XL260a Gen9
Summary of Contents for HPE ProLiant XL260a Gen9
- Page 1 System's modular flexibility and rack-scale efficiency. This server leverages Intel’s Intel Xeon Phi x200 series processors and DDR 4 HPE SmartMemory. The modular HPE Apollo a6000 Chassis accommodates up to 10 single slot XL260a server trays to address various workload needs.
- Page 2 QuickSpecs HPE ProLiant XL260a Gen9 Server Overview Top View Item Description 1. SFF hard drive bays 2. Support for 1 Intel Xeon Phi x200 series 3. Support for 2 High Speed Fabric Mezzanine Cards 4. Support for up to 6 DDR4 DIMMs...
-
Page 3: Standard Features
PCIe 3.0 Low profile HPE Server ROM HPE ROM (Read Only Memory) is now digitally signed using the HPE Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM. - Page 4 UEFI System Utilities screen. By default, the System Utilities menus are in the English language. UEFI enables numerous new capabilities, including both industry standard functionality and features specific to HPE ProLiant servers. Some of the features that UEFI enables and that the HPE ProLiant XL260a Gen9 can support include: •...
- Page 5 PXE Support USB 1.1 and 2.0 Compliant SMBIOS 3.0.0 Power To review typical system power ratings use the HPE Power Advisor which is available via the online Specifications tool located at URL: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor. NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hpe.com/products/QuickSpecs/14209/14209.html...
- Page 6 16 MB Flash • 256 MB DDR 3 with ECC (112 MB after ECC and video) The ProLiant XL260a Gen9 Server is a single-slot tray for the HPE Apollo a6000 Chassis. Form Factor NOTE: There are various XL260a server trays...
- Page 7 Enterprise provides 12 months of support for each Service Pack for ProLiant release (may vary by region). The user experience around HPE SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HPE SUM and the latest SPP.
- Page 8 Standard Features reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HPE SUM provides the tools to optimize stability and consistency throughout the company. While HPE SUM and the SPP recommend the combinations of firmware and system...
-
Page 9: Optional Features
IT infrastructure through a single, simple management console. For more information, see: http://www.hp.com/go/insightcontrol. HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates. - Page 10 HPE Insight Online HPE Insight Online is a new addition to the HPE Support Center for one stop, secure access to product and HPE support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at any time.
-
Page 11: Configuration Infomration - Factory Integrated Models
NOTE: FIO indicates that this option is only available as a factory installable option. NOTE: HPE Apollo a6000 Chassis and HPE Apollo 6000 Power Shelf are required to support the server. Refer to their QuickSpecs for additional information. HPE Apollo 6000 Power Shelf https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04293375... - Page 12 NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111535...
- Page 13 To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111535 • For memory population rules and additional memory guidelines, please see the HPE ProLiant XL260a Gen9 user guide at http://www.hpe.com/support. Page 13...
- Page 14 QuickSpecs HPE ProLiant XL260a Gen9 Server Memory Supported Memory Bandwidth on Intel® PHI DIMM 16 GB 16 GB 32GB 32GB 64GB Capacity Supported 1R RDIMM, 1R RDIMM, 2R- RDIMM 2R- RDIMM 2R-LRDIMM Options LRDIMM SLOTS THAT CAN BE POPULATED 6 slots...
- Page 15 QuickSpecs HPE ProLiant XL260a Gen9 Server Memory Page 15...
-
Page 16: Technical Specifications
QuickSpecs HPE ProLiant XL260a Gen9 Server Technical Specifications System Unit Server Dimensions 1.70 x 8.33 x 27.87 in (4.33 x 21.15 x 70.79 cm) (L x W x D) Shipping 37.63 x 15.13 x 9 in (95.5 x 38.4 x 22.8 cm) - Page 17 QuickSpecs HPE ProLiant XL260a Gen9 Server Technical Specifications moisture) of 24°C (75.2°F) dew point or 90% relative humidity. Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non- condensing. Operating 3050 m (10,000 ft). This value may be limited Altitude by the type and number of options installed.
-
Page 18: Summary Of Changes
Description of Change 26-Sept-2016 Version 1 Created Created the QuickSpecs for HPE ProLiant XL260a Gen9 Server Sign up for updates © Copyright 2016 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services.
