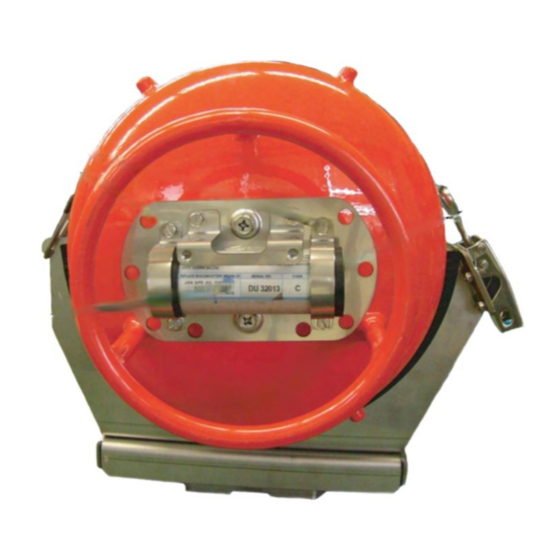

INSTRUCTION MANUAL
WEB CONFIGURATOR
VR-3000/VR-3000S
MODEL
This manual is solely for use by the installer.
Under no circumstances shall this manual be released to the user.
The installer shall remove this manual from the vessel after installation.
This manual contains no password data. Obtain password data from
FURUNO before beginning the installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Furuno VR-3000

Summary of Contents for Furuno VR-3000

  • Page 1 This manual is solely for use by the installer. Under no circumstances shall this manual be released to the user. The installer shall remove this manual from the vessel after installation. This manual contains no password data. Obtain password data from FURUNO before beginning the installation.

  • Page 3: Table Of Contents

    CONTENTS Record of Modifications Made in this Manual..........ii 1 Setup of PC..................... 1 2 Connection ....................1 3 Software Configuration ................2 3.1 Audio (Audio Channel)................4 3.2 Video (Radar video channel) ..............7 3.3 Serial channel (RS-422) ................. 16 3.4 Digital channel ..................

  • Page 4: Record Of Modifications Made In This Manual

    Record of Modifications Made in this Manual Pub No., Version No., Software Outline of Modification Date of Modification (Prog. No.) OME-44371-A Same as above printing. Apr. 19, 2006...

  • Page 5: Setup Of Pc

    1) PC with web browser, Internet Explore 6.0. 2) Ethernet cross cable 1 Setup of PC Before connecting to VR-3000/S, set the IP address and subnet mask of the PC as below. The IP address of VR-3000/S is 10.0.0.100. Procedure for Windows 2000 / XP 1.

  • Page 6: Software Configuration

    5. Enter the address, 10.0.0.100. (http://10.0.0.100/) Note Web configurator can be opened after VDR software runs. Start page of VR-3000/S Web configurator appears. If not, check the connection of Ethernet cross cable and network settings on the PC. 6. Press “Connect” button. Main window appears.
  • Page 7 Memory size in DRU Memory size of HD Fig. 3.1 Main Window of Web Configurator, Upper Part 8. Press Web-RAP button in Main window to show Web RAP window, and then press Start button. The system indicates errors. If any storage failure error messages including DRU failure error appear, eliminate the error before preceding the next step.

  • Page 8: Audio (Audio Channel)

    12. Select a sub menu by pressing a desired button in Main menu. 13. In the sub (card) menu; 1. First, press “Channels” button. 2. Press “Next” button to select the channel for editing. 3. Press “Edit” button. 4. Edit as required. (Select “Submit” to save the change.) Note: When Junction Box (IF-8530) is connected, checked the “Remote Junction Box selected”...
  • Page 9 Fig.3.6 Audio Channel Edit menu Active: When the channel is used, check this box. Channel id: Enter a name to identify the sensor. (No.1 VHF for example) Source: Enter “Model name.” (FM-8700 for example) Source type: Numeric field Note: Enter “Manufacture.” (Furuno for example)
  • Page 10 Audio channel test Audio channel test is carried out to check whether audio is received clearly in adequate level or not. To do so; 1. Select a channel to be tested in Audio Channel menu using Next or Previous button. 2.

  • Page 11: Video (Radar Video Channel)

    3.2 Video (Radar video channel) The system receives VESA (Video Electronics Standards Association) video signal. Video signal level: 0.5 to 1 Vpp (Minimum sync signal is 50 mV when a composite sync signal is used.) Horizontal sync signal: Max. 91.146 kHz, positive or negative Vertical sync signal: Max.
  • Page 12 Fig. 3.8 shows Video sub menu for SXGA video signal. Fig. 3.8 Video Channel menu (1/2)
  • Page 13 Fig. 3.9 Video Channel menu (2/2)
  • Page 14 Following describes each item in video channel edit menu. These lines are always checked. Always set to 0 (None). Fig.3.10 Video channel Edit menu (1/2)
  • Page 15 Fig.3.11 Video channel Edit menu (2/2) Horizontal offset: Moves the picture horizontally. With a larger (smaller) value, the picture moves left (right). If the value is too high, the framegrabber cannot present a valid image, indicating a small red cross at the upper left corner in the Internet-explorer display.
  • Page 16 Pixel rate: It is used to set a parameter to supply correct current to PLL-oscillator. This parameter is set according to resolution and horizontal frequency. Save image to web: Leave the default setting “Saved as JPEG” unchanged. Charge Pump Current: 0.5 mA fixed Video Clock Polarity: Through fixed Counter Clock Selection: 49 MHz fixed Color mask bit: “Color mask bit”...
  • Page 17 HDVD Sync Termination: You need to set 75 ohms in the case of composite sync (Sync type = Hsync or Vsync). VCO Clock Hold: When you cannot get correct radar image in the case of composite sync or sync on green, you may get correct image with setting that this parameter is “off”.
  • Page 18 Frame Grabber Setup Flow Chart Start Select VIDEO>Channels>Edit and set parameters as below. Settings in parenthesis are reference only. These parameters are set according to video signal. Horizontal offset: Vertical offset: Horizontal sync polarity: (Positive) Vertical sync polarity : (Positive) Phase: Horizontal resolution: (1280)
  • Page 19 To previous page Wait for 5 to 15 second. Picture is in position Picture is aligned? and correct size? Change Phase setting. Press Test button. Wait for 5 to 15 second. Find a vertical line Picture is shaped? and make it a straight line.

  • Page 20: Serial Channel (Rs-422)

    3.3 Serial channel (RS-422) This menu sets channels for signal received by RS-422 IN terminal board (SI00 to SI07), and Junction Box IF-8530 (SI08 to SI15). The channel receives not only NMEA sentences but also binary and ASCII data. Antenna position of the position sensor or GPS is entered in the following form.

  • Page 21: Digital Channel

    3.4 Digital channel Digital signal is connected via Junction Box, IF-8530 (optional for VR-3000S). Receivable signal: 10 to 32 V voltage signal or contact signal When voltage signal is connected, connect A and B input terminals. When Dry contact is connected, connect B and G input terminals. And be short-circuited between the 24 and A input terminals by the use of the jumper wire.

  • Page 22: Analog Channel

    3.5 Analog channel Analog signal is connected via Junction Box, IF-8530 (optional for VR-3000S). Receivable signal: –10 to +10 V or 4 to 20mA Connect V and G input terminals. When 4 to 20 mA signal is connected, be short-circuited between the V and I input terminals by the use of the jumper wire. Channel number or channel # corresponds to the label, AN00 to AN15, on the ANALOG IN terminal board in the Junction Box.
  • Page 23 NMEA Select the NMEA version being input to the VDR. Vessel ID (Vessel identification) Approval of authority, Vessel name, Vessel IMO number, Vessel MMSI number and Vessel flag are entered in this menu. UTC-POS (UTC and position source) Generally, UTC and position source is GPS receiver connected to SI00 channel. Antenna position is the value entered in RS422 Serial Channel menu.

  • Page 24: Making Backup Copy Of Configuration Data

    4 Making backup copy of configuration data For future reference, make a backup copy of the configuration data by following the instruction below. The configuration data file is opened up in WordPad or other editor (not Notepad). 4.1 Copy to boot compact flash card After software configuration is complete, make a copy of the configuration data on to the Compact Flash card in the DCU.

  • Page 25: Copy To Recording Medium Of The Pc

    4.2 Copy to recording medium of the PC The configuration data must be also copied onto the recording medium of the PC for future reference. The copied data can be used for another ship after editing in Wordpad. It is recommended to leave the recording medium of the PC which contains the configuration data on board a ship for future service.

  • Page 26: Software Configuration With File Data

    5 Software Configuration with file data The VR-3000/S can be configured by using the configuration data (“ini” file) on the recording medium of the PC in three steps: uploading the data to VR-3000/S, loading the data to the system, and then, saving the data to the DRU.

  • Page 27: Initialization Of Index File

    2. Select “0; All device” in the pull-down menu. 3. Press Clear index button. 4. After clear index finished, reboot VR-3000/S . (Power Off-On) Don’t use the Reboot VR-3000 button when normal operation. The Reboot VR-3000 button is only used for software debug.

  • Page 28: List Of Web Configuration Menu

    List of Web Configuration menu Main menu - System version Submenu Active: x - Nodes Submenu Channel#: MIC X / MIC X - Audio Submenu Channel id: UNDEFINED - Video Submenu Sample rate: 15625 Hz Fixed - Serial Submenu Source: UNDEFINED - Digital Submenu Sample data size: 8-bit Fixed - Analog Submenu...
  • Page 29 RS422 serial card Digital channel Active: x Active: x Name: CONTROL RS422#1 Channel#: DCXX Node id: 1 Channel id: UNDEFINED Source: UNDEFINED Number of channel: 8 Source type: 0 Type: Normal Active: x Sample rate (Hz): 2 Hz Fixed Name: RJB Note: Node id: 2 Number of channel: 8...
  • Page 30 Show config info Clear config Status display: Enable Select number of flush-devices in DRU : 3 Handle CONFIG-file Test Microphone Clear Web-Log Reboot VR-3000 Handle CONFIGURATION-file Show Index: 0=>All drives Clear Index: 0=>All drives Show config info Clear config Status display: Enable...
  • Page 32 *00016033700* *00016033700* *00016033700* *00016033700* ( ( DAMI DAMI ) ) VR-3000/3000S(WEB) VR-3000/3000S(WEB) * 0 0 0 1 6 0 3 3 7 0 0 * * 0 0 0 1 6 0 3 3 7 0 0 * *OME44371A00* *OME44371A00*...
