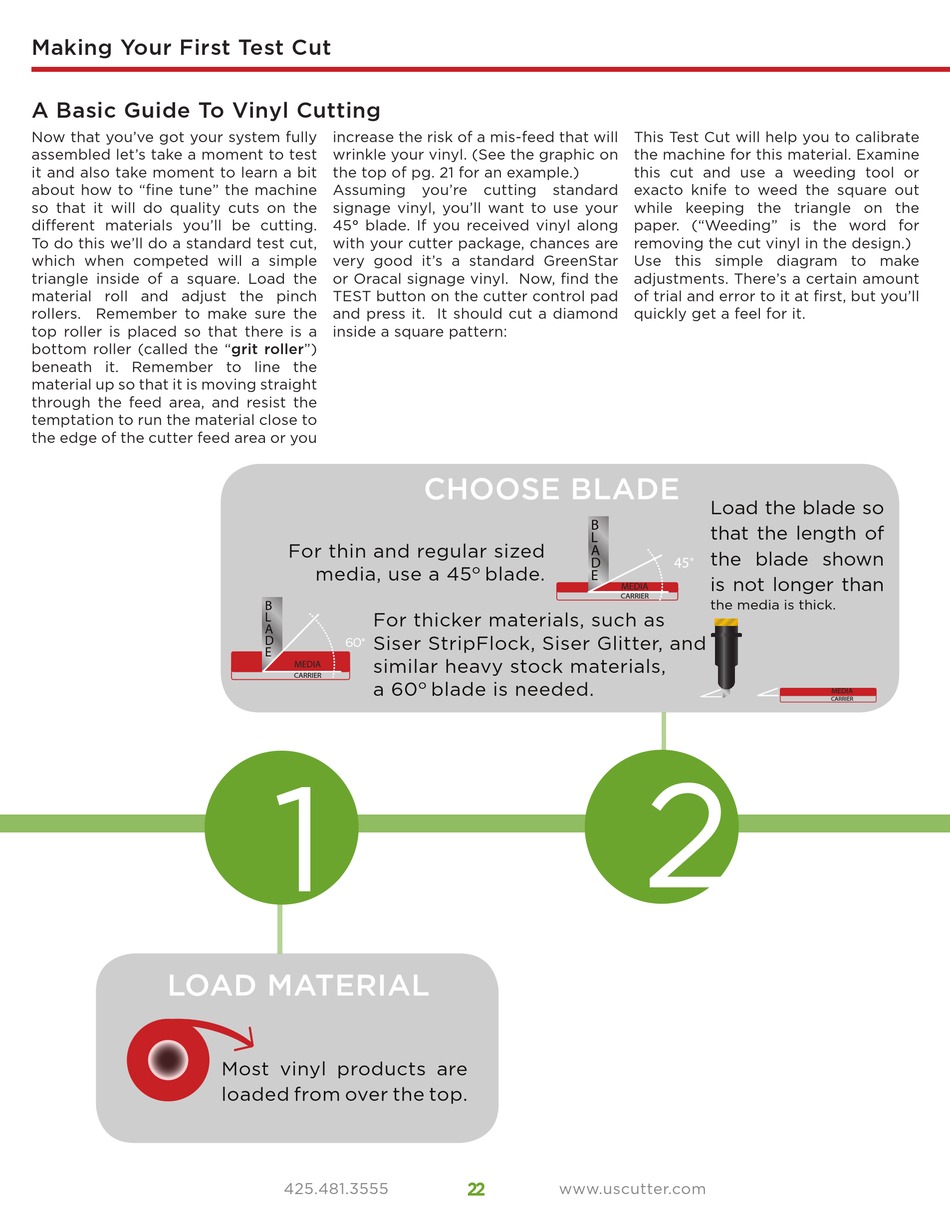

Making Your First Test Cut

A Basic Guide To Vinyl Cutting
Now that you've got your system fully
assembled let's take a moment to test
it and also take moment to learn a bit
about how to "fine tune" the machine
so that it will do quality cuts on the
different materials you'll be cutting.
To do this we'll do a standard test cut,
which when competed will a simple
triangle inside of a square. Load the
material roll and adjust the pinch
rollers. Remember to make sure the
top roller is placed so that there is a
bottom roller (called the "grit roller")
beneath it. Remember to line the
material up so that it is moving straight
through the feed area, and resist the
temptation to run the material close to
the edge of the cutter feed area or you
B
L
A
D
E
MEDIA
CARRIER
LOAD MATERIAL
increase the risk of a mis-feed that will
wrinkle your vinyl. (See the graphic on
the top of pg. 21 for an example.)
Assuming
signage vinyl, you'll want to use your
45° blade. If you received vinyl along
with your cutter package, chances are
very good it's a standard GreenStar
or Oracal signage vinyl. Now, find the
TEST button on the cutter control pad
and press it. It should cut a diamond
inside a square pattern:
For thin and regular sized
media, use a 45
B
L
A For thicker materials, such as
D
E Siser StripFlock, Siser Glitter, and
60
similar heavy stock materials,
MEDIA
CARRIER
a 60
1
MEDIA
CARRIER
Most vinyl products are
loaded from over the top.
425.481.3555
you're cutting standard
CHOOSE BLADE
o blade.
o
blade is needed.
