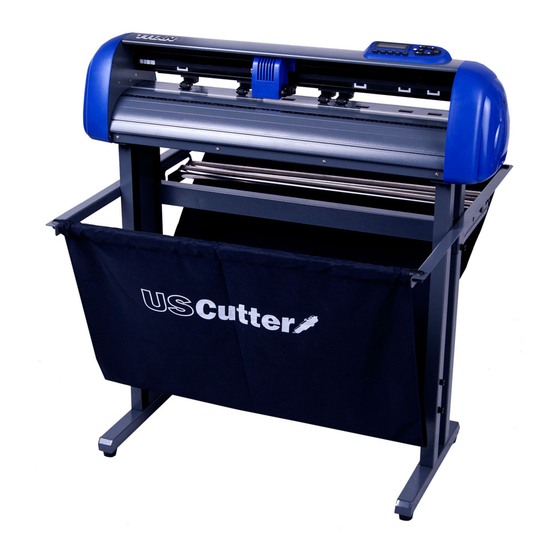

Floor Stand Assembly Instructions
Step1
Position the support for the left side
perpendicularly to bottom stand and
place the screws into the holes. Tighten
them to form a left side T-stand
Repeat the same steps with the support
for the right side.
Step2
Place the stand beam upright on the T-stand and put the screws into the holes,
but do not tighten them at this step.Repeat the same steps with another stand beam.

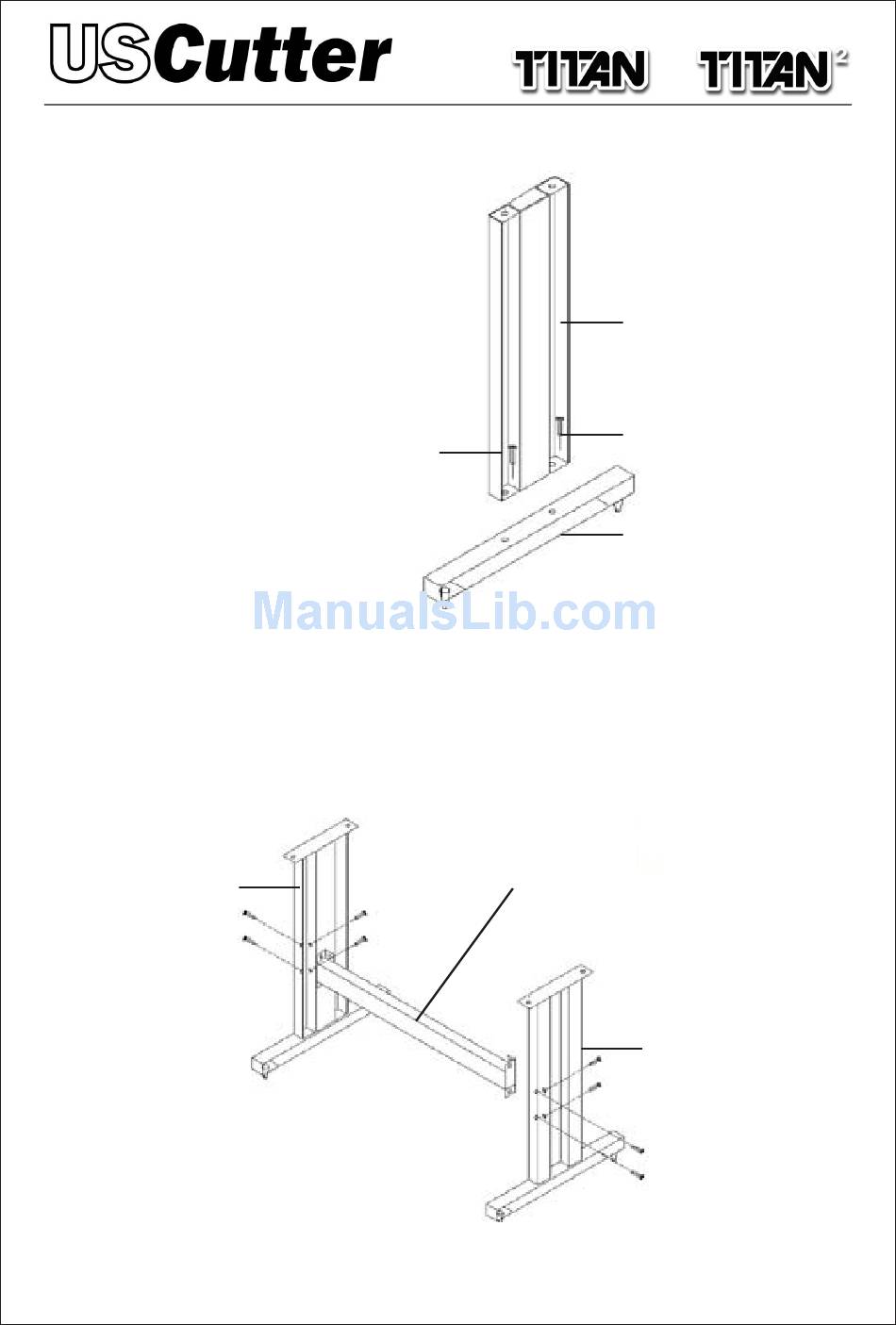

T-stand for left side
screw
stand beam
support for the left side
screw
bottom stand
T-stand for right side
