Control Panel - USCutter SC2 User Manual & Assembly Instructions

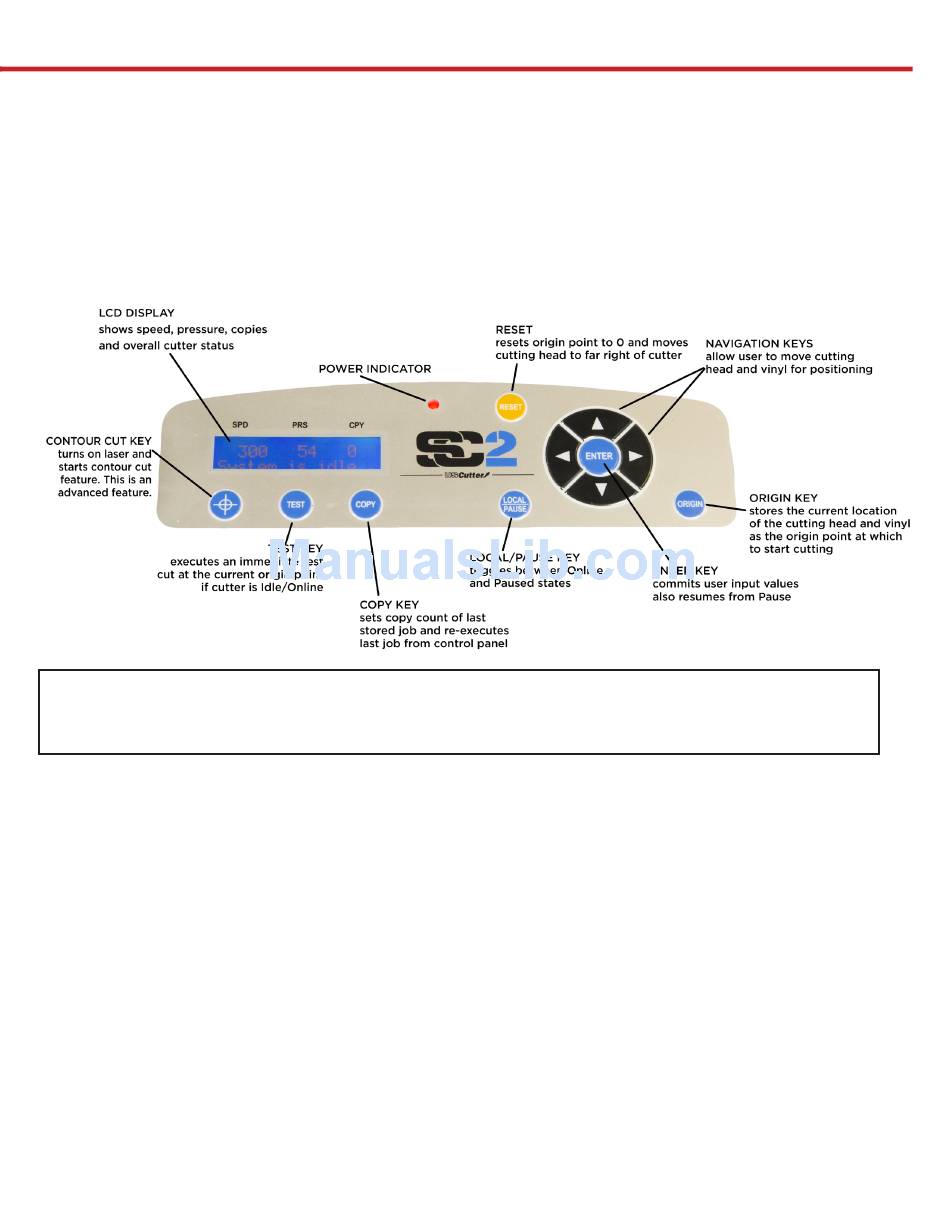

The control panel allows direct control of the cutter state (Local/Paused), change Speed/Pressure,
perform an immediate test cut, make a copy by repeating the last cut job and turn on the laser to
assist with accurate positioning of the blade for contour cutting. The various buttons and functions
of each button are oulined below.
Some screens/buttons use different terms which all mean the same thing. This might help:
LOCAL = Idle = Online = Automatic = Waiting for commands from Computer or User at Control Panel
PAUSE = Paused = Offline =
Setting the Origin Point
The origin point of the cutter can be set whenever
the cutter is in the PAUSE state by moving the
cutter head with the navigation keys on the
control panel and then pressing the ORIGIN key.
The cutter will store a new origin point at the
location of the cutter head and use this point to
start cutting. Pressing RESET or power cycling the
cutter will clear the current origin point, reposition
the cutter head at the Home (0,0) location and
store that as the new origin point.

Control Panel

Manual = Waiting for co-ordinates from User at Control Panel
425.481.3555
Changing Speed and Pressure
You can manualy set the speed and pressure of
the cutter when you are in the LOCAL state. Use
the up and down arrows to adjust the speed and
the left and right arrows to adjust the cutting
pressure.
A typical cutting speed setting is 500, and a
typical cutting pressure setting is 100. Changing
the speed and pressure while cutting is possible.
The cutter may pause briefly and resume cutting
once the new settings have been entered.
21
www.uscutter.com
Control Panel
