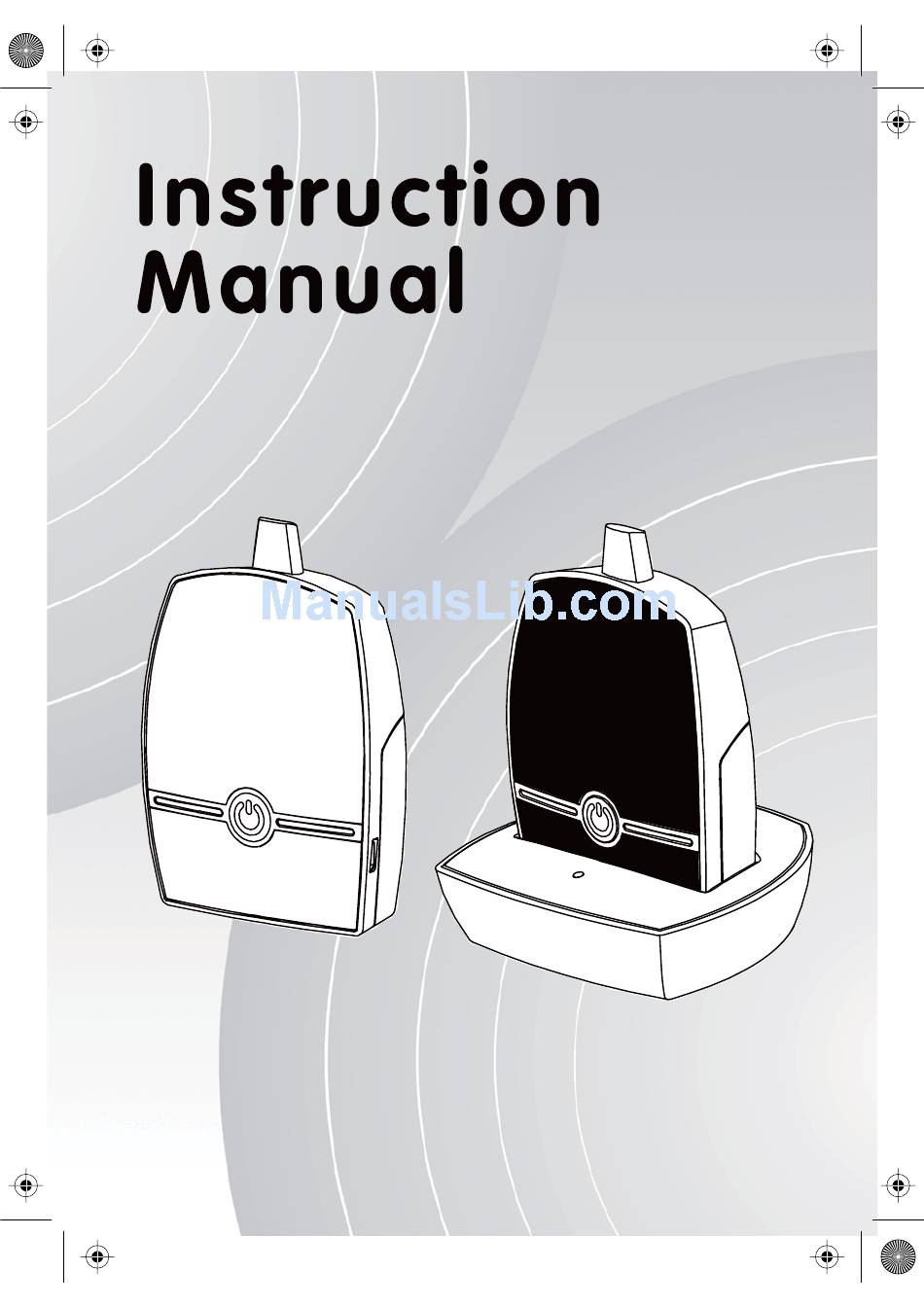

  • Page 1 BC-63_Manual_05.pdf 1 22/7/14 6:10 pm...

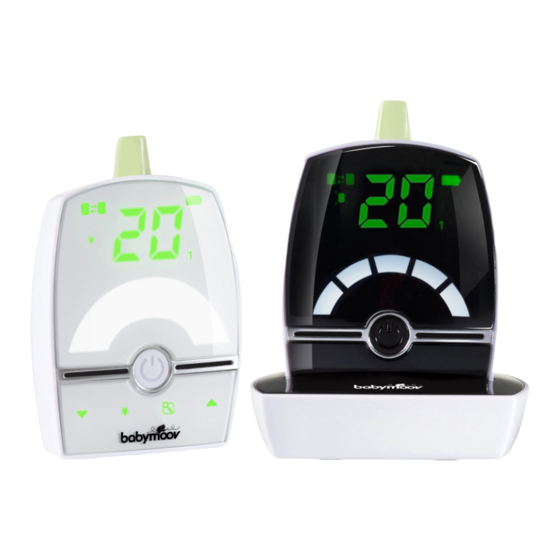

  • Page 2 BC-63_Manual_05.pdf 2 22/7/14 6:10 pm Thank you for purchasing our A014201 digital green baby monitor. Your unit has been manufactured and checked under the strictest possible quality control to ensure that each monitor leaves the factory in perfect condition. In the unlikely event you find any defects or have any problem, please contact our dealer or service center.

  • Page 3: Power Supply

    BC-63_Manual_05.pdf 3 22/7/14 6:10 pm DIGITAL TECHNOLOGY AND APRS This baby monitor employs full digital technology with zero interference. The unit can automatically select free channel or hop to free channel during communication to avoid interference from other electronic devices. In addition, thanks to the Automatic Power Reduction System (APRS) which senses the signal strength between the baby and parent unit and automatically reduces the emission power from baby unit when the two units are in close vicinity.
  • Page 4 BC-63_Manual_05.pdf 4 22/7/14 6:10 pm Operation using AC adapter The unit can be operated on AC mains using the supplied 5V AC adapter. Connect the output plug of adapter to USB port 16 , make sure the polari - ty is correct. The power supply from the battery will be cut off once the adapter’s output plug is inserted into USB port 16 .
  • Page 5 BC-63_Manual_05.pdf 5 22/7/14 6:10 pm Charging up the Lithium rechargeable battery Connect the output plug of supplied 5V AC adapter to USB port 37 of the charger stand, make sure the polarity is correct. The unit can either be in switch ON or OFF condition, place it into the charger stand.
  • Page 6 BC-63_Manual_05.pdf 6 22/7/14 6:10 pm PAIRING This process is to match the parent unit with baby unit so that they can communicate with each other while no other devices (even baby monitor of identical model) can interfere with you or receiving your signal. The baby and parent unit are already paired when they are shipped from factory.
  • Page 7 BC-63_Manual_05.pdf 7 22/7/14 6:10 pm 5. Now short press again the power ON/OFF button 1 of one BU. If pairing is successful,the on both PU and BU should change steady green while two beep sound is heard in PU with the corresponding BU number icon 33 or 34 being shown 6.Shortpress button 1 oftheremainingBU,twobeepsoundisheardinPUwith flashestwotimesandthecorrespondingBUnumbershowup.The...

  • Page 8: Controls Layout

    BC-63_Manual_05.pdf 8 22/7/14 6:10 pm CONTROLS LAYOUT BABY UNIT (BU) CHARGER STAND PARENT UNIT (PU) 18. Power ON/OFF button 1. Power ON/OFF button 2. Down touch key 19. Down touch key 3. Up touch key 20. Up touch key 4. Menu touch key 21.

  • Page 9: Operation

    BC-63_Manual_05.pdf 9 22/7/14 6:10 pm OPERATION Baby unit 1. Long press the power ON/OFF button 1 for 3 sec to switch on the unit. The power on icon 10 as well as the assigned baby unit no. 15 should light up steady green while the room temperature indicator 9 starts showing the baby’s room temperature.
  • Page 10 BC-63_Manual_05.pdf 10 22/7/14 6:10 pm to comfort his/her emotion. Touch the up/down icons 2 and 3 to adjust the volume of speaker 17 , temperature indicator 9 will change during adjustment. The higher the number, the bigger is the loudness. There are total 5 levels of loudness. When the minimum level is reached, further touch of the down icon 2 will totally mute the speaker 17 volume and the speaker mute icon...
  • Page 11 BC-63_Manual_05.pdf 11 22/7/14 6:10 pm Short touch icons 19 or 20 to make your selection, then short press button 18 to confirm. means out of range alarm function is enabled while means this function is disabled. When set to , the level of radiation from BU is reduced, however, the PU will not provide an alarm when it falls outside the communication range of BU.
  • Page 12 BC-63_Manual_05.pdf 12 22/7/14 6:10 pm c. Short touch icons 19 or 20 , set the lower temperature limit below which the unit will provide an alarm. The allowed selectable temperature range is -9 ℃ to +44 ℃ or 2 ℃ lower than the selected upper limit.
  • Page 13 BC-63_Manual_05.pdf 13 22/7/14 6:10 pm 7. If the unit is paired to work with two BU, BU no.1 always has priority. This means while the unit is listening to signal from BU no. 2, in case BU no. 1 starts transmitting, the unit will immediately switch listening to BU no.1 until it stops to transmit, then the unit will switch back listen to BU no.
  • Page 14 BC-63_Manual_05.pdf 14 22/7/14 6:10 pm 11. Whenever the baby’s room temperature falls outside the range as preset by the upper and lower temperature limits, an alarm will be heard. Depending on whether the upper or lower limit is exceeded, the corresponding icon 31 or 32 will light up and the current temperature reading start flashing in PU.

  • Page 15: Standard Accessories

    ℃ -Do not open the cabinet, no serviceable parts inside. -The A014201 should not be exposed to dripping, splashing and that no objects filled with liquids, such as vases shall be placed on it. -Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent.

  • Page 16: Troubleshooting Guide

    BC-63_Manual_05.pdf 16 22/7/14 6:10 pm TROUBLE SHOOTING GUIDE Problem Possible Causes Solution BU has no - BU is switched off - Switch on BU transmission - Mic sensitivity is too low - Adjust mic sensitivity higher - BU Battery has run down or AC - Replace with new battery or adapter improperly connected check connection...
  • Page 17 BC-63_Manual_05.pdf 16 22/7/14 6:10 pm All European Countries except Austria, Georgia, Greece, Norway, Russian, Federation, Spain, Sweden, The Netheriands, Ukaine.
  • Page 19 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
