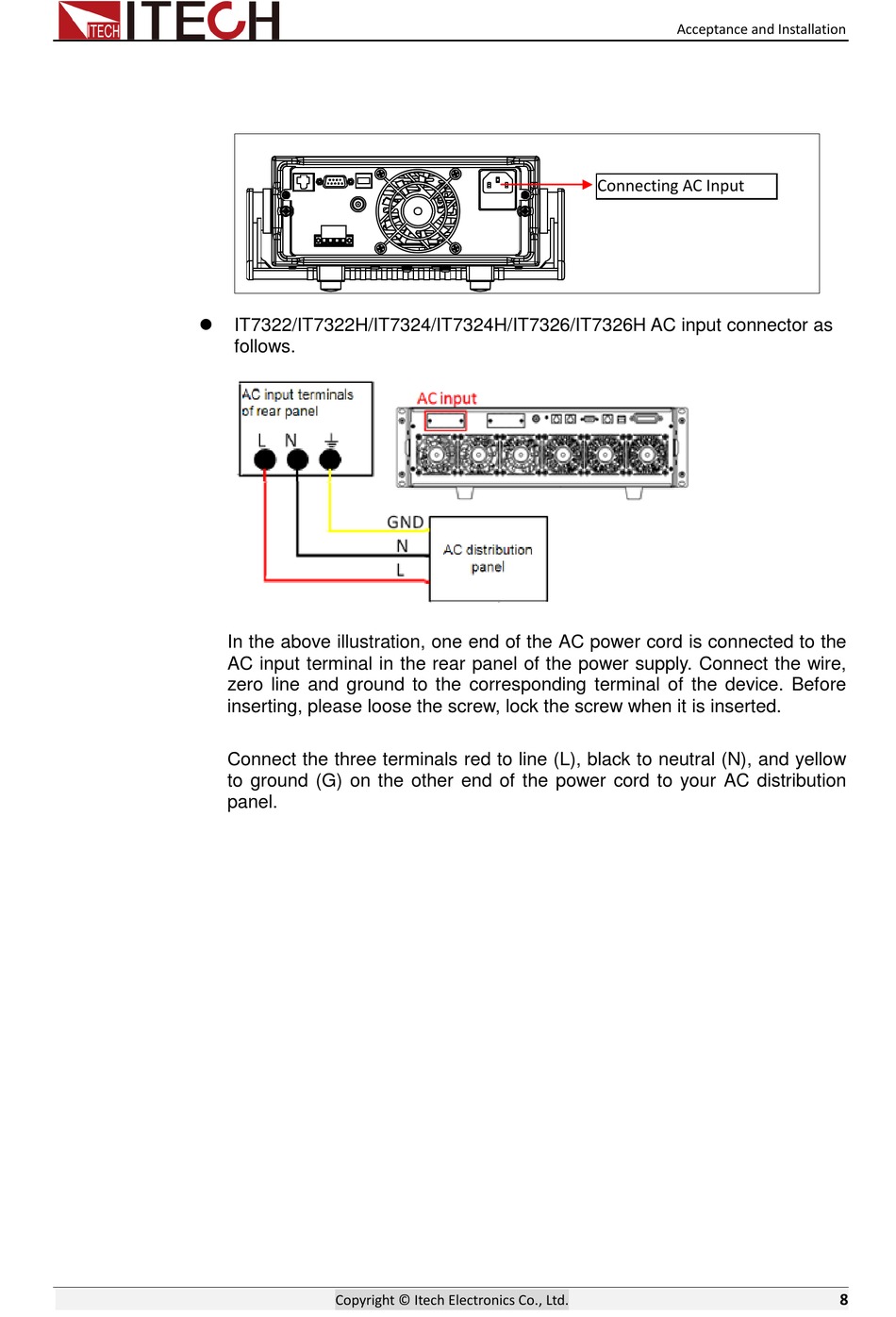

IT7322/IT7322H/IT7324/IT7324H/IT7326/IT7326H AC input connector as
follows.
In the above illustration, one end of the AC power cord is connected to the
AC input terminal in the rear panel of the power supply. Connect the wire,
zero line and ground to the corresponding terminal of the device. Before
inserting, please loose the screw, lock the screw when it is inserted.
Connect the three terminals red to line (L), black to neutral (N), and yellow
to ground (G) on the other end of the power cord to your AC distribution
panel.
Copyright © Itech Electronics Co., Ltd.
Acceptance and Installation
Connecting AC Input
8
