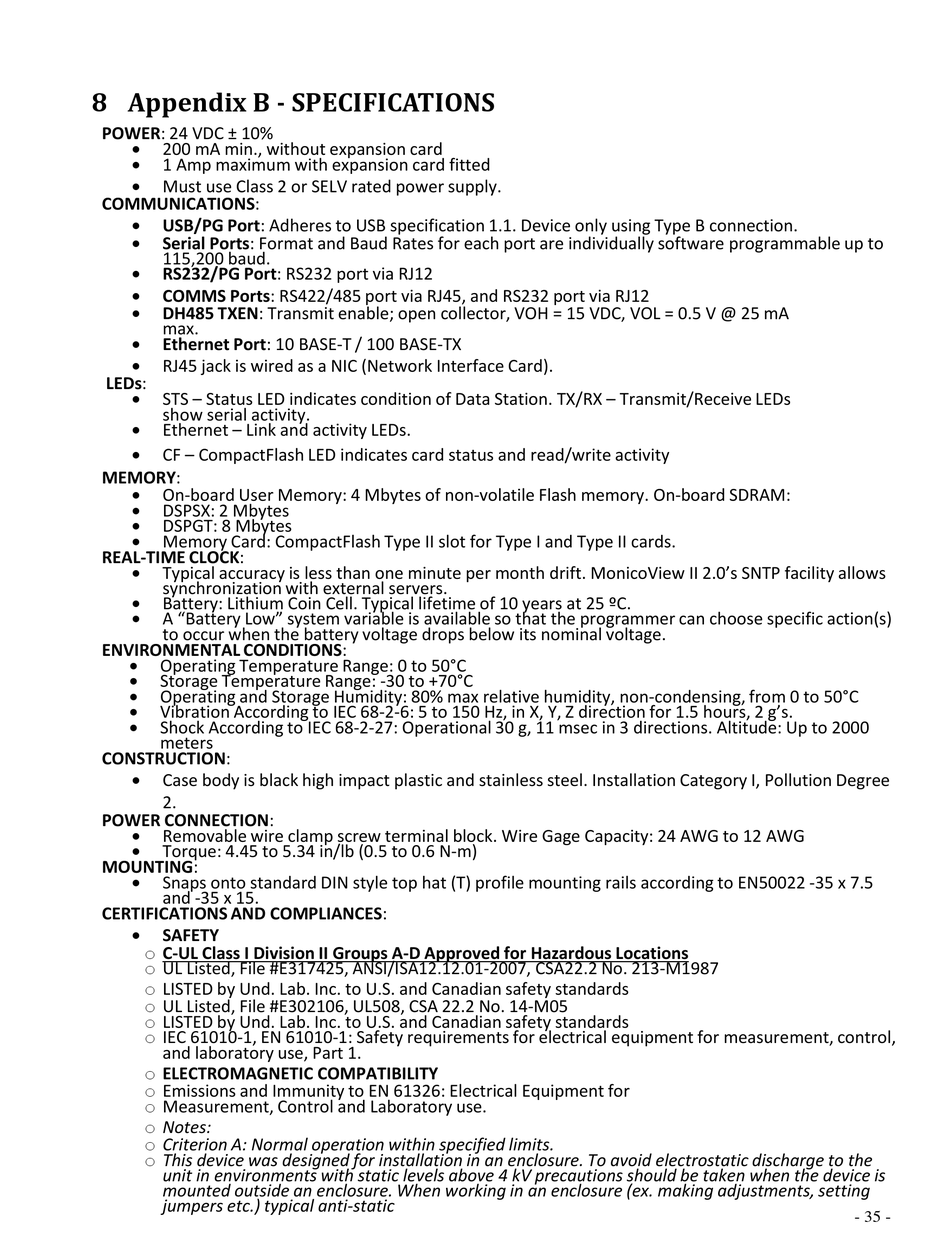

8 Appendix B - SPECIFICATIONS

POWER: 24 VDC ± 10%

200 mA min., without expansion card

1 Amp maximum with expansion card fitted

Must use Class 2 or SELV rated power supply.
COMMUNICATIONS:

USB/PG Port: Adheres to USB specification 1.1. Device only using Type B connection.

Serial Ports: Format and Baud Rates for each port are individually software programmable up to
115,200 baud.

RS232/PG Port: RS232 port via RJ12

COMMS Ports: RS422/485 port via RJ45, and RS232 port via RJ12

DH485 TXEN: Transmit enable; open collector, VOH = 15 VDC, VOL = 0.5 V @ 25 mA
max.

Ethernet Port: 10 BASE-T / 100 BASE-TX

RJ45 jack is wired as a NIC (Network Interface Card).
LEDs:

STS – Status LED indicates condition of Data Station. TX/RX – Transmit/Receive LEDs
show serial activity.

Ethernet – Link and activity LEDs.

CF – CompactFlash LED indicates card status and read/write activity
MEMORY:

On-board User Memory: 4 Mbytes of non-volatile Flash memory. On-board SDRAM:

DSPSX: 2 Mbytes

DSPGT: 8 Mbytes

Memory Card: CompactFlash Type II slot for Type I and Type II cards.
REAL-TIME CLOCK:

Typical accuracy is less than one minute per month drift. MonicoView II 2.0's SNTP facility allows
synchronization with external servers.

Battery: Lithium Coin Cell. Typical lifetime of 10 years at 25 ºC.

A "Battery Low" system variable is available so that the programmer can choose specific action(s)
to occur when the battery voltage drops below its nominal voltage.
ENVIRONMENTAL CONDITIONS:

Operating Temperature Range: 0 to 50°C

Storage Temperature Range: -30 to +70°C

Operating and Storage Humidity: 80% max relative humidity, non-condensing, from 0 to 50°C

Vibration According to IEC 68-2-6: 5 to 150 Hz, in X, Y, Z direction for 1.5 hours, 2 g's.

Shock According to IEC 68-2-27: Operational 30 g, 11 msec in 3 directions. Altitude: Up to 2000
meters
CONSTRUCTION:

Case body is black high impact plastic and stainless steel. Installation Category I, Pollution Degree
2.
POWER CONNECTION:

Removable wire clamp screw terminal block. Wire Gage Capacity: 24 AWG to 12 AWG

Torque: 4.45 to 5.34 in/lb (0.5 to 0.6 N-m)
MOUNTING:

Snaps onto standard DIN style top hat (T) profile mounting rails according to EN50022 -35 x 7.5
and -35 x 15.
CERTIFICATIONS AND COMPLIANCES:

SAFETY
o C-UL Class I Division II Groups A-D Approved for Hazardous Locations
o UL Listed, File #E317425, ANSI/ISA12.12.01-2007, CSA22.2 No. 213-M1987
o LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards
o UL Listed, File #E302106, UL508, CSA 22.2 No. 14-M05
o LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards
o IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment for measurement, control,
and laboratory use, Part 1.
o ELECTROMAGNETIC COMPATIBILITY
o Emissions and Immunity to EN 61326: Electrical Equipment for
o Measurement, Control and Laboratory use.
o Notes:
o Criterion A: Normal operation within specified limits.
o This device was designed for installation in an enclosure. To avoid electrostatic discharge to the
unit in environments with static levels above 4 kV precautions should be taken when the device is
mounted outside an enclosure. When working in an enclosure (ex. making adjustments, setting
jumpers etc.) typical anti-static
- 35 -
