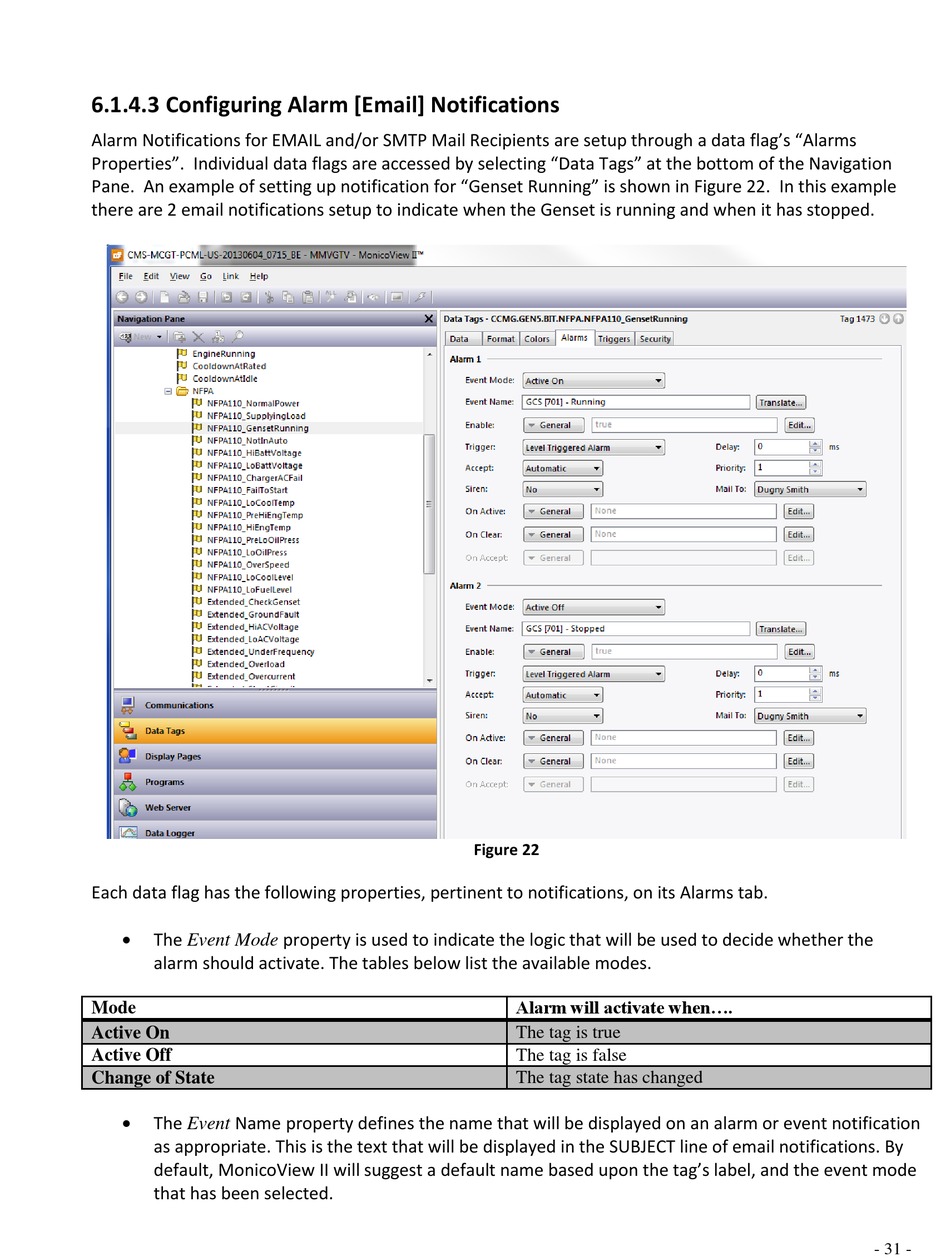

Monico CDL Gateway Installation And Operation Manual page 31

6.1.4.3 Configuring Alarm [Email] Notifications
Alarm Notifications for EMAIL and/or SMTP Mail Recipients are setup through a data flag's "Alarms
Properties". Individual data flags are accessed by selecting "Data Tags" at the bottom of the Navigation
Pane. An example of setting up notification for "Genset Running" is shown in Figure 22. In this example
there are 2 email notifications setup to indicate when the Genset is running and when it has stopped.
Each data flag has the following properties, pertinent to notifications, on its Alarms tab.

The Event Mode property is used to indicate the logic that will be used to decide whether the
alarm should activate. The tables below list the available modes.
Mode
Active On
Active Off
Change of State

The Event Name property defines the name that will be displayed on an alarm or event notification
as appropriate. This is the text that will be displayed in the SUBJECT line of email notifications. By
default, MonicoView II will suggest a default name based upon the tag's label, and the event mode
that has been selected.
Figure 22
Alarm will activate when....
The tag is true
The tag is false
The tag state has changed
- 31 -
