L8542644
12/2011 rev 4
CORE
UNIONE NAZIONALE COSTRUTTORI
AUTOMATISMI PER CANCELLI, PORTE
SERRANDE ED AFFINI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CORE and is the answer not in the manual?

Questions and answers

Related Manuals for Beninca CORE

Summary of Contents for Beninca CORE

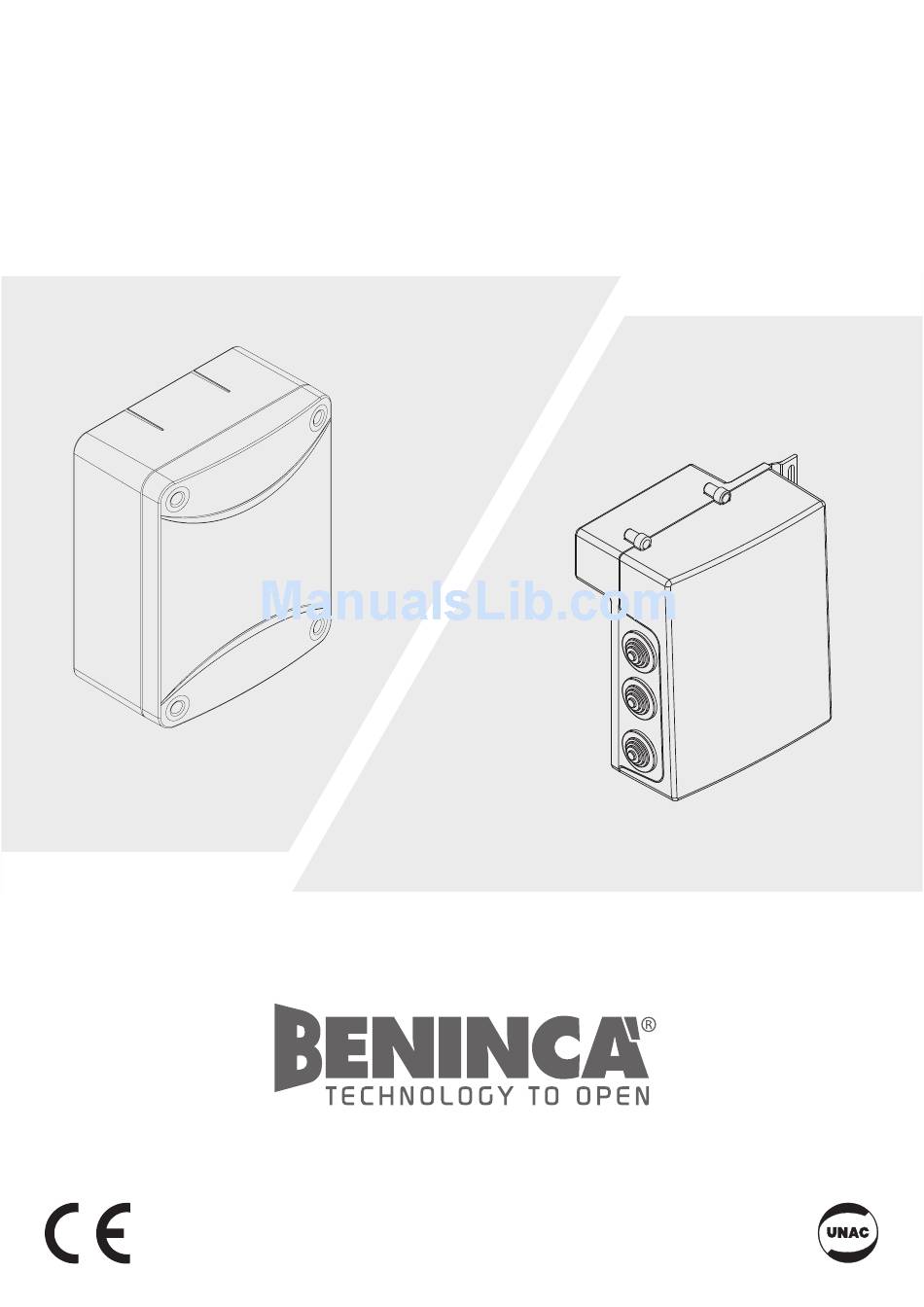

  • Page 1 L8542644 12/2011 rev 4 CORE UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
  • Page 2 F3 CORE 230: F6,3A F3 CORE 115: F10A F2: F315 mA ENC1 N GND 24Vac 3W max LAMP 115/230Vac 40W max...

  • Page 3: Specifications

    The electrical installation and the operating logic must comply SPECIFICATIONS Mains power supply 230 VAC 50/60 Hz (115 VAC 50/60Hz CORE 115) Output, Motor 1 motor, 230 VAC (115VAC CORE 115) Motor maximum power 750 W Output, power supply of accessories 24VDC 200mA max.
  • Page 4 Output, connection to Flashing light N-BLINK LAMP CORE: 230 Vac 40W max. CORE 115V: 115 Vac 40W max. Input, OPENING limit switch (Normally Closed contact) Input, CLOSING limit switch (Normally Closed contact) Input, connection to safety devices, Normally Closed (N.C.) contact (e.g.
  • Page 5 TRIMMER FUNCTIONS It allows the maximum duration of opening and closing. It must be preset approx. 4s more with respect to the actual stroke time of the system. The adjustment ranges from 3s to 180s maximum. If installed, the Encoder provides the function of anti-crash sensitivity adjustment. It allows to adjust the automatic closure time.
  • Page 6 The contemporary pressure of OPEN/CLOSE stops the motor. RADIO SELF-LEARNING (DIP1:OFF) The CORE control unit is equipped with a built-in radio module for the fixed or roll-on code of remote controls, with 433.92MHz frequency. To use a remote control, it is first necessary to store its code in memory. The memorisation procedure is described hereunder.
  • Page 7 The transmitters are memorised on an EPROM memory (U2), which can be extracted from the control unit and inserted in a new CORE control unit should a replacement is required. For safety reasons, the transmitters can be stored in memory during the opening/closing of the motor.
