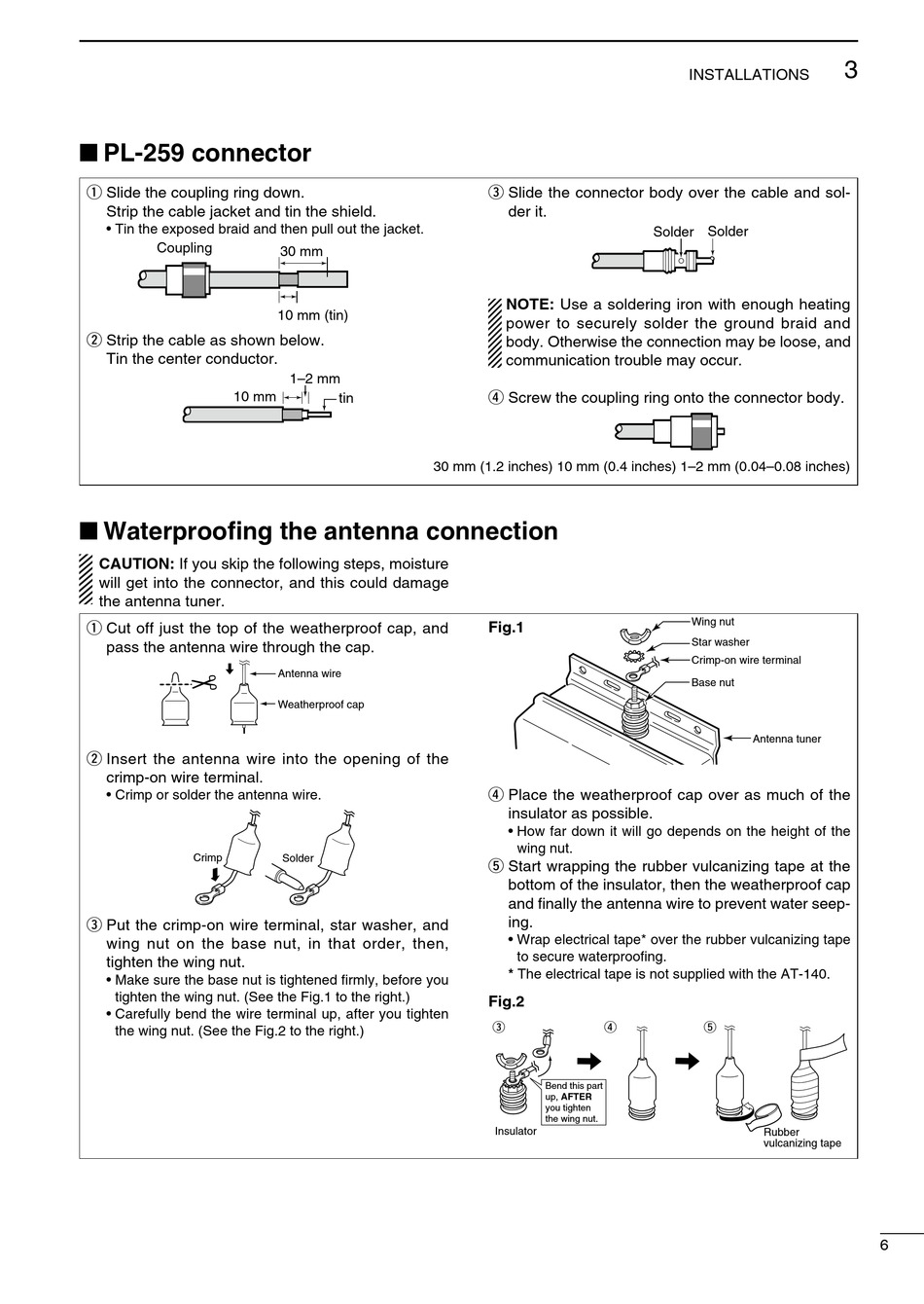

PL-259 connector

■
q Slide the coupling ring down.
Strip the cable jacket and tin the shield.
• Tin the exposed braid and then pull out the jacket.
Coupling
w Strip the cable as shown below.
Tin the center conductor.
10 mm

Waterproofing the antenna connection

■
CAUTION: If you skip the following steps, moisture
will get into the connector, and this could damage
the antenna tuner.
q Cut off just the top of the weatherproof cap, and
pass the antenna wire through the cap.
w Insert the antenna wire into the opening of the
crimp-on wire terminal.
• Crimp or solder the antenna wire.
Crimp
e Put the crimp-on wire terminal, star washer, and
wing nut on the base nut, in that order, then,
tighten the wing nut.
• Make sure the base nut is tightened firmly, before you
tighten the wing nut. (See the Fig.1 to the right.)
• Carefully bend the wire terminal up, after you tighten
the wing nut. (See the Fig.2 to the right.)
30 mm
10 mm (tin)
1–2 mm
tin
30 mm (1.2 inches) 10 mm (0.4 inches) 1–2 mm (0.04–0.08 inches)
Antenna wire
Weatherproof cap
Solder
e Slide the connector body over the cable and sol-
der it.
Solder Solder
NOTE: Use a soldering iron with enough heating
power to securely solder the ground braid and
body. Otherwise the connection may be loose, and
communication trouble may occur.
r Screw the coupling ring onto the connector body.
Fig.1
r Place the weatherproof cap over as much of the
insulator as possible.
• How far down it will go depends on the height of the
wing nut.
t Start wrapping the rubber vulcanizing tape at the
bottom of the insulator, then the weatherproof cap
and finally the antenna wire to prevent water seep-
ing.
• Wrap electrical tape* over the rubber vulcanizing tape
to secure waterproofing.
* The electrical tape is not supplied with the AT-140.
Fig.2
e r
Bend this part
up, AFTER
you tighten
the wing nut.
Insulator
