SPL Director User Manual page 2

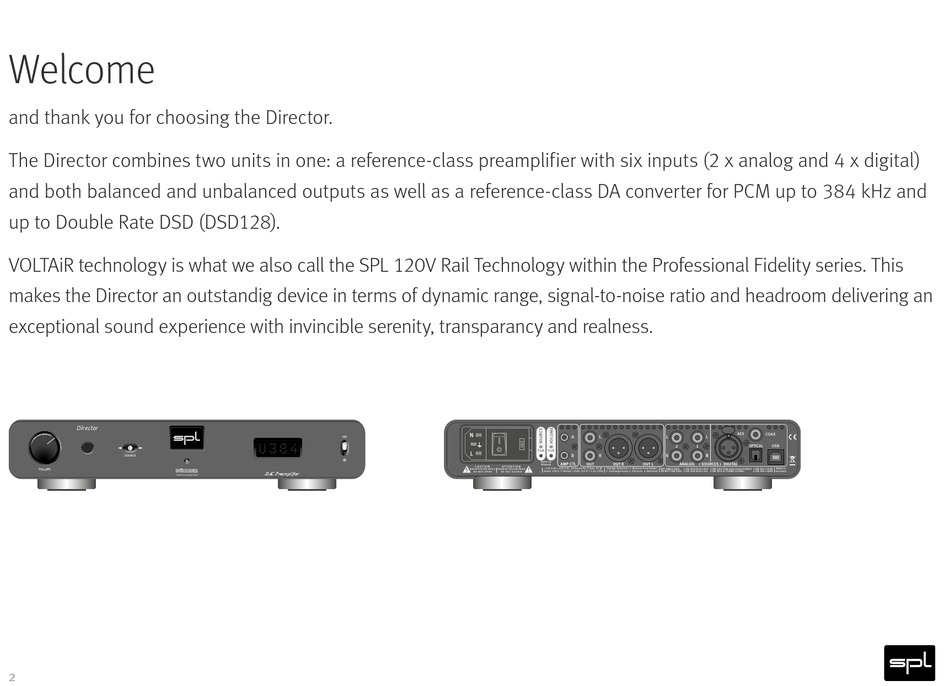

Welcome
and thank you for choosing the Director.
The Director combines two units in one: a reference-class preamplifier with six inputs (2 x analog and 4 x digital)
and both balanced and unbalanced outputs as well as a reference-class DA converter for PCM up to 384 kHz and
up to Double Rate DSD (DSD128).
VOLTAiR technology is what we also call the SPL 120V Rail Technology within the Professional Fidelity series. This
makes the Director an outstandig device in terms of dynamic range, signal-to-noise ratio and headroom delivering an
exceptional sound experience with invincible serenity, transparancy and realness.
Director
SOURCE
VOLTAiR
120V DC Audio Rail
2
ON
DAC Preamplifier
A L
IR IR
IR
PGM PGM
B
R
Refer to
AMP CTL OUT OUT R OUT L
Manual
C A U T I O N AT T E N T I O N
~115 V AC/~230 V AC, 50 Hz/60 Hz, P max. 45 W Voltage Selection: 1. Remove Fuse Holder
RISK OF ELECTRIC SHOCK RISQUE DE CHOC ÉLECTRIQUE
Fuses: 230 V: T 500mA L 250V, 115 V: T 1 A L 250V 2. Exchange Fuses 3. Flip Over 4. Reinstall
D O N O T O P E N N E P A S O U V R I R
I F R B
COAX
L L
2 1 OPTICAL
R
R
ANALOG < SOURCES > DIGITAL
Made in
DIP SWITCHES 1 ON: RCA Direct Out 3 ON: Zero flag auto-mute enabled 5 ON: Ref +15dB
ON BOTTOM SIDE: 2 ON: XLR Direct Out 4 ON: RCA In -10dBV to 0dBu 6 ON: Ref +18dB Germany
