Summary of Contents for E-T-A ControlPlex CPC10PB

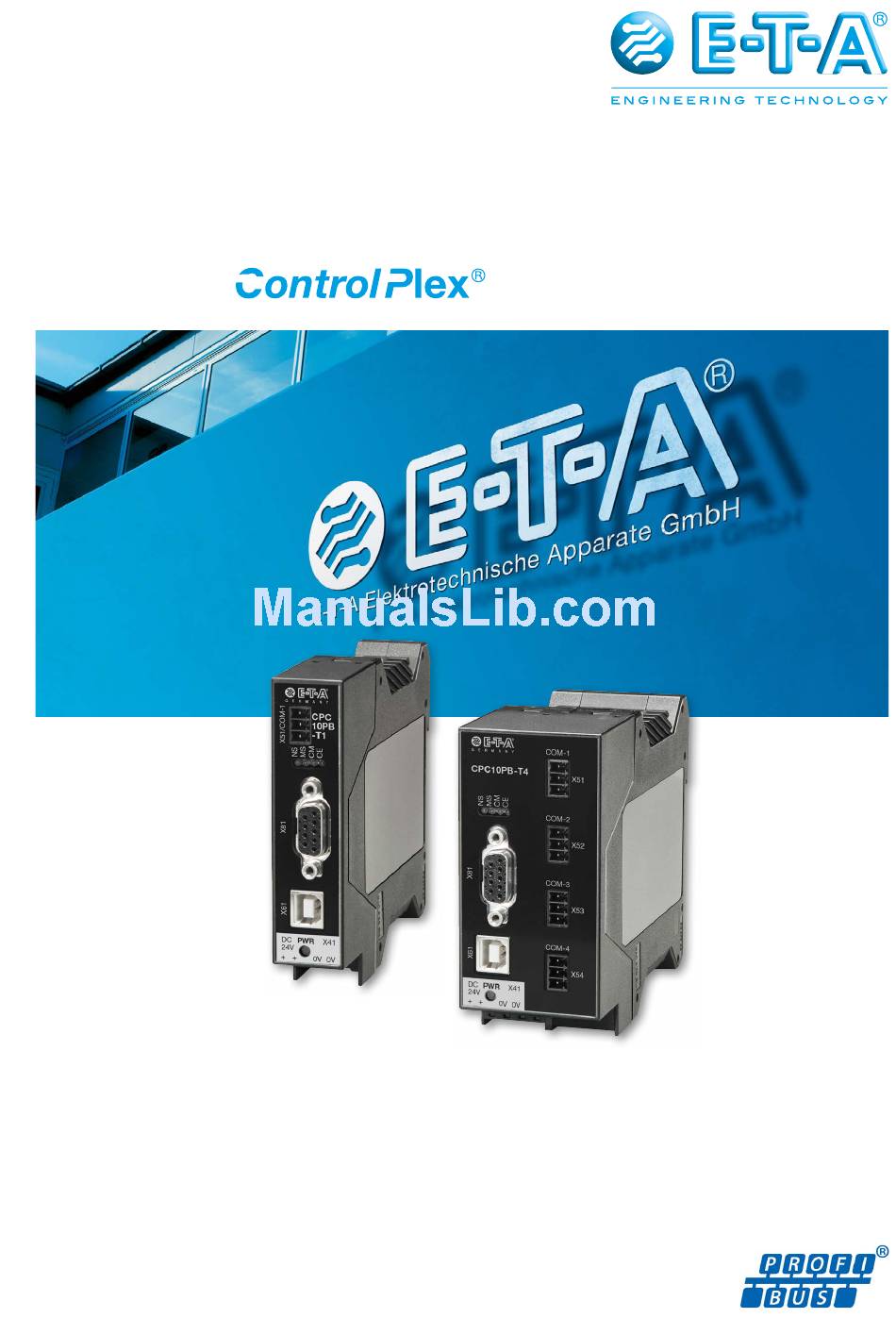

- Page 1 Instruction Manual Controller CPC10PB...
-
Page 2: Table Of Contents
Contents General information .......................... 4 Safety instructions ........................4 Qualified personnel ........................4 Use ............................. 4 Delivery state ..........................4 General description ........................... 5 Design of the entire system ....................... 6 Dimensions of version CPC10PB-T1 ..................7 Dimensions of version CPC10PB-T4 ..................7 Status indication and terminals .................... - Page 3 Non-cyclical data ..........................19 Configuration data CPC10PB controller ..................20 Configuration data slot for circuit protector ................21 Device information CPC10PB controller ..................22 8.3.1 Device type ........................22 8.3.2 Serial number ........................22 8.3.3 Hardware version ......................23 8.3.4 Software version ......................23 Device information circuit protector ...................
-
Page 4: General Information
General information Safety instructions This manual points out possible danger for your personal safety and gives instruction how to avoid property damage. The following safety symbols are used to draw the reader's attention to the safety instructions included in this manual. Danger! There is a threat to life or health unless the following safety measures are observed. -
Page 5: General Description
The saved parameters will be used for this purpose. The bus-capable power distribution system ControlPlex offers the well-known E-T-A quality and reliability ® with regard to overcurrent protection in combination with the innovative functions on the score of automation... -
Page 6: Design Of The Entire System
The interface to the up to four power distribution boards SVS201-PWR-xx is realised with local bus defined specially in-house at E-T-A called ELBus® . It transmits all cyclical and non-cyclical data in a cycle time of 230 - 730 milliseconds (depending on the version of the up to four power distribution boards SVS201-PWR-xx). -
Page 7: Dimensions Of Version Cpc10Pb-T1
Dimensions of version CPC10PB-T1 DIN rail EN 60715-35x7,5 (not included) 22,6 114,5 10PB 24 V 0 V 0 V Provide space for connectors and cables fig. 2: CPC10PB-T1 (1-Port) Dimensions of version CPC10PB-T4 DIN rail EN 60715-35x7,5 (not included) 114,5 45,2 COM-1 CPC10PB-T4... -
Page 8: Status Indication And Terminals
Status indication and terminals Address rotary switch LED NS COM-1 LED MS CPC10PB-T4 10PB LED CM LED CE COM-2 X51, X52, bus interface X53, X54 PROFIBUS-DP ELBus®- COM-3 connectors USB service interface COM-4 LED PWR 24 V 24 V 0 V 0 V 0 V 0 V voltage supply DC 24 V Bus Controller... -
Page 9: Usb Service Interface, Terminals X61
3.4.3 USB service interface, terminals X61 The USB interface serves for connection of the service computer. By means of the available user software ControlPlex®Views it is possible to import the measuring values of the individual circuit protectors, to change parameters and to switch the devices on or off. The connection is realised by means of USB-2.0 type B. The length must be less than 3 m. -
Page 10: Mounting And Installation
Mounting and installation Mounting of the system The preferred mounting position of the ControlPlex® system is horizontal. fig. 6: Installation drawing Wiring and connecting the modules COM-1 CPC10PB-T4 10PB COM-2 COM-3 COM-4 24 V 24 V 0 V 0 V 0 V 0 V bus controller bus controller... -
Page 11: Elbus® Connector Sockets To Power Distribution System (-X51, -X52, -X53, -X54)
4.2.2 ELBus® connector sockets to power distribution system (-X51, -X52, -X53, -X54) 1. Data line ELBus® ELB 2. Supply voltage ELBus® + 24 V 3. Supply voltage ELBus® GND fig. 8: Terminals of the ELBus® connectors COM-1: terminal for first power distribution board SVS201-PWR-xx Cable length: max. -
Page 12: Usb Service And Maintenance Interface (-X61)
4.2.3 USB service and maintenance interface (-X61) Connection to a PC for communication with the user software ControlPlex®Views Type: USB-2.0 Type B Cable length: max. 2.5 m 4.2.4 PROFIBUS-DP interface (-X81) Connection to bus system PROFINET-DP Type: Connector 9-pole SUB-D When wiring and connecting to the bus system PROFIBUS-DP the installation and wiring regulations of the PROFIBUS-DP User Organisation (PNO) have to be observed. -
Page 13: Operating Mode: Slave Mode
Operating mode: Slave mode In this operating mode the bus controller CPC10 is involved in a PROFIBUS-DP system. Communication to the bus controller CPC10 works faultlessly and the controller can be addressed and controlled by the superordinate control unit. The behaviour of the bus controller with simultaneous use of a field bus interface and the USB service and maintenance interface can be determined by means of the configuration of the device in the superordinate control unit. -
Page 14: Basic Functions Of The Entire System
Basic functions of the entire system Internal cycle times The cycle time of the system depends on the number of data to be transmitted between the bus controller CPC10 as well as the number of slots intended on the power distribution system for the electronic circuit protectors ESX50D-S. -
Page 15: Communication Via The Usb Service Interface
For parameterisation of the individual electronic circuit protectors the corresponding user software ControlPlex®Views is available for the USB service interface. This software is available for download from the E-T-A website and can be installed on a Windows® computer. The user software is described separately in another manual. -
Page 16: Module I/O Data Cpc10Pb Device
Module I/O data CPC10PB device The 2 bytes input data contain the following global error and diagnostic messages. This module does not contain any output data. Value range: 0 – 65535 Data length: 2 byte (unsigned integer) Byte[0] Low Bit 7 Bit 6 Bit 5 Bit 4... -
Page 17: Status Circuit Protector
7.2.1 Status circuit protector Design of the input byte per circuit protector slot is as follows (status circuit protector): Value range: 0 – 255 Data length: 1 byte (unsigned character) Byte[0] low Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1... -
Page 18: Measuring Values Circuit Protector
7.2.3 Measuring values circuit protector The measuring values contain the data of load current and load voltage of a circuit protector. The sequence of the measuring values is load current (2 bytes), followed by load voltage (2 bytes) Load current circuit protector Design of the input bytes per circuit protector slot is as follows (measuring value load current): Value range: 0 –... -
Page 19: Non-Cyclical Data
Non-cyclical data Non-cyclical PROFIBUS-DP services allow exchange of more data with the CPC10PB controller and the circuit protectors. The non-cyclical access also enables direct addressing of a circuit protector on a SVS201-PWR board. Addressing of the data is by indication of the hardware identifier and of the index. With ControlPlex®... -
Page 20: Configuration Data Cpc10Pb Controller
Configuration data CPC10PB controller These bytes hold the configuration data for the CPC10PB controller. 6 bytes are exchanged non-cyclically as configuration data for the CPC10PB controller. Currently only the first byte holds configuration options. The other bytes presently serve as placeholders for possible later extensions and are not evaluated. -
Page 21: Configuration Data Slot For Circuit Protector
Configuration data slot for circuit protector These bytes hold configuration data for the slots of the circuit protectors. 6 bytes are exchanged non-cyclically as configuration data for the slots. The first byte holds the device type which shall be plugged into the corresponding slot. The second byte holds information about whether the slot is released or locked out. -
Page 22: Device Information Cpc10Pb Controller
Byte[2] – Byte[5] do not contain information. Value range: Default value: Data length: 4 bytes (unsigned character) Byte[2] – Byte[5] Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 description Value reserve fig. 22: Configuration data reserve bytes Device information CPC10PB controller 8.3.1 Device type... -
Page 23: Hardware Version
8.3.3 Hardware version Byte[5] - Byte[6] contain the hardware version of the CPC10PB controller. The hardware version is made available in whole numbers. Value range: 0…65535 Error: Hardware version not available (65535) Data length: 2 byte (unsigned integer) Byte[5] (LOW) Bit 7 Bit 6 Bit 5 Bit 4... -
Page 24: Device Information Circuit Protector
Device information circuit protector 8.4.1 Device type Byte[0] holds information on the device type of the circuit protector. Value range: 80-81-/ error: Device type not available (255) / data length: 1 byte (unsigned character) Byte[0 ] Bit 7 Bit 6 Bit 5 Bit 4 Bit 3... -
Page 25: Software Version
8.4.4 Software version Byte[7] - Byte[8] contain the software version of the circuit protector The software version is made available BCD coded. It is coded as follows: software version = X.Y.Z High Byte (Bit 12 – Bit 15) = 0 High Byte (Bit 8 –... -
Page 26: Switch-On Behaviour
8.5.2 Switch-on behaviour This parameter in byte[1] determines the behaviour of the load output of the ESX50D after connection of the supply voltage. Value range: 161-163 Default value: 161 (condition before power off) Data length: 1 byte (unsigned character) Byte[1 ] Bit 7 Bit 6 Bit 5... -
Page 27: Trip Time At Short Circuit
8.5.5 Trip time at short circuit The parameter in byte[4] determines after which perod in the short circuit range the load output of the ESX50D will be disconnected. Value range: 50 ms – 1,000 ms (whole numbers in 10 ms steps) Default value: 100 ms Data length:... -
Page 28: Hysteresis Of The Limit Value
8.5.8 Hysteresis of the limit value This parameter (byte[7]) determines the hysteresis of the limit value current. Value range: 5 % - 20 % (whole numbers) Default value: Data length: 1 byte (unsigned character) Byte[7 ] Bit 7 Bit 6 Bit 5 Bit 4 Bit 3... -
Page 29: Event Messages Circuit Protector
Event messages circuit protector This byte contains information on events of the circuit protector. Value range: 0 – 255 Data length: 1 byte (unsigned character) Byte[0 ] Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 description value... -
Page 30: Trip Counter
8.8.2 Trip counter Byte[1] - byte[2] contain the trip counter of the circuit protector Value range: 0…65535 Data length: 2 byte (unsigned integer) Byte[1] (LOW) Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 description value Byte[2] (HIGH) Bit 15... -
Page 31: Temperature
8.8.5 Temperature Byte[6] - byte[7] contain the internal device temperature of the circuit protector. Value range: 0 – 65535 Data length: 2 bytes (integer) Byte[6] (LOW) Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 description value... -
Page 32: Appendix
Appendix List of pictures fig. 1: System overview ........................... 6 fig. 2: CPC10PB-T1 (1-Port) ..........................7 fig. 3: CPC10PB-T4 (4-Port) ..........................7 fig. 4: Status indication and terminals CPC10PB-T4 ..................8 fig. 5: ELBus® connection ..........................8 fig. 6: Installation drawing ..........................10 fig. -
Page 33: Technical Data
fig. 40: Result messages circuit protector ......................29 fig. 41: Diagnosis circuit protector - error memory ..................29 fig. 42: Diagnosis circuit protector - trip counter ...................30 fig. 43: Diagnosis circuit protector - trip reason .....................30 fig. 44: Diagnosis circuit protector - operating voltage ..................30 fig. - Page 34 E-T-A Elektrotechnische Apparate GmbH Bedienungsanleitung/Instruction manual CPC10PB-Tx-xxx (D) Industriestraße 2-8 . 90518 ALTDORF Bestell-Nr. / Ref. number Y31191401 - Index: a GERMANY Issue 01/2015 Phone +49 9187 10-0 . Fax 09187 10-397 E-Mail: info@e-t-a.de . ·www.e-t-a.de Alle Rechte vorbehalten / All rights reserved...
