Page 1: User Manual
AXIS Q35 Series AXIS Q3517-LV Network Camera AXIS Q3517-LVE Network Camera User Manual... -
Page 2: Table Of Contents
AXIS Q35 Series Table of Contents Solution overview ......... . . -
Page 3: Solution Overview
AXIS Q35 Series Solution overview Solution overview... -
Page 4: Product Overview

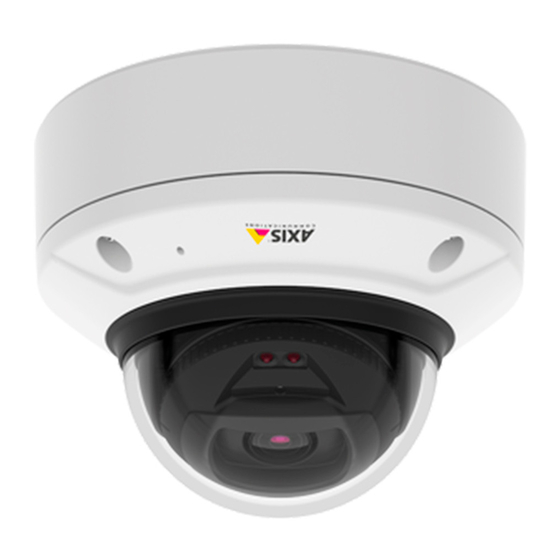

AXIS Q35 Series Product overview Product overview AXIS Q3517-LV Network connector Control button I/O connector Audio out Audio in DC connector SD card slot Status LED (2x) Function button 10 IR LED (2x) AXIS Q3517-LVE Network connector Control button I/O connector... - Page 5 AXIS Q35 Series Product overview DC connector SD card slot Status LED (2x) Function button 10 Heater 11 IR LED (2x) CAUTION The heater may be hot.
-
Page 6: Setup
HTTPS connection before resetting the passwords. The device password is the primary protection for the data and services. Axis’ devices do not impose a password policy as devices may be used in various types of installations, but to protect your data do the following: •... -
Page 7: About The Product's Built-In Help
Image quality About capture modes Capture mode defines the maximum frame rate available in the Axis product. Depending on which capture mode you select, you may not be able to use WDR. A capture mode consists of a resolution and the corresponding frame rate available in the product. The capture mode setting affects the camera’s field of view and aspect ratio. - Page 8 AXIS Q35 Series Setup About remote focus and zoom The remote focus and zoom functionality allows you to make focus and zoom adjustments to your camera from a computer. It is a convenient way to ensure that the scene’s focus, viewing angle and resolution are optimized without having to visit the camera’s installation location.
- Page 9 AXIS Q35 Series Setup 1. Go to Settings > Image > Image correction. 2. Enable Straighten image. How to hide parts of the image with privacy masks If you want to hide parts of the image due to privacy reasons, use one or several privacy masks.
- Page 10 AXIS Q35 Series Setup How to select exposure mode There are several exposure mode options in the camera that adjusts aperture, shutter speed, and gain to improve image quality for specific surveillance scenes. Go to Settings > Image > Exposure and select between the following exposure modes: •...
-
Page 11: Overlays
Image with WDR. Note If you use WDR, you may experience some WDR artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr Overlays About overlays Overlays are superimposed over the video stream. They are used to provide extra information during recordings, such as a timestamp, or during product installation and configuration. -
Page 12: Streaming And Storage
H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard. -
Page 13: Events
4. Go to Settings > System > Events and add an action rule. 5. Type a name for the action rule. 6. From the list of triggers, select Applications and then select AXIS Video Motion Detection (VMD). 7. From the list of actions, select Record video. - Page 14 AXIS Q35 Series Setup 9. Set the pre-trigger time to 5 seconds. 10. Set the post-trigger time to 60 seconds. 11. Select SD card from the list of storage options. 12. Click Ok. How to detect tampering with input signal This example explains how to trigger an alarm when the input signal has been cut or short-circuited.
-
Page 15: Applications
Applications About applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com Note •... -
Page 16: Troubleshooting
To find the latest firmware and the release notes, go to axis.com/support/firmware 1. Download the latest firmware file to your computer, available free of charge at axis.com/support/firmware... -
Page 17: Technical Issues, Clues And Solutions
Axis product. Check all cabling and reinstall the product. Possible IP address conflict The static IP address in the Axis product is used before the DHCP server sets a dynamic address. with another device on the... -
Page 18: Performance Considerations
Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. -
Page 19: Specifications
AXIS Q35 Series Specifications Specifications To find the latest version of the product’s datasheet, go to the product page on axis.com and locate Support & Documentation. LED Indicators Note • The Status LED can be configured to flash while an event is active. -
Page 20: Connectors
Connectors Network connector RJ45 Ethernet connector with Power over Ethernet (PoE). Audio connector The Axis product has the following audio connectors: • Audio in (pink) – 3.5 mm input for a mono microphone, or a line-in mono signal. • Audio out (green) – 3.5 mm output for audio (line level) that can be connected to a public address (PA) system or an active speaker with a built-in amplifier. - Page 21 AXIS Q35 Series Specifications Function Notes Specifications DC ground 0 V DC 0 V DC (-) DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 50 mA 3–4...
- Page 22 User Manual Ver. M1.10 AXIS Q35 Series Date: October 2017 © Axis Communications AB, 2017 Part No. 1719114...
