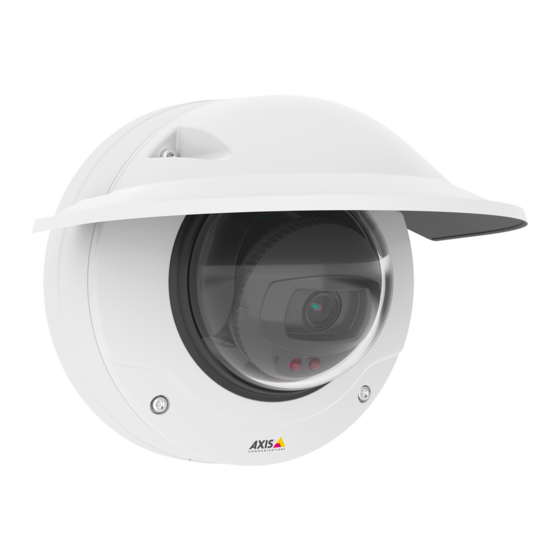

- Page 1 AXIS Q35 Series Repainting Instructions...
-
Page 2: Impact On Warranty
Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment. -
Page 3: How To Repaint The Product
Clean the parts properly to remove oil, grease and dust. For more information on the materials used in the product, see its datasheet at www.axis.com Powder coated parts - Using fine sandpaper, remove the original powder coating down to the base material and clean the parts before painting, or use a primer. - Page 4 AXIS Q35 Series How to repaint the product Disassembly Chassis Dome assembly Unit casing Mounting bracket Weathershield 1. Remove the dome assembly. 2. Remove the unit casing. 3. Outdoor camera: Remove the screws from the weathershield.
- Page 5 AXIS Q35 Series How to repaint the product Side entry lid Spring clip Mounting bracket 4. Remove the spring clip and the side entry lid from the mounting bracket.
- Page 6 AXIS Q35 Series How to repaint the product Dome Gasket Top cover Dome Dome holder 1. Remove the dome holder, the dome, and the gasket from the top cover. 2. Remove the screws from the top cover. Masking Top cover 1.
- Page 7 AXIS Q35 Series How to repaint the product 5. Mask the bottom of the unit casing. Weathershield 6. Mask all screw holes. 7. Mask the underside of the weathershield. NOTICE TICE TICE Do not repaint the underside of the weathershield. The underside is coated to absorb IR light.
- Page 8 AXIS Q35 Series How to repaint the product 3. Push the dome into the top cover. 4. Assemble the dome holder, and cross-tighten the screws with 2.6 N m (1.9 lb ft).
- Page 9 Repainting Instructions Ver. M1.12 AXIS Q35 Series Date: April 2018 © Axis Communications AB, 2018 Part No. T10114179...
