FANATEC CSL Elite Racing Wheel Manual page 21

The button 'Steering Wheel RevLEDs test' starts a signal flow on the LED bar
on the steering wheel top side and activates them to test proper functionality
of each single LED. This is only available for steering wheels which have Rev-
LEDs, refer to the product description of the used steering wheel. The CSL Elite
Steering Wheel has RevLEDs integrated in the rim center stripe.
The button 'Vibration Test' starts a vibration signal to activate the vibration
motors inside the Fanatec
wheels which have vibration motors inside, refer to the product description of
the used steering wheel. Not applicable for the CSL Elite Steering Wheel.
ClubSport Shifter or ClubSport Shifter SQ. Therefore, the H-pattern shifter
must be calibrated. See chapter 'Hotkeys'
details
21
steering wheels. This is only available for steering
®

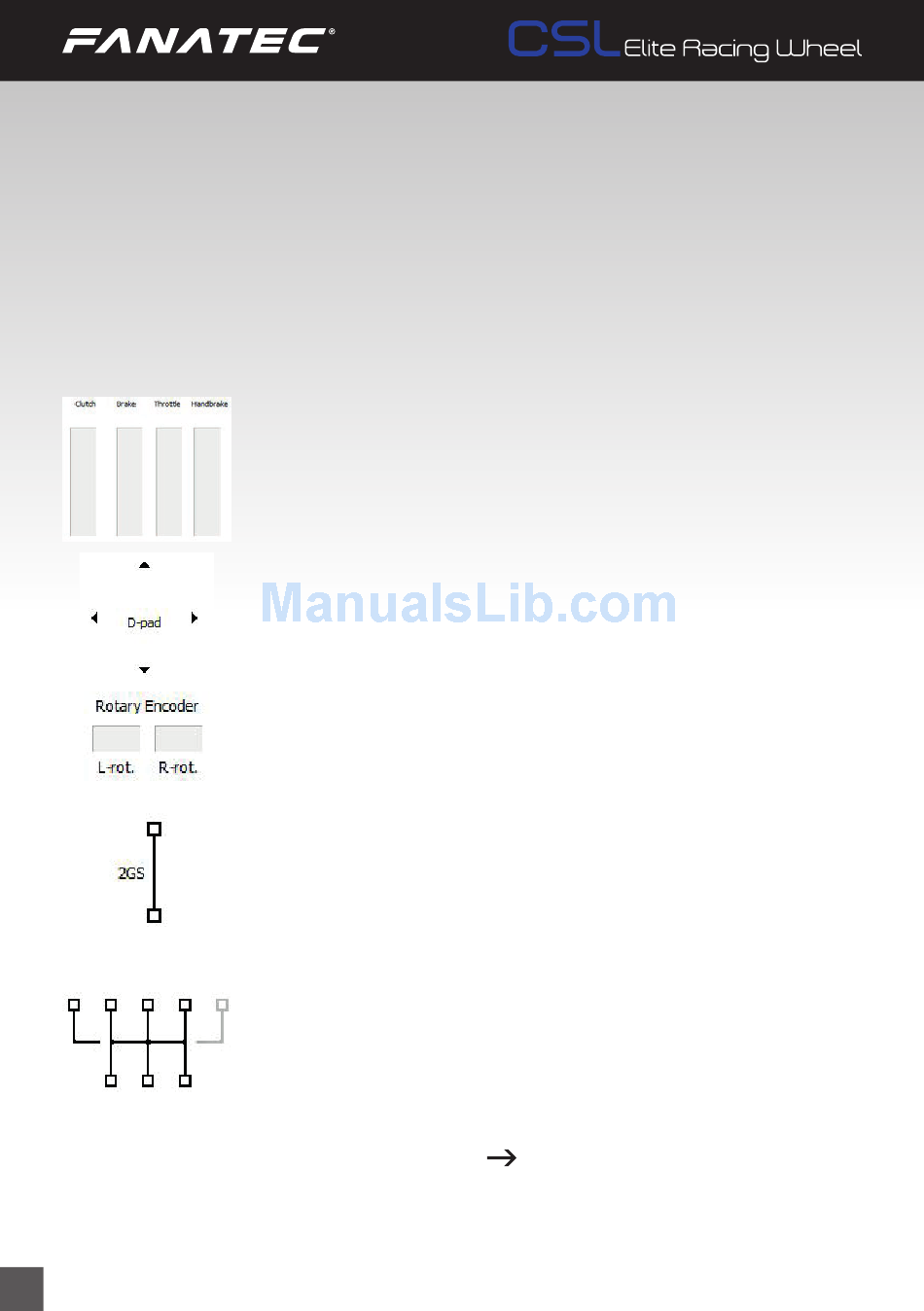

The three indicators 'Clutch', 'Brake' and 'Throttle' show the
current activation and position of these single pedals by a
blue bar moving up and down. Therefore the pedals must be
connected to the CSL Elite Racing Wheel.
Note: Every pedal lever must be pressed down completely to
auto-calibrate the lever movement distance each time when
power resumes.
The 'D-pad' arrows (up, down, left, right) change their
color from black to blue when the corresponding direction is
pressed on the attached Fanatec
The 'Rotary Encoder' boxes flash blue when turning left or
right the FunkySwitch
Not applicable for the CSL Elite Steering Wheel.
The '2GS' indicator shows the activation of the 2GS (two
gears shifter, sequential shifter, SQ) by filling the two little
squares with blue color, depending on activated shifting up or
shifting down. This can be for example the ClubSport Static
Shifter Paddles or the ClubSport Shifter SQ in sequential
mode if these are not mapped to the steering wheel shifter
paddles.
The 'H-pattern' indicator shows the activation of the 6GS, 7GS
or 8GS (six gears shifter, seven gears shifter or eight gears
shifter) by filling the little squares with blue color, depending
on activated shifting position. This can be for example the
steering wheel.
®
(clockwise or counter-clockwise).
TM
'Shifter calibration mode' for more
