Instruction Manual
D103680X012
May 2016
Types EZH and EZHSO Pressure Reducing Regulators
Contents
Introduction .............................................................. 2
Characteristics ......................................................... 3
Labelling .................................................................. 5
Dimensions and Weights ......................................... 6
Description ............................................................... 8
Principle of Operation ............................................... 8
Monitoring Systems .................................................. 11
Installation ............................................................... 13
Startup and Adjustment ........................................... 15
Shutdown ................................................................. 17
Maintenance ............................................................ 17
Troubleshooting ....................................................... 24
Spare Parts .............................................................. 25
Parts List .................................................................. 26
WaRning
!
Failure to follow these instructions or
to properly install and maintain this
equipment could result in an explosion
and/or fire causing property damage and
personal injury or death.
Fisher
regulators must be installed,
®
operated and maintained in accordance
with federal, state and local codes, rules
and regulations and Emerson Process
Management Regulator Technologies,
inc. instructions.
if the regulator vents gas or a leak
develops in the system, service to the unit
may be required. Failure to correct trouble
could result in a hazardous condition.
Call a gas service person to service the
unit. Only a qualified person must install
or service the regulator.
Types EZH and EZHSO

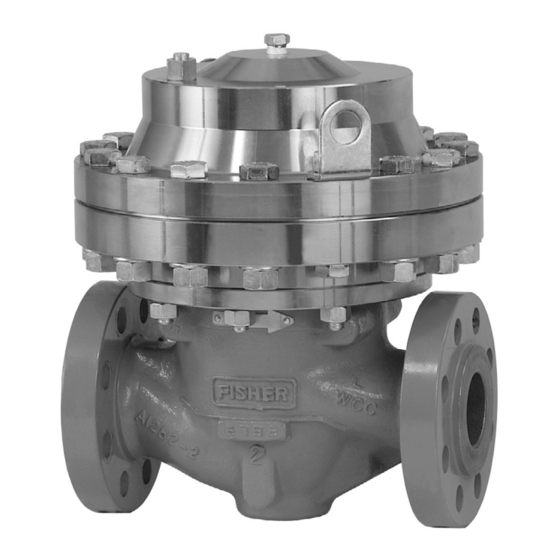

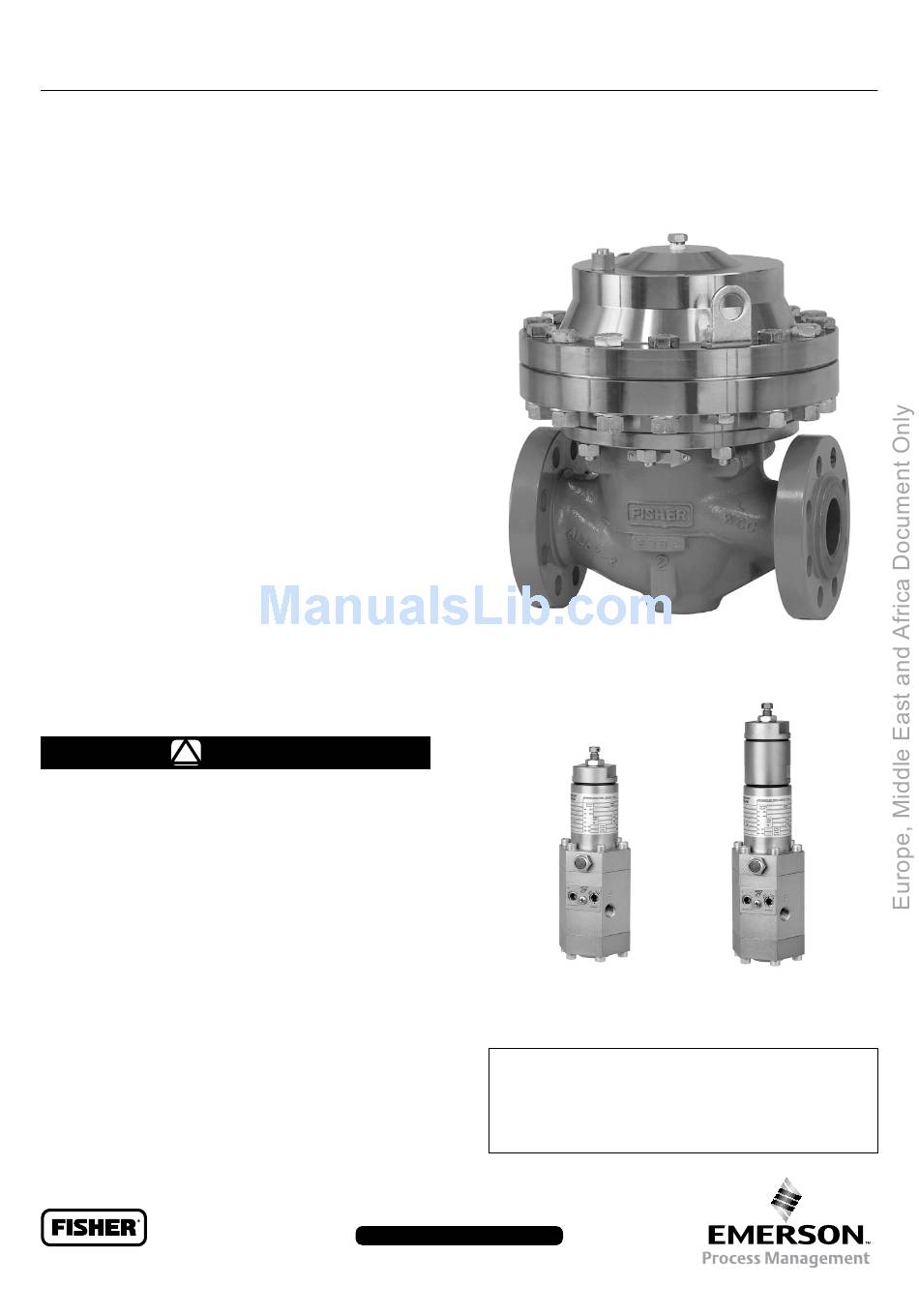

Figure 1. Type EZH Pressure Reducing Regulator
Figure 2. PRX Series Pressure Reducing Pilots
Types EZH, EZHSO, EZH OS2 and EZHSO OS2
PED 2014/68/EU and are classified in Category IV.
www.fisherregulators.com
TYPE PRX-120
TYPE PRX-120/aP
regulators are in conformity with the
Pressure Equipment Directive
R94
