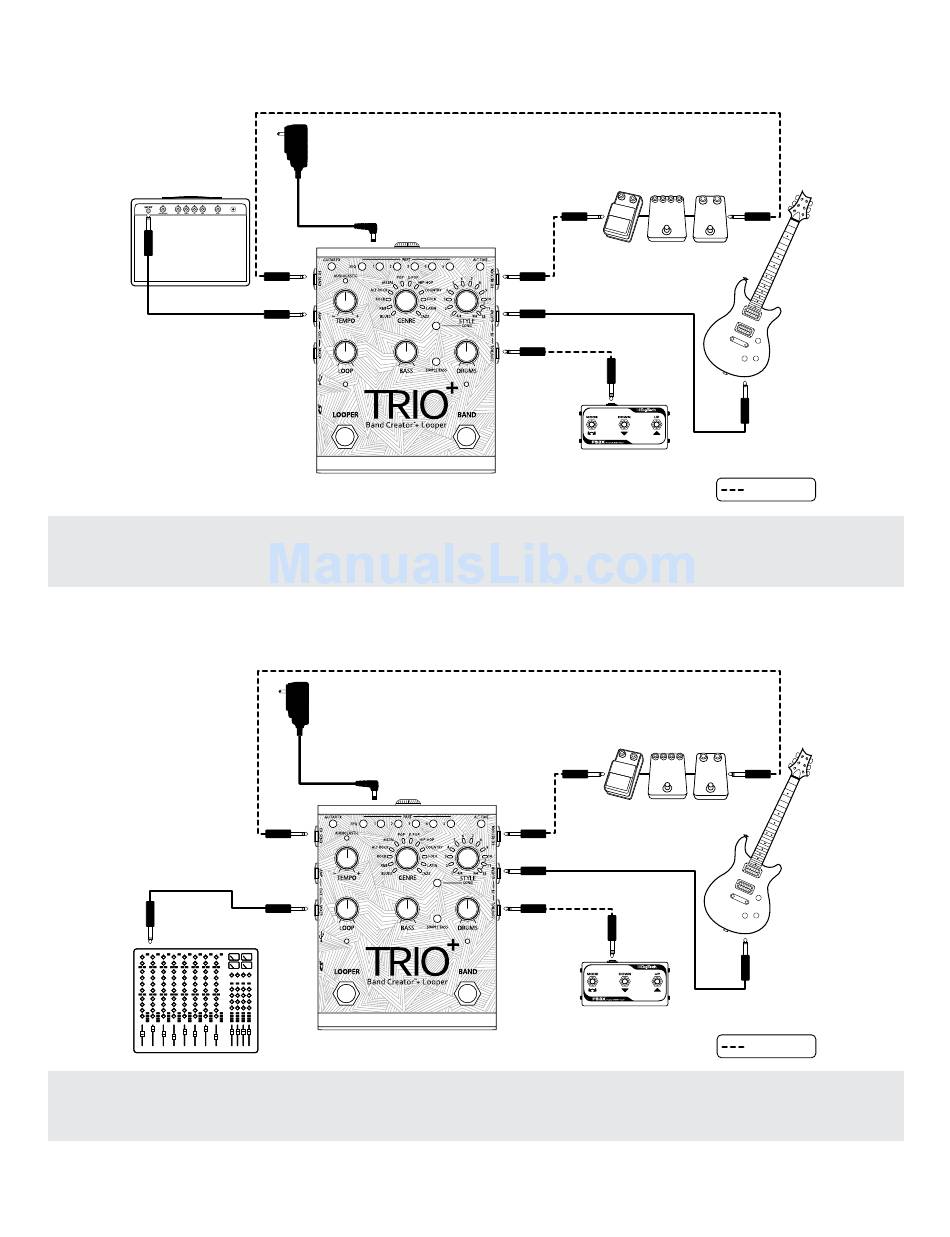

CONNECTION DIAGRAMS

Amplifier Setup

IN
Amp
NOTE: When only the AMP OUT jack is used, an inverse cabinet emulation is added to the bass and drums
signal. See 'Output Jack Operation' on page 15 for more information.

Mixer Setup

IN IN
Mixer Mixer
NOTE: When only the MIXER OUT jack is used, speaker cabinet emulation is added to the guitar signal. See
'Output Jack Operation' on page 15 for more information.
13
HARMAN
PS0913DC (9VDC)
Power Adapter
OUT
OUT
OUT
Use only unbalanced TS instrument cables for audio connections.
HARMAN
PS0913DC (9VDC)
Power Adapter
OUT
OUT OUT
Use only unbalanced TS instrument cables for audio connections.
Guitar Effects
OUT
IN
IN
IN
TRS CABLE
FS3X Footswitch
Guitar Effects
OUT
IN
IN
IN
TRS CABLE
FS3X Footswitch
IN
Optional
IN
Optional
