Jøtul F 162
Manualene må oppbevares under hele produktets levetid. The manuals which are enclosed with the product must be kept throughout the product's
entire service life. Les manuels fournis avec le produit doivent être conservés pendant toute la durée de vie du produit. Los manuales suministrados
con este producto deben guardarse durante todo el ciclo de vida del producto. I manuali inclusi con il prodotto vanno conservati per l'intera durata di
vita del prodotto. Das im Lieferumfang des Produkts enthaltene Begleitmaterial ist über die gesamte Nutzungsdauer aufzubewahren. De bij de haard
meegeleverde handleidingen moeten gedurende de volledige gebruiksduur van de haard bewaard blijven.

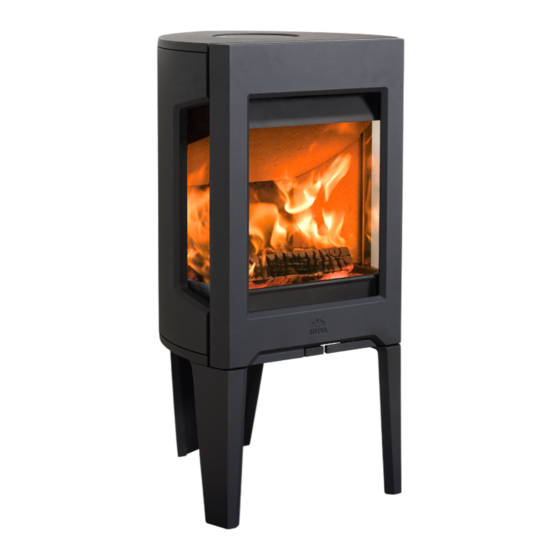

Jøtul F 162 / Jøtul F 163
Jøtul F 163
4
15
26
37
49
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jøtul F 163
Summary of Contents for Jøtul F 163

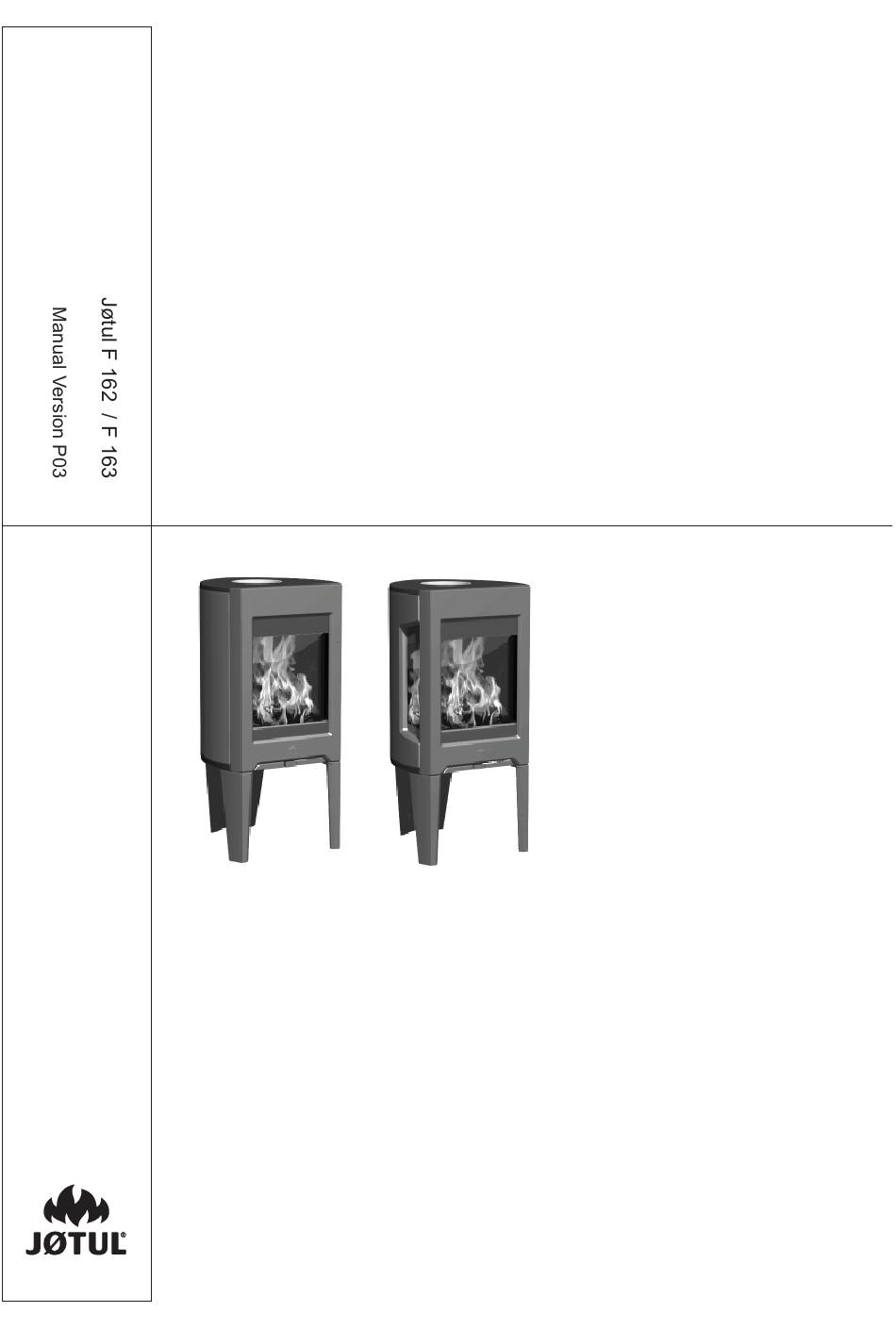

- Page 1 Jøtul F 162 / Jøtul F 163 - Installation and Operating Instructions - Manuel d’installation et d’utilisation - Instrucciones para instalación - Installatie- en montagehandleiding - Instrukcja montażu i obsługi z danymi technicznymi Jøtul F 162 Jøtul F 163 Manualene må oppbevares under hele produktets levetid. The manuals which are enclosed with the product must be kept throughout the product’s entire service life.
- Page 2 EU no. 215/1186 - 24/04/2015...
- Page 3 EU no. 215/1186 - 24/04/2015...
-
Page 4: Table Of Contents
Daily use ..............11 information about identifi cation and documentation for the product. Service ..............12 Maintenance ............13 2.0 Technical data Operational problems - troubleshooting.....13 Jøtul F 162 Jøtul F 163 Material: Cast iron Cast iron Finish: Paint Paint/enamel Optional Equipment ..........14... - Page 5 ENGLISH...
- Page 6 ENGLISH...
-
Page 7: Safety
ENGLISH Air supply Fig. 2c, through the fl oor and basement The outside air connection may be fi tted directly to the product through: • Through a fl exible supply hose from the outside or chimney (only if the chimney has its own duct for external air) and to the product’s outside air connector. -
Page 8: Installation
ENGLISH In case of chimney fi re: Distance to non combustible walls By non combustible one means a non load-bearing wall of solid • Close all hatches and vents. brickwork/concrete. • Keep the fi rebox door closed. • Check the loft and cellar for smoke. Contact your local building authority regarding restrictions and •... - Page 9 ENGLISH 4.5 Selfclosing doormechanism Fig. 5 The product is delivered with a selfclosing doormechanism. If wanted this can be removed. Fig. 3 1. Unscrew the screw and nut (fi g. 3 A). 6. Unscrew the screws (fi g. 5 A) and remove the smoke outlet 2.
- Page 10 4.7 Control of functions When the product is set up, always check the control functions. These shall move easily and function satisfactorily. Jøtul F 162 and F 163 are equipped with the following control: Ignition vent/air vent Ignition Fig. 7a •...
-
Page 11: Daily Use
ENGLISH 4.7 Danger of overheating Wood consumption Use of wood, with nominal heat emission: Approx. 1,6 kg/h. The fi replace must never be used in a Another important factor for proper fuel consumption is that the logs are the correct size. The size of the logs should be: manner that causes overheating Overheating occurs when there is too much fuel and/or too much Kindling:... -
Page 12: Service
ENGLISH 6.0 Service 5.2 Ash removal Jøtul F 162 / F 163 have an ash pan which makes it easy to Warning! Any unauthorised change to the product is not allowed. remove the ash. Only use original spare parts. Fig. 8 6.1 Changing the burn plates/inner... -
Page 13: Maintenance
ENGLISH 6.2 Changing the baffl e plate 7.4 Inspection of the fi replace Follow step 1 -3 under Fig. 9. • Jøtul recommends that you carefully inspect your fi replace Access is then easy to the smoke defl ectors (Fig. 9 B) if they •... -
Page 14: Optional Equipment
ENGLISH 9.0 Optional equipment 11.0 Guarantee terms 1. Our guarantee covers: 9.1 Leg cover - outside air connection Jøtul AS guarantees that the external cast-iron parts are Cat. no. 51012329 free from defects in materials or manufacturing at the time of purchase. - Page 16 Jøtul pursue a policy of constant product development. Products supplied may therefore diff er in specifi cation, colour and type of accessories from those illustrated and described in the brochure. Jøtul vise sans cesse à améliorer ses produits. C’est pourquoi, il se réserve le droit de modifi er les specifi...
