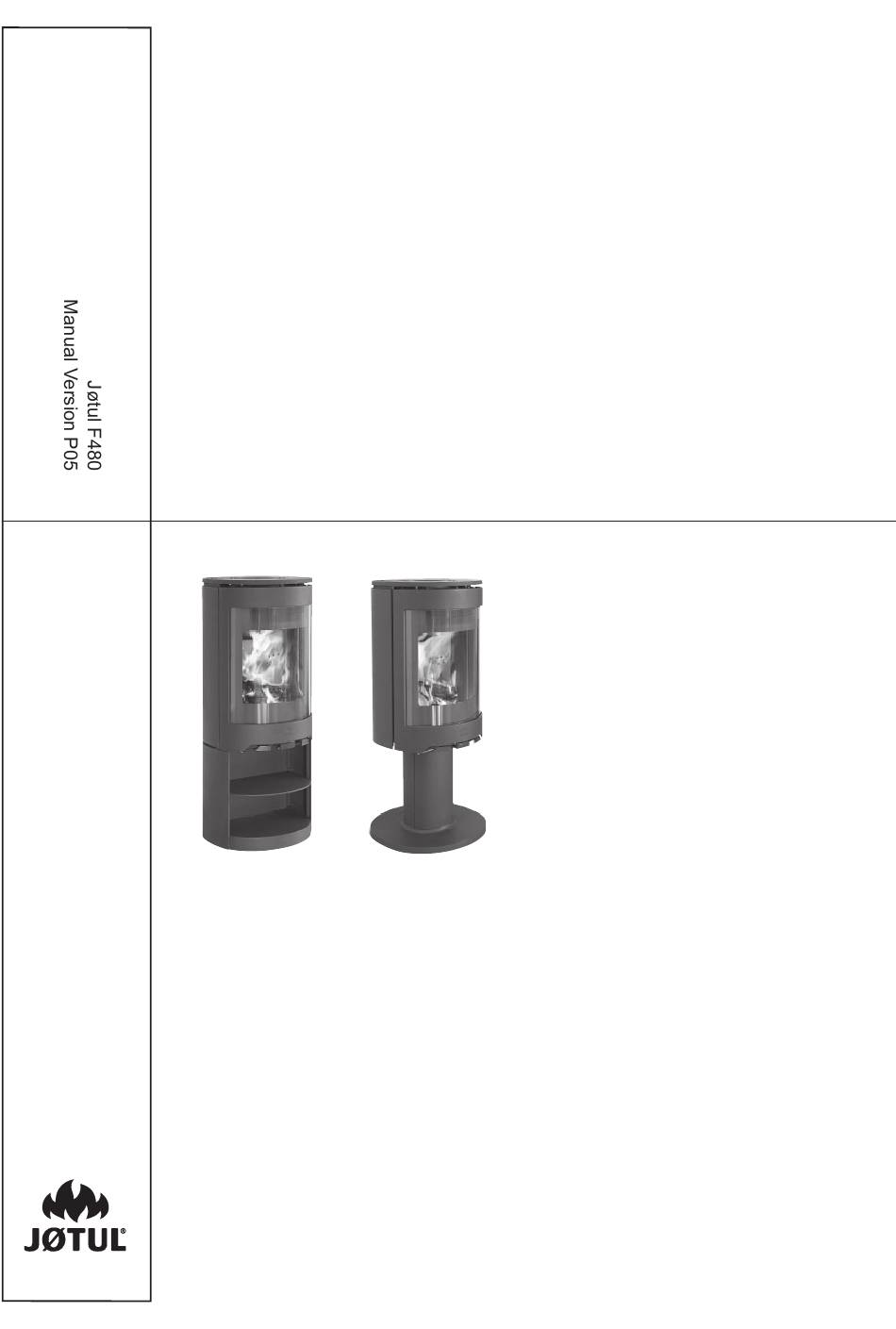

Jøtul F 480 Installation and operating instructions Manuel d’installation et d’utilisation Instrucciones para instalación Manuale di installazione ed uso Installatie- en montagehandleiding Jøtul F 481 Jøtul F 483 The manuals which are enclosed with the product must be kept throughout the product’s entire service life.Les manuels fournis avec le produit doivent être conservés pendant toute la durée de vie du produit.
Page 2
Vereisten / Forderungen Supplier / Jøtul AS Fabricante / Fornitore / Vereisten / Lieferant: Product models Jøtul F 480 Series: Produits concernés Jøtul F 481 Modelos Jøtul F 483 Modelli Product modellen Varianten der Feuerstelle Energy efficiency class / Classe énergétique / Clase de eficiencia energética / Classe energetica / Energie...
ENGLISH 1.0 Technical data Table of contents Material: Cast iron Technical data ......... 3 Finish: Black paint Type of fuel: Wood Relationship to the authorities ....3 Max. log length: 30 cm Smoke outlet: Top, rear Flue pipe dimension: Ø 150 mm Safety ............
ENGLISH 3.0 Safety Requirements for protection of infl ammable fl oors in front of the fi replace NB! To guarantee optimal performance and safety, Jøtul The front plate must comply with national laws and regulations. recommends that its stoves are fi tted by a qualifi ed Contact your local building authorities regarding restrictions installer (see www.jotul.com for a complete list of dealers).
ENGLISH 4.0 Installation Air supply The amount of combustion air for Jøtul’s products is approximately 20-40 m 3 /h. The outside air connection may be fi tted directly to NB: Check that the fi replace is undamaged before installation the Jøtul F 480 through: begins.
Page 8
ENGLISH 4.2 Installation Installation of base/pedestal on the burnchamber External air supply through the base Fig. 5 Through the fl oor 1. NB! If connecting the Flex Hose through a hole in the fl oor, do not knock out the removable cover plates (Fig. 5 A). Through the rear outlet in the base Fig.
Page 9
ENGLISH 4.9 Location of approval label Fig. 9 The approval label must always be affi xed to the wire and positioned as illustrated in fi g. 11. Fig. 11, Base 6. Loosen the height adjustment screws slightly (A) beneath the product so that they can be screwed by hand. NB: If the optional glass fl...
Page 10
ENGLISH Installation with external air supply 4.3 Chimney and fl ue pipe • The fi replace must only be connected to a chimney and Fig. 12 - Base fl ue pipe approved for solid fuel fi replaces with fl ue gas temperatures as specifi...
Page 11
ENGLISH Fitting a fl ue pipe with a top outlet Fig. 14 With a top outlet, the fl ue pipe is installed after the outer sides have been installed. See Chapter 4.6. Fitting a fl ue pipe with a rear outlet The product is supplied from the factory with the smoke outlet fi...
Page 12
ENGLISH 4.5 Installing the cast iron sides 4.6 Fitting a fl ue pipe with a top outlet The product is supplied from the factory with the smoke outlet Fig. 16 fi tted for the top outlet. 1. Place the product in the correct position (fi g. 1). 2.
ENGLISH 5.0 Daily use 4.8 Performance check Always check the control handles once the product has been assembled. These should move easily and work in a Odours when using the fi replace for the satisfactory manner. fi rst time Fig. 19 When the fi...
ENGLISH 5.2 Ash removal Initial lighting • Open the air vent and ignition vent by pulling the handles • The Jøtul F 480 has an ash pan that makes it easy to (fi g. 19 A and B) all the way out. (Use a glove or something remove the ash.
ENGLISH 6.5 Exterior maintenance place, check that the gasket on the back burn plate is securely attached. Painted products may change colour after several years’ 8. Lift out the riddling grate (J) (can be done fi rst when it usage. The surface should be cleaned and brushed free of needs replacing).
Page 16
ENGLISH Fig. 23 Fig. 25 9. Place the glass holders on a soft material with the side, as illustrated (A), turned up. 10. Apply a bead of glue into the gasket groove (B) which is now facing up. 11. Fit the gasket (C) into the groove with the ends sticking out 4.
Page 17
ENGLISH 7.4 Adjusting the door Fig. 28 Fig. 27 4. Loosen the screws (Fig. 28 A). 5. Place the door in the required position. 6. Tighten the screws (Fig. 28 A) and in Fig. 27 C. 7. Loosen the screws in Fig. 27 D and Fig. 28 B. 8.
ENGLISH 8.0 Operational problems - 9.0 Optional extras troubleshooting 9.1 Outside air connection Outside air connection, Ø 80 mm - Cat. no. 51047509 Poor draught Check the length of the chimney and that it complies with national laws and regulations. (See also «2.0 Technical data» 9.2 Rotating set ).
ENGLISH 10.0 Recycling 11.0 Guarantee terms Our guarantee covers: 10.1 Recycling packaging Jøtul AS guarantees that the external cast-iron parts are Your fi replace is delivered with the following packaging: free from defects in materials or manufacturing at the time of •...
Page 20
Sluttkontroll av ildsteder Quality control of stoves and fireplaces Checked Utført Kontrollpunkt Controlled item Alle deler er med i produktet (ifølge struktur). All parts are included. Alle festemidler er av korrekt type, og er korrekt Correct fastener items have been used and anvendt.
