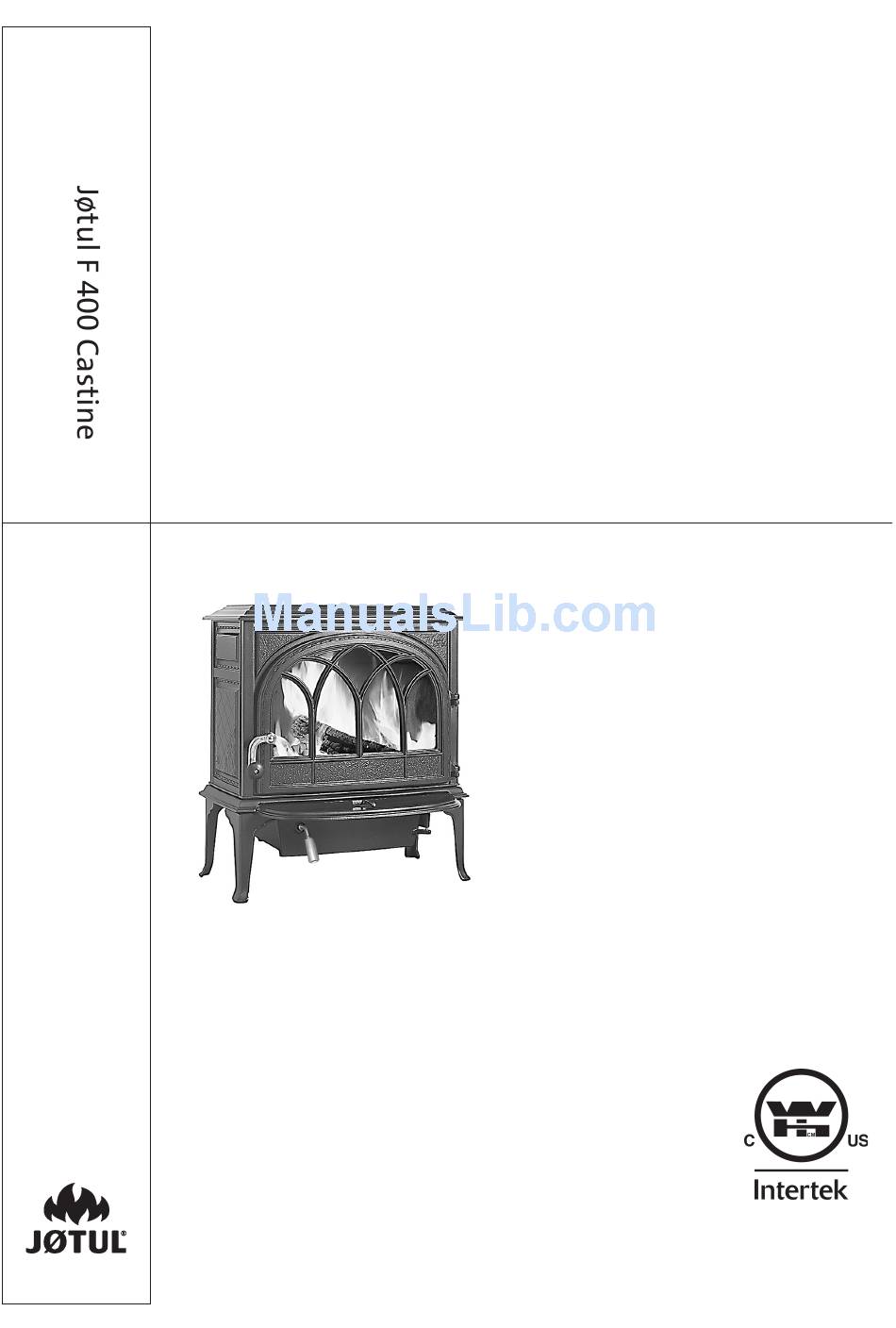

Jøtul F 400 Castine
Non-catalytic Wood Stove
Installation and Operation Instructions
for the U.S. and Canada
Save these instructions and make them available to anyone using or servicing the stove.

Advertisement

Table of Contents
loading

Related Manuals for Jøtul F 400 Castine

Summary of Contents for Jøtul F 400 Castine

  • Page 1 Jøtul F 400 Castine Non-catalytic Wood Stove Installation and Operation Instructions for the U.S. and Canada Save these instructions and make them available to anyone using or servicing the stove.
  • Page 2 Standards See Sect. 5.0 of this manual for important information The Jøtul F 400 Castine solid fuel heater has been tested regarding the safe, proper, and most efficient operation and listed to : of your stove.

  • Page 3: Table Of Contents

    139680-R00 F 400 Castine May 2015 Safety Notices Table of Contents • BURN SOLID, NATURAL WOOD FUEL ONLY. DO NOT Safety Notices BURN ANY OTHER FUEL. • DO NOT USE CHEMICALS OR FLUIDS TO START A FIRE. 1.0 Installation DO NOT BURN GARBAGE OR FLAMABLE FUELS.

  • Page 4: Installation

    139680-R00 F 400 Castine May 2015 1.0 Installation 2.0 Chimney Requirements If this solid fuel room heater is not properly installed, a house There are two types of chimneys suitable for the Jøtul F 400 : fire may result. For your safety, follow the installation directions 1.

  • Page 5: Prefabricated Chimneys

    139680-R00 F 400 Castine May 2015 2.4 Wall Pass-Throughs installed with refractory mortar. There must be at least 1/2” (12.7 mm) air space between the flue liner and chimney wall. • The fireclay flue liner must have a nominal size of 8” X 8” (20 In the U.S.

  • Page 6: Connecting To The Chimney

    139680-R00 F 400 Castine May 2015 3.0 Connecting to the 4.0 Clearance to Combustibles Chimney 4.1 Floor Protection (For both U.S. and Canada) The Jøtul F 400 requires one of the following three forms of 3.1 Masonry Chimney hearth protection: 1.

  • Page 7: Alcove Installation

    EPA qualified tested efficiency values are not currently available accessories that permit clearance reduction. Use only those for the Jøtul F 400 Castine. The EPA default efficiency for non- accessories that have been tested by an independent laboratory catalytic wood heaters is 63% per Federal Register 40 CFR Part and carry the laboratory’s testing mark.

  • Page 8: Air Flow And Control

    139680-R00 F 400 Castine May 2015 Use a Stove-top Thermometer potential for a chimney fire. Use of unseasoned wood defeats Determining the primary air setting for the best overall the purpose of any modern wood-burning stove. performance for your particular needs and installation will be established over time through trial and error.

  • Page 9: Adding Fuel

    139680-R00 F 400 Castine May 2015 2. Light the fire and close the door, slowly building the fire by flue connector has been cleaned and inspected to ensure that adding larger and larger logs. Be sure to follow the break-in no damage has occured.

  • Page 10: Glass Care

    139680-R00 F 400 Castine May 2015 6.2 Glass Care the chimney whenever creosote and fly ash accumulation exceeds 1/4 inch in any part of the system. Cleaning Chimney brushes are available from your local Jøtul dealer On occasion it will be necessary to clean the carbon deposits or hardware supply store.

  • Page 11: Accessories

    139680-R00 F 400 Castine May 2015 7.4 Chimney System in some installations, in itself, such a system does not guarantee The Jøtul F 400 is designed to burn cleanly and efficiently when proper chimney performance. used according to the guidelines in this manual. In order to...
  • Page 12 139680-R00 F 400 Castine May 2015 Rear Heat Shield 154385 A stove rear heat shield has been specifically designed for the Jøtul F 400 to reduce clearances off the rear of the stove to combustible materials. Use of the heat shield does not affect the clearance off the sides of the appliance.
  • Page 13 139680-R00 F 400 Castine May 2015 This page is intentionally blank.

  • Page 14: Illustrations Clearance Diagrams

    139680-R00 F 400 Castine May 2015 Jøtul F 400 Woodstove Clearances Unprotected Surface Protected Surface PER NFPA 211 or Parallel to the Wall Parallel to the Wall CAN/CSA-B365 Important Connector heatshields and double wall pipe must be a listed product.

  • Page 15: Clearance Chart

    139680-R00 F 400 Castine May 2015 Jøtul F 400 Woodstove Clearances Stove Unprotected Surface Protected Surface Installation Clearances Installation PER NFPA211 OR CAN/CSA -B365-M93 Side Rear Corner* Side Rear Corner* Stove -no heatshield 19” A 25” B 18” C 11” D 7”...

  • Page 16: Figures

    139680-R00 F 400 Castine May 2015 Fig. 2 Fig. 1 25 3/4" Toward Stove Flue Gas Direction 23 1/4" Fig. 3 At least 2 feet At least 3 feet 10 feet 29 1/2” top exit 25 1/2” rear exit Fig. 4 Flue liner Wood stud 2"...
  • Page 17 139680-R00 F 400 Castine May 2015 Fig. 8 Fig. 5 (Measurements in mm for Canada) Connector pipe shall Hearth Protection be flush with the inside 2" (50 mm) of the flue tile Stove pipe connector Min. Depth 44" (1168 mm)

  • Page 18: Primary Air

    139680-R00 F 400 Castine May 2015 Fig. 11 Fig. 14 Primary Air Secondary Air Exhaust Fig. 15 Fig. 12 Doors Gasket Glass Far left Far right Full closed Full open Fig. 13 Stove top thermometer...

  • Page 19: Parts Diagram And List

    139680-R00 F 400 Castine May 2015 9.0 Illustrated Parts List...

  • Page 20: Appendix A - Alternate Floor Protection

    139680-R00 F 400 Castine May 2015 Appendix A Part list for the Jøtul F 400 woodstove Consult your dealer for part numbers and replacement parts. Alternate floor protection Description All floor protection materials must be non-combustible ie. metal, Ashlip Packed brick, stone, mineral fiber boards).
  • Page 21 139680-R00 F 400 Castine May 2015 10.0 Jøtul N. A. Wood- burning Product Limited Lifetime Warranty Exclusions and Limitations Effective January 1, 2013 This warranty policy applies to wood-burning products identified Notice: This warranty is void if installation or service is performed by Jøtul and Scan trade names, as set forth below.

  • Page 22: Warranty

    139680-R00 F 400 Castine May 2015 Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the length of implied warranties. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
  • Page 23 139680-R00 F 400 Castine May 2015...
  • Page 24 Jøtul pursues a policy of continuous product development. Products supplied may therefore differ in specification, colour and type of accessories from those illustrated and described in the manual. Jøtul North America Inc. 55 Hutcherson Drive Gorham, Maine 04038 Jøtul AS P.o.
