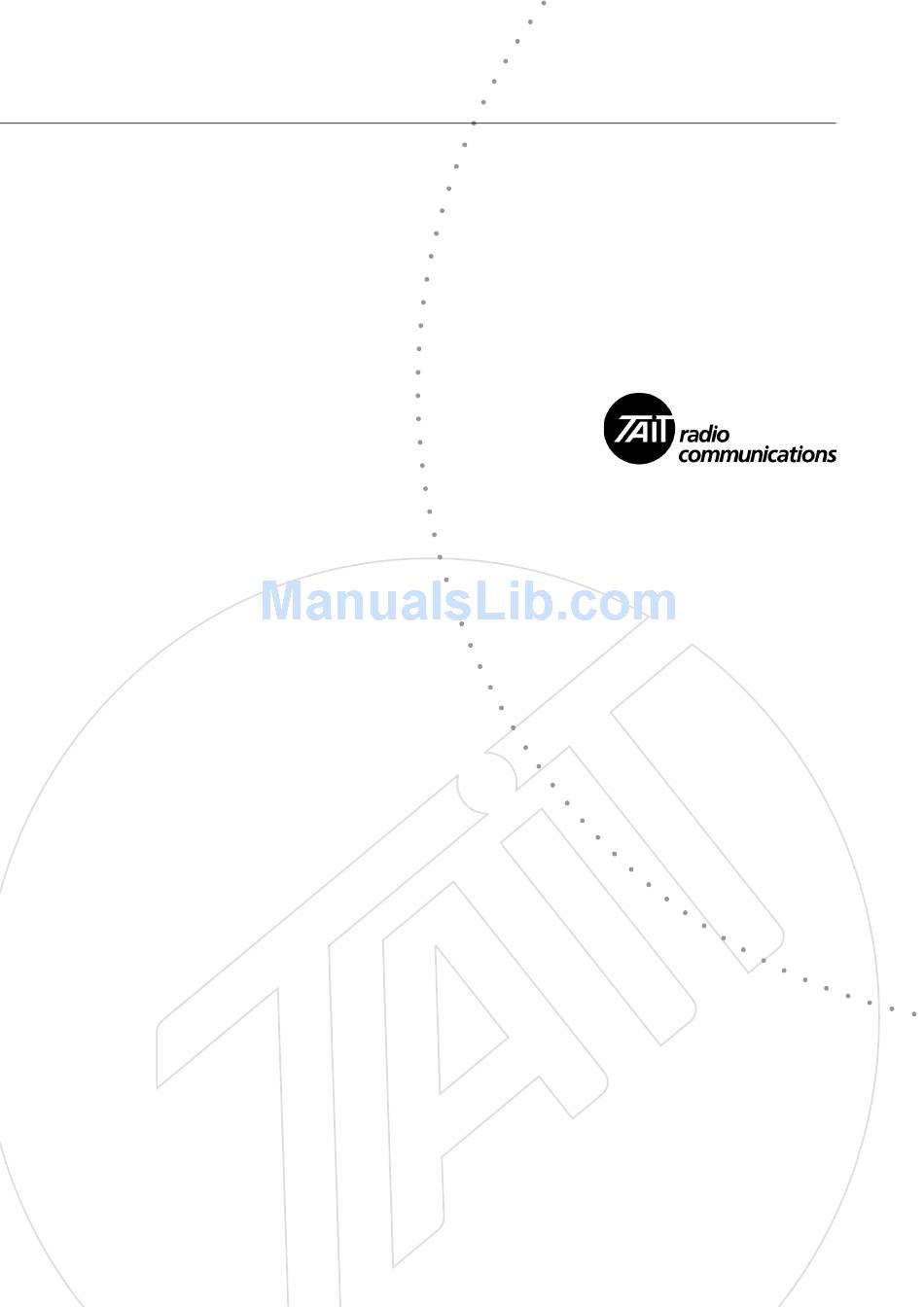

- Page 1 TB7100 base station Installation Guide MBB-00003-03 Issue 3 March 2006...
-
Page 2: Contact Information
Directive requires that this product be disposed of Limited. separately from the general waste stream when its The word TAIT and the TAIT logo are trademarks of service life is over. Please be environmentally Tait Electronics Limited. responsible and dispose through the original supplier, All trade names referenced are the service mark, your local municipal waste “separate collection”... -
Page 3: Table Of Contents
The characters xx represent the issue number of the documentation. All available documentation is provided on the Product CD supplied with the base station. Updates may also be published on the Tait support website. Consult your nearest Tait Dealer or Customer Service Organisation for more information... -
Page 4: Tait Electronics Limited March
TB7100 Installation Guide © Tait Electronics Limited March 2006... -
Page 5: Installation
1.1.2 Explosive Environments Warning!! Do not operate base station equipment near electrical blasting caps or in an explosive atmosphere. Operating the equipment in these environments is a definite safety hazard. TB7100 Installation Guide Installation © Tait Electronics Limited March 2006... -
Page 6: Equipment Safety
You can obtain further information on antistatic precautions and the dangers of electrostatic discharge (ESD) from standards such as ANSI/ESD S20.20-1999 or BS EN 100015-4 1994. Installation TB7100 Installation Guide © Tait Electronics Limited March 2006... -
Page 7: Regulatory Information
Regulatory Information 1.3.1 Distress Frequencies The 406 to 406.1MHz frequency range is reserved worldwide for use by Distress Beacons. Do not program transmitters to operate in this frequency range. TB7100 Installation Guide Installation © Tait Electronics Limited March 2006... - Page 8 1.3.3 Unauthorised Modifications Any modifications you make to this equipment which are not authorised by Tait Electronics Ltd. may invalidate your compliance authority’s approval to operate the equipment. 1.3.4 Health, Safety and Electromagnetic Compatibility in Europe...
-
Page 9: Environmental Conditions
Because it is outside the scope of this manual to provide comprehensive information on this subject, we recommend that you conform to your country's standards organisation or regulatory body. TB7100 Installation Guide Installation © Tait Electronics Limited March 2006... -
Page 10: Recommended Tools
Pozidriv PZ1 screwdriver for the M3 pan head self-tapping screws used to secure the fans. You can also obtain the TBA0ST2 tool kit from your nearest Tait dealer or Customer Service Organisation. It contains the basic tools needed to install, tune and service the base station. - Page 11 BUSY VOLUME BUSY VOLUME BUSY VOLUME BUSY VOLUME BUSY VOLUME BUSY VOLUME ≥10cm (≥4in) BUSY VOLUME BUSY VOLUME BUSY VOLUME BUSY VOLUME ventilation slots airflow entry blanking panels airflow exit TB7100 Installation Guide Installation © Tait Electronics Limited March 2006...
-
Page 12: Installing The Base Station
Slide the carton upwards over the foam cushions and lift it away. Remove the cushion from the bottom of the base station. Lift the base station clear of the remaining cushion. Installation TB7100 Installation Guide © Tait Electronics Limited March 2006... - Page 13 DC backup power option. In case of AC mains failure the base station will automatically and seamlessly switch to DC power input. If no internal AC power supply unit is fitted, an external Tait T809-10-87xx power supply can be used to supply the DC voltage required.
- Page 14 (front panel mounted down) or side to side. For transport or in installations subject to vibration, the base station should be supported at the rear using a transit bracket (Tait recommends to use the TB7100 transit bracket, Tait part number TBBA03-04). Figure 1.3...
- Page 15 Cables must be routed so that they do not restrict the air outlets at the rear of the base station. 1.8.5 Accessories The base station can use the following accessories: 219-03012-00 cable assembly to connect TB7100 to CMM card T809-10-87xx power supply TBBA03-01 wall mounting kit TBBA03-02 duplexer kit (mechanical configuration without provision for internal...
- Page 16 Installation TB7100 Installation Guide © Tait Electronics Limited March 2006...
-
Page 17: Connections
Configuration with internal AC power supply unit shown Connector For information on the factory connector and the internal options connector of the transmitter and receiver, refer to the PCB information. TB7100 Installation Guide Connections © Tait Electronics Limited March 2006... -
Page 18: External Connectors
Therefore, the socket-outlet must be installed near the equipment and must be readily accessible. Ensure that all power sources (AC and DC) are disconnected before opening the base station. Connections TB7100 Installation Guide © Tait Electronics Limited March 2006... - Page 19 Figure 2.3 Recommended DC power connection Circuit Breaker or Fuse TB7100 base station Battery The ground point is a terminal for grounding the tray to the mounting rack. Ground Point TB7100 Installation Guide Connections © Tait Electronics Limited March 2006...
- Page 20 The RF connector is an N-type connector with an impedance of 50Ω. Important The maximum RF input level is +27dBm. Higher levels may damage the radio. Signal Name Signal Type Notes RF analog RF ground rear view Connections TB7100 Installation Guide © Tait Electronics Limited March 2006...
- Page 21 ≥1.7 V, low ≤0.7 V Digital output/Tx relay output active low, sinks up to 250mA Rx audio output output <4.4V 13.8 volt output power output resetable SMD fuse 1.5A TB7100 Installation Guide Connections © Tait Electronics Limited March 2006...
- Page 22 +13.8V, 250mA 1 2 3 4 5 6 7 8 input transmit data input MIC_AUD_IN input voice band (microphone) input ground external view output receive data not connected not connected Connections TB7100 Installation Guide © Tait Electronics Limited March 2006...
-
Page 23: Internal Connectors
DC power connectors for the 50W/40W and 25W versions. Signal name Signal type Notes AGND ground 50W/40W SPK– analog output not connected SPK+ analog output not connected external view 13.8VDC DC power input external view TB7100 Installation Guide Connections © Tait Electronics Limited March 2006... - Page 24 +3V3DC for UI board external view pin 1 closest to PCB CH SPI D1 input input CH SPI CLK output output SPK- no connection output speaker audio SPK+ no connection output speaker audio Connections TB7100 Installation Guide © Tait Electronics Limited March 2006...
- Page 25 TX_AUX_GPI1 input digital input TX_AUX_GPI2 input digital input TX_AUD_TAP_OUT no connection TX_RSSI no connection TX_MIC_AUD output external view TX_AUD_TAP_IN output Tx audio TX_GND ground ground TX_13V8 no connection no connection TB7100 Installation Guide Connections © Tait Electronics Limited March 2006...
- Page 26 RX_AUX_GPI2 input digital input RX_AUD_TAP_OUT input receive audio RX_RSSI input RSSI RX_MIC_AUD no connection external view RX_AUD_TAP_IN no connection RX_GND ground ground RX_13V8 no connection no connection Connections TB7100 Installation Guide © Tait Electronics Limited March 2006...
- Page 27 RX_CH_SPI_D0 input RX_CH_LE input RX_CH_GPIO1 input digital ground RX_+3V3 input +3V3DC for PCB external view RX_CH_SPI_DI output RX_CH_SPI_CLK input RX_CH_SPK- input speaker audio RX_CH_SPK+ input speaker audio TB7100 Installation Guide Connections © Tait Electronics Limited March 2006...
- Page 28 Directive 1999/5/EC Declaration of Conformity Dansk Français Undertegnede Tait Electronics Limited erklærer Par la présente, Tait Electronics Limited déclare herved, at følgende udstyr TBBA4A, TBBB1A, que l'appareil TBBA4A, TBBB1A, TBBB1B, TBBB1B, TBBC0A, TBBH5A & TBBH5B TBBC0A, TBBH5A & TBBH5B est conforme overholder de væsentlige krav og øvrige...
