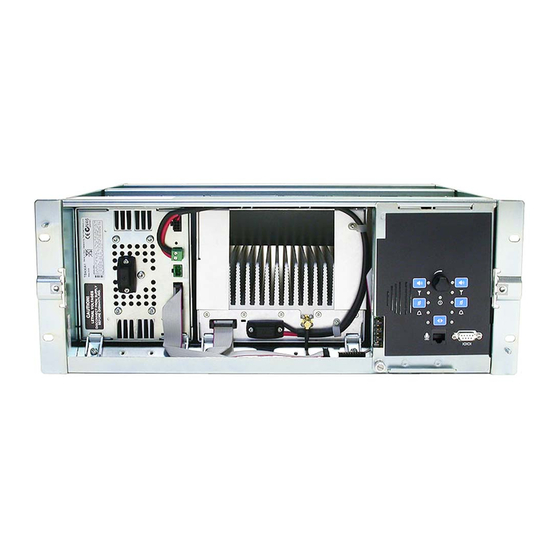

- Page 1 TB8100 base station Installation Guide MBA-00009-06 Issue 6 June 2005...
-
Page 2: Table Of Contents
Tuning and Configuration If your TB8100 BSS has not been tuned to your requirements at the factory, you will need to tune the reciter modules before operating them in your radio system. To do this you will need to use the Calibration Kit software included on the Product CD, plus the TB8100 calibration test unit. -
Page 3: Installation
Refer to the ratings label on the rear of the module. The TB8100 BSS must be installed so that the rear of the PMU is located in a service access area. The PMU must be connected to the mains supply source by trained personnel in accordance with local and national regulations. -
Page 4: Equipment Safety
S20.20-1999 or BS EN 100015-4 1994. Figure 1.1 Typical antistatic bench set-up conductive wrist strap dissipative rubber bench mat common point ground (building ground or mains ground via 1M ohm series resistor) Installation TB8100 Installation Guide © Tait Electronics Limited June 2005... -
Page 5: Regulatory Information
Tait Electronics Ltd may invalidate your compliance authority’s approval to operate the equipment. 1. Refer to the TB8100 Specifications Manual for more information on the compliance standards to which the TB8100 BSS equipment has been tested and approved. TB8100 Installation Guide Installation ©... -
Page 6: Environmental Conditions
Environmental Conditions 1.4.1 Operating Temperature Range The operating temperature range of the TB8100 BSS is –30°C to +60°C (–22°F to +140°F) ambient temperature. Ambient temperature is defined as the temperature of the air at the intake to the cooling fans. -
Page 7: Grounding And Lightning Protection
8mm AF spanner for the SMA connectors. You can also obtain the TBA0ST2 tool kit from your nearest Tait Dealer or Customer Service Organisation. It contains the basic tools needed to install, tune and service the TB8100 BSS. -
Page 8: Ventilation
Refer to Figure 1.2 on page The cooling airflow for the TB8100 BSS enters through the front panel and exits at the rear of the subrack. For optimum thermal performance, the heated air that has passed through a BSS must not be allowed to re-enter the air intakes on the front panel. - Page 9 Figure 1.2 Typical cabinet ventilation requirements top view 20cm (8in) side view front view ≥17.5cm (≥7in) ventilation slots airflow entry blanking panels airflow exit TB8100 Installation Guide Installation © Tait Electronics Limited June 2005...
- Page 10 The maximum ambient temperature entering the cabinet must not exceed +60°C (+140°F). If the TB8100 BSS is installed in a rack or cabinet with other equipment with different ventilation requirements, we recommend that the TB8100 be positioned below this equipment.
-
Page 11: Installing The Base Station System
In all cases follow safe lifting practices. 1.8.1 Unpacking the Equipment The TB8100 BSS is packed in a strong corrugated cardboard carton with Unpacking the TB8100 BSS top and bottom foam cushions. To prevent personal injury and damage to the equipment, we recommend that two people unpack the BSS. - Page 12 Modules” in the Installation and Operation Manual), or have another person help you with the lifting. Figure 1.4 Subrack mounting points front view rear view main mounting holes - front auxiliary mounting holes - rear Installation TB8100 Installation Guide © Tait Electronics Limited June 2005...
- Page 13 Figure 1.5 below shows a standard TBA2140 bracket fitted in a typical Tait Electronics cabinet If you are not using a Tait cabinet, you may have to make your own brackets to suit your installation. Figure 1.5 Auxiliary support bracket...
- Page 14 1.8.5 Cabling We recommend that you try to route all cables to and from the TB8100 BSS General along the side of the cabinet so the cooling airflow is not restricted.
- Page 15 Figure 1.7 DC power cabling secure the cables to the cabinet to support their weight TB8100 Installation Guide Installation © Tait Electronics Limited June 2005...
-
Page 16: Connection
Connection TB8100 Installation Guide © Tait Electronics Limited June 2005... - Page 17 The pin allocations for the 2-way connector fitted to PMUs manufactured from August 2004 onwards are given in the following table. Description +V output ground 2-way connector - external view TB8100 Installation Guide Connection © Tait Electronics Limited June 2005...
-
Page 18: Pa Power Saving Control Connection
PA and reciter are described below. The circled numbers in the following instructions refer to Figure 2.2 on page Connect one end of the Power Saving control cable (Tait part Method 1 number 219-02971-00) to the Power Saving control connector Connection TB8100 Installation Guide © Tait Electronics Limited June 2005... - Page 19 If you wish to make up your own cable, use the following connector for both the PA and reciter connections: 2x1-way Molex 43025-0200/crimp socket 43030-0001 female. TB8100 Installation Guide Connection © Tait Electronics Limited June 2005...
-
Page 20: System Connections
On version 1 and later system interface boards, digital inputs 3, 4, 5, and 6 may also be configured as outputs using a Task Manager statement. For more details refer to “Digital Interface” on page 117 of the Installation and Oper- ation Manual, and to the Service Kit documentation. Connection TB8100 Installation Guide © Tait Electronics Limited June 2005... - Page 21 On version 1 and later system interface boards, digital inputs 3, 4, 5, and 6 may also be configured as outputs using a Task Manager statement. For more details refer to “Digital Interface” on page 117 of the Installation and Oper- ation Manual, and to the Service Kit documentation. TB8100 Installation Guide Connection © Tait Electronics Limited June 2005...
- Page 22 On version 1 and later system interface boards, digital inputs 3, 4, 5, and 6 may also be configured as outputs using a Task Manager statement. For more details refer to “Digital Interface” on page 117 of the Installation and Oper- ation Manual, and to the Service Kit documentation. Connection TB8100 Installation Guide © Tait Electronics Limited June 2005...
- Page 23 If a base station with a 12V PA is configured for Deep Sleep, digital out 1 is dedicated to Power Saving control and should not be used for any other Task Manager function. TB8100 Installation Guide Connection © Tait Electronics Limited June 2005...
- Page 24 The rear-mounted RS-232 serial port facilitates the connection of multiple base stations to a Service Kit or Alarm Center using an APS (asynchronous Connection TB8100 Installation Guide © Tait Electronics Limited June 2005...
-
Page 25: Service Kit Connections
APS with TB8100 base stations. Service Kit Connections The TB8100 Service Kit is connected to the BSS via the RS-232 serial port on the control panel. This port is a 9-way female D-range connector. Use a straight through cable, as supplied with the Service Kit, to connect your programming computer to the BSS. -
Page 26: Rf Connections
This in turn may result in random actuations of microphone PTT, carrier, or speaker key, causing the BSS to transmit or the speaker to be actuated incorrectly. Connection TB8100 Installation Guide © Tait Electronics Limited June 2005... -
Page 27: Tait Electronics Limited June
Directiva 1999/5/CE. Veja também: http://eudocs.taitworld.com/ Español Svensk Por medio de la presente Tait Electronics Limited declara que el TBAB1, TBAC0 & Härmed intygar Tait Electronics Limited att TBAH0 cumple con los requisitos esenciales y denna TBAB1, TBAC0 & TBAH0 står I cualesquiera otras disposiciones aplicables o överensstämmelse med de väsentliga... - Page 28 Website: http://www.taitworld.com To our European customers: Tait Electronics Limited is an environmentally responsible company which supports waste minimization and material recovery. The European Union's Waste and Electrical and Electronic Equipment Directive requires that this product be disposed of separately from the general waste stream when its service life is over.
