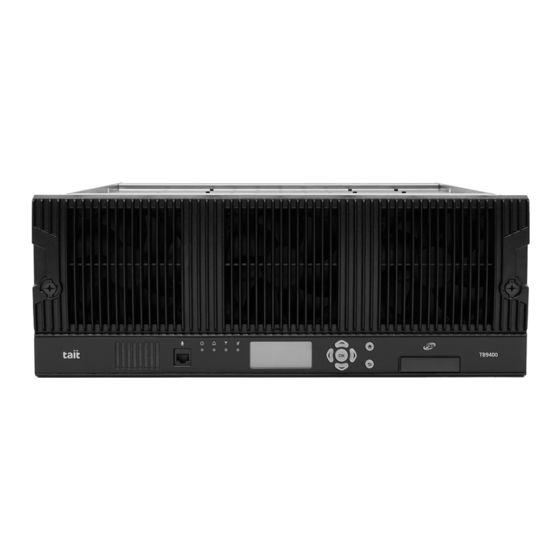

Tait TB9400 Specification Manual
Base station/repeater
Hide thumbs
Also See for TB9400:
- Installation and operation manual (150 pages) ,
- Installation and operation manual (155 pages) ,
- Installation and operation manual (139 pages)
Related Manuals for Tait TB9400
Summary of Contents for Tait TB9400
- Page 1 TB9400 Base Station/Repeater Specifications Manual MBC-00002-13 · Issue 13 · July 2017...
- Page 2 Tait Limited. Electronic Equipment (RoHS) Directive in the European Union. The word TAIT and the TAIT logo are trademarks of Tait Limited. In China, we comply with the Measures for Administration of the Pollution Control of Electronic All trade names referenced are the service mark, Information Products.
-
Page 3: Table Of Contents
Analog Audio - Modulation Characteristics ......29 TB9400 Specifications Manual Contents © Tait Limited July 2017... - Page 4 Appendix A – Frequency Response Diagrams ........47 Contents TB9400 Specifications Manual © Tait Limited July 2017...
-
Page 5: Preface
Preface Scope of Manual Welcome to the Specifications Manual for the TB9400 base station/ repeater. This manual provides general, performance and physical specifications for the TB9400 50W and 100W base stations/repeaters. In the following, unless mentioned specifically, this manual will use the term “base station”... -
Page 6: Associated Documentation
The characters xx represent the issue number of the documentation. Technical notes are published from time to time to describe applications for Tait products, to provide technical details not included in manuals, and to offer solutions for any problems that arise. Technical notes are available in PDF format from the Tait support website. - Page 7 Clarification of repeater vs. base station for K and L bands in Brazil ■ June 2016 Changes for version 2.20 release. Additions table added to section 1.5 Analog RF specifying that the TB9400 only ■ supports Narrow Bandwidth inclusion of B band alongside G and F ■...
- Page 8 Added some missing K4 band info Removed some erroneous K8 information Updated receive voter limitations Updated “RF and EMC Compliances” on page 45 Updated information in “Requirements for Delay, Jitter, Loss and Duplication” on page 31 Preface TB9400 Specifications Manual © Tait Limited July 2017...
-
Page 9: Base Station Specifications
Base Station Specifications The performance figures given in these specifications are applicable only to equipment operating as an integral part of a TB9400 base station. These performance figures are minimum figures, unless otherwise indicated, for equipment operating at standard room temperature (+22°C to +28°C [+71.6°F to +82.4°F]) and standard test voltages as follows:... -
Page 10: Regulatory Information
6K80D7W test mode only H-D8PSK digital voice/data You can obtain further details of test methods and the conditions which apply for compliance testing in all countries from Tait. Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 11: Frequency Bands And Sub-Bands
The actual frequency coverage in this band is: Transmit: 762MHz to 776MHz, and 850MHz to 870MHz Receive: 792MHz to 824MHz In Brazil, for K band, the TB9400 is considered to be configured as a base station with retransmission of receive frequencies. TB9400 Specifications Manual Base Station Specifications ©... -
Page 12: Power Supply
Power Supply The specifications in this section refer to the TB9400 base station fitted with a PMU. AC Input Input Voltage 88VAC to 264VAC Frequency 50Hz to 60Hz Power factor > 0.95 Total harmonic distortion (THD) < 8% Inrush current 230VAC <... -
Page 13: Dc Input
Wrong input voltage electronic lock-out Wrong input voltage polarity shunt diode f. Provided by user. General Efficiency at rated output 12VDC 24VDC 48VDC TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 14: Outputs
Overvoltage 16V Zener diode 32V Zener diode 62V Zener diode General Efficiency at rated output Input-to-output isolation 1000VAC, 50Hz, 1 minute Output-to-chassis isolation 500VAC, 50Hz, 1 minute Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 15: Power And Current Consumption
Power and Current Consumption The specifications in this section refer to the TB9400 base station fitted with a PMU. The performance figures are typical figures. The transmit measurements were carried out with the base station transmitting at the stated RF output power with all front panel fans running. -
Page 16: 120Vac Input
50% RF output power (50W) 2.4A 295VA 290W Maximum RF output power (100W) 3.3A 400VA 395W Standby Single 50W and 100W base station 370mA 44VA Dual 50W base station 490mA 59VA Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 17: 230Vac Input
50% RF output power (50W) 1.3A 310VA 285W Maximum RF output power (100W) 1.7A 395VA 375W Standby Single 50W and 100W base station 510mA 117VA Dual 50W base station 510mA 117VA TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 18: 12Vdc Input
Minimum RF output power (10W) 14.6A 176W 50% RF output power (50W) 23.6A 285W Maximum RF output power (100W) 385W Standby Single 50W and 100W base station 2.0A Dual 50W base station 3.3A Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 19: 24Vdc Input
7.1A 171W 50% RF output power (50W) 11.8A 285W Maximum RF output power (100W) 15.5A 370W Standby Single 50W and 100W base station 975mA Dual 50W base station 1.6A TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 20: 48Vdc Input
3.2A 155W 50% RF output power (50W) 5.5A 265W Maximum RF output power (100W) 7.4A 355W Standby Single 50W and 100W base station 480mA Dual 50W base station 780mA Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 21: Receiver
Digital IF bandwidth 8.06kHz, –3dB IF stages - H and K4 bands Frequencies Analog 70.1MHz Digital 8.66MHz and 0Hz Analog IF bandwidth 9kHz, –3dB Digital IF bandwidth 8.06kHz, –3dB TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 22: Digital Rf
Digital adjacent channel rejection 60dB Digital signal displacement bandwidth 1kHz ≥100dB Digital spurious response attenuation Digital intermodulation response attenuation 85dB Digital blocking rejection 1 to 10MHz 100dB Digital co-channel rejection Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 23: Analog Rf
85dB K4 band 79dB 45dB –– g. Up to 5dB degradation at extremes of switching range and temperature. ≥1kHz Signal displacement bandwidth ≥100dB (ANSI/TIA) Spurious response attenuation ≥90dB (ETSI) TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... - Page 24 K4 band 1–10MHz 100dB (ANSI/TIA) >10MHz 110dB (ANSI/TIA) ±1, ±2, ±5 and ±10MHz 100dB (ANSI/TIA) Co-channel rejection –8dB ≤3dB (ETSI) Amplitude characteristic i. RF Input Level –107dBm to –13dBm. Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017...
-
Page 25: Analog Audio - General
≤150ms typical Response time (open) Analog Audio - Gating Operation SINAD gating Opening level 6dB to 20dB SINAD Accuracy ±3dB RF hysteresis Opening time 60ms typical Closing time 60ms typical TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 26: Transmitter
Transmitter The specifications in this section pertain only to the combination of a TB9400 reciter with a 50W or 100W power amplifier. General Frequency bands B3 band 148MHz to 174MHz H1 band 400MHz to 440MHz H2 band 440MHz to 480MHz... - Page 27 762-776MHz band complies with FCC 47 CFR 27.53(e)(6) and 47 CFR 90.543(a) Modulation emission spectrum TIA-102.CAAB-D paragraphs 3.2.5.1 and 3.2.5.2, LSM, and TIA-102.CCAB paragraph 3.2.5.1 Modulation fidelity <2% TIA-102.CAAA and TIA-102.CCAA Intermodulation better than 65dB TIA-102.CAAA and TIA-102.CCAA (typical) TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017...
-
Page 28: Simulcast
EN 300 113-1 v1.7.1 and EN 300 113-2 v1.5.1 Simulcast Launch time accuracy ±1.5µs a. Launch time offset adjustable in 1µs increments. Deviation accuracy 0.2dB Frequency accuracy <1Hz b. Carrier frequency offset adjustable in 0.1Hz increments. Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 29: Analog Audio - General
300Hz to 3kHz Below limiting within +1, –3dB of a 6dB/octave pre-emphasis curve (ref. 1kHz) Flat response Bandwidth 300Hz to 3kHz Response within +0.5, –1.5dB of output level at 1kHz TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 30: Analog Audio - Ctcss
Frequency error (from ANSI/TIA tones) 0.08% maximum Generated tone distortion 1.2% maximum Generated tone flatness flat across 67Hz to 250.3Hz to within 1dB Modulation level Adjustable Modulated distortion <5% Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 31: Network
Minimum bandwidth to meet jitter requirements on 600kb/s per site up to 5 physical non-fragmenting link. channels a. C plane and U plane are references to telco terminology distinguishing call setup and user traffic. TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 32: Channel Group Size
P25 Trunked Traffic Channel Phase 2 P25 Conventional / 10 a. When channel group size is less than or equal to 14. b. When channel group size is greater than 14. Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 33: System Connections
External General Purpose Digital Inputs Input low threshold < 0.6V Input high threshold >1.2V Input source current <1mA (V = 0V) Continuous input voltage | <30V Transient input voltage | <35V (t <1s) TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 34: 1Pps Timing Reference Input (Bnc)
>1.2V Input termination 470Ω + 5% (AC terminated) Transient input voltage | <15V Frequency 1PPS (required for Simulcast and TDMA) Polarity rising edge represents timing reference Maximum jitter ±1µS Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 35: Miscellaneous
Operating temperature range –30°C to +60°C (–22°F to +140°F) ambient temperature a. Ambient temperature is defined as the temperature of the air at the intake to the cooling fans. TB9400 Specifications Manual Base Station Specifications © Tait Limited July 2017... -
Page 36: Heat Load Values
16.9kg (37.3lb) 2 receivers 19.3kg (42.5lb) 3 receivers 21.7kg (47.8lb) 4 receivers 24.1kg (53.1lb) a. With AC and DC PMU. 1.9.6 Reliability >80,000 hours (based on field returns) MTBF Base Station Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 37: Module Specifications
Module Specifications This chapter provides hardware specifications for the individual modules used in the TB9400 base station: reciter and receiver ■ ■ PMU. ■ Notice The software release notes list known issues or limitations of the base station that may vary from the specifications published in this document. -
Page 38: Reciter And Receiver
Notice This explanation of reciter and receiver product codes is not intended to suggest that any combination of features is necessarily available in any one reciter or receiver. Consult your regional Tait office for more information regarding the availability of specific models and options. -
Page 39: Physical Details
External reference frequency input BNC female 1PPS input BNC female Ethernet RJ45 System inputs and outputs 25-way D-range Dimensions Height 144mm (5.7in) Width 54.6mm (2.1in) Length 321.5mm (12.7in) Weight 2.4kg (5.3lb) TB9400 Specifications Manual Module Specifications © Tait Limited July 2017... -
Page 40: Identifying The Pa
T01-01121-XXXX A = default T01-01121-XXXX A = default a. The actual frequency coverage in this band when used with a K4-band TB9400 re- citer is 762MHz to 776MHz and 850MHZ to 870MHz. Module Specifications TB9400 Specifications Manual © Tait Limited July 2017... -
Page 41: Physical Details
320.6mm (12.6in) Dimensions - 100W PA Height With duct 144mm (5.7in) Without duct 60mm (2.4in) Width 177mm (7.0in) Length 321.8mm (12.7in) Weight 50W PA 2.7kg (6.0lb) 100W PA 4.2kg (9.3lb) TB9400 Specifications Manual Module Specifications © Tait Limited July 2017... -
Page 42: Pmu
Notice This explanation of PMU product codes is not intended to suggest that any combination of features is necessarily available in any one PMU. Consult your regional Tait office for more information regarding the availability of specific models and options. -
Page 43: Physical Details
3% drop at maximum load over the required length of lead. DC output - low current (from auxiliary power supply) Connector type Phoenix MVSTBR2.5HC/2-ST/5.08 female Flexible wire size 20AWG to 11AWG TB9400 Specifications Manual Module Specifications © Tait Limited July 2017... -
Page 44: Compliance Standards
These standards are listed on the following page. The standards quoted in these specifications are applicable only to equipment operating as an integral part of a TB9400 base station. You can obtain further details of test methods and the conditions which apply for compliance testing in all countries from Tait. - Page 45 The following table shows which variants of the TB9400 have been tested RF and EMC Compliances and approved to the listed standards. A tick indicates the compliance has been received, a date indicates when the compliance is expected to be received, and a blank cell indicates there are currently no plans to apply for this compliance.
- Page 46 The TB9400 base station has been tested and approved to the following Safety and Environmental standards. Compliances EN 60950-1 (ETSI) UL 60950-1 (E223047) AS/NZS 60950-1, Q090114 Low Pressure (Altitude) MIL-STD-810G Method 500.5 Procedure 2 Humidity MIL-STD-810G Method 507.5 Procedure 2 Vibration MIL-STD-810G Method 514.6 Procedure 1...
-
Page 47: Appendix A - Frequency Response Diagrams
Appendix A – Frequency Response Diagrams This appendix shows the transmitter and receiver frequency response diagrams. TB9400 Specifications Manual Appendix A – Frequency Response Diagrams © Tait Limited July 2017... - Page 48 Figure A.1 Receiver frequency response Receiver Frequency Response − Deemphasis Actual Response TIA−603−D maximum TIA−603−D minimum −10 −20 Frequency − Hz Appendix A – Frequency Response Diagrams TB9400 Specifications Manual © Tait Limited July 2017...
- Page 49 Actual Response TIA−603−D maximum TIA−603−D minimum −10 −20 Frequency − Hz Transmitter Frequency Response − Flat Actual Response TIA−603−D maximum TIA−603−D minimum −10 −20 Frequency − Hz TB9400 Specifications Manual Appendix A – Frequency Response Diagrams © Tait Limited July 2017...
