- Page 1 TB7100 base station Installation and Operation Manual MBA-00005-04 Issue 4 December 2004...
- Page 2 Tait Radio Communications http:// www.taitworld.com Corporate Head Office Tait North Asia New Zealand Regional Head Office - Hong Kong Tait Electronics Ltd Tait Mobile Radio (Hong Kong) Ltd P.O. Box 1645 E-mail: hongkong@taitworld.com Christchurch Beijing New Zealand Tait Mobile Radio (Hong Kong) Ltd E-mail: info@taitworld.com...
- Page 3 Contents Preface Description Controls Configuration Installation Connection Functional Description Circuit Description TB7100 Installation and Operation Manual © Tait Electronics Limited December 2004...
- Page 4 Copyright All information contained in this manual is the property of Tait Electronics Ltd. All rights are reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated, stored, or reduced to any electronic medium or machine-readable form, without prior written permission from Tait Electronics Ltd.
- Page 5 Installation This chapter describes how to install the TB7100 base station in a standard 19 inch rack or cabinet. It also provides some general information on safety precautions and site requirements. We recommend that you read the entire chapter before beginning the installation.
- Page 6 To ensure safe operation the TB7100 base station equipment must be correctly grounded as described in these installation instructions. 1.2.4 Installation and Servicing Personnel The TB7100 base station should be installed and serviced only by qualified personnel. Regulatory Information 1.3.1 Distress Frequencies The 406 to 406.1MHz frequency range is reserved worldwide for use by...
- Page 7 Environmental Conditions 1.4.1 Operating Temperature Range The operating temperature range of the TB7100 base station is –30°C to +60°C (–22°F to +140°F) ambient temperature. Ambient temperature is defined as the temperature of the air at the intake to the cooling fans.
- Page 8 Installation TB7100 Installation and Operation Manual © Tait Electronics Limited December 2004...

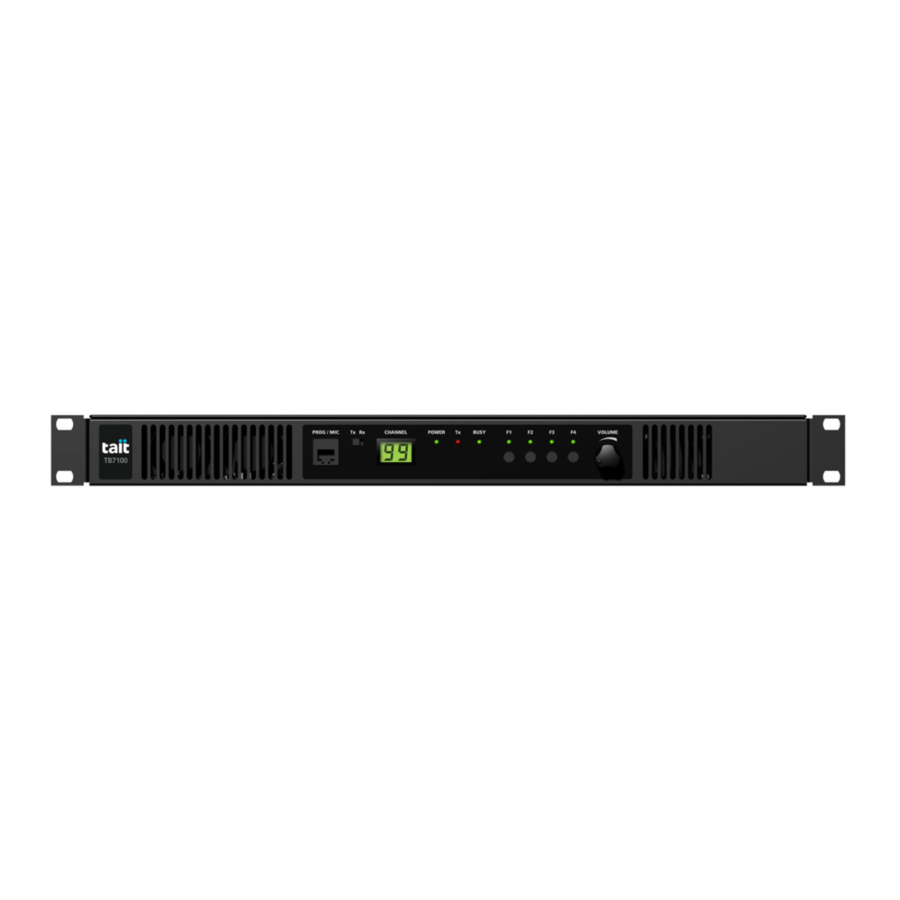

- Page 9 Controls and Connections Figure 2.1 TB7100 base station controls and connections Front View cooling fans programming port Tx/Rx programming indicator LEDs function buttons speaker volume speaker selector switch Rear View audio level set-up RS-232 DC input system interface RF input (without internal duplexer)
- Page 10 Controls and Connections TB7100 Installation and Operation Manual © Tait Electronics Limited December 2004...
