Thorax Truss Pads; Abduction Wedge - SORG Tilty Vario User Manual

Tilty Vario
3.8

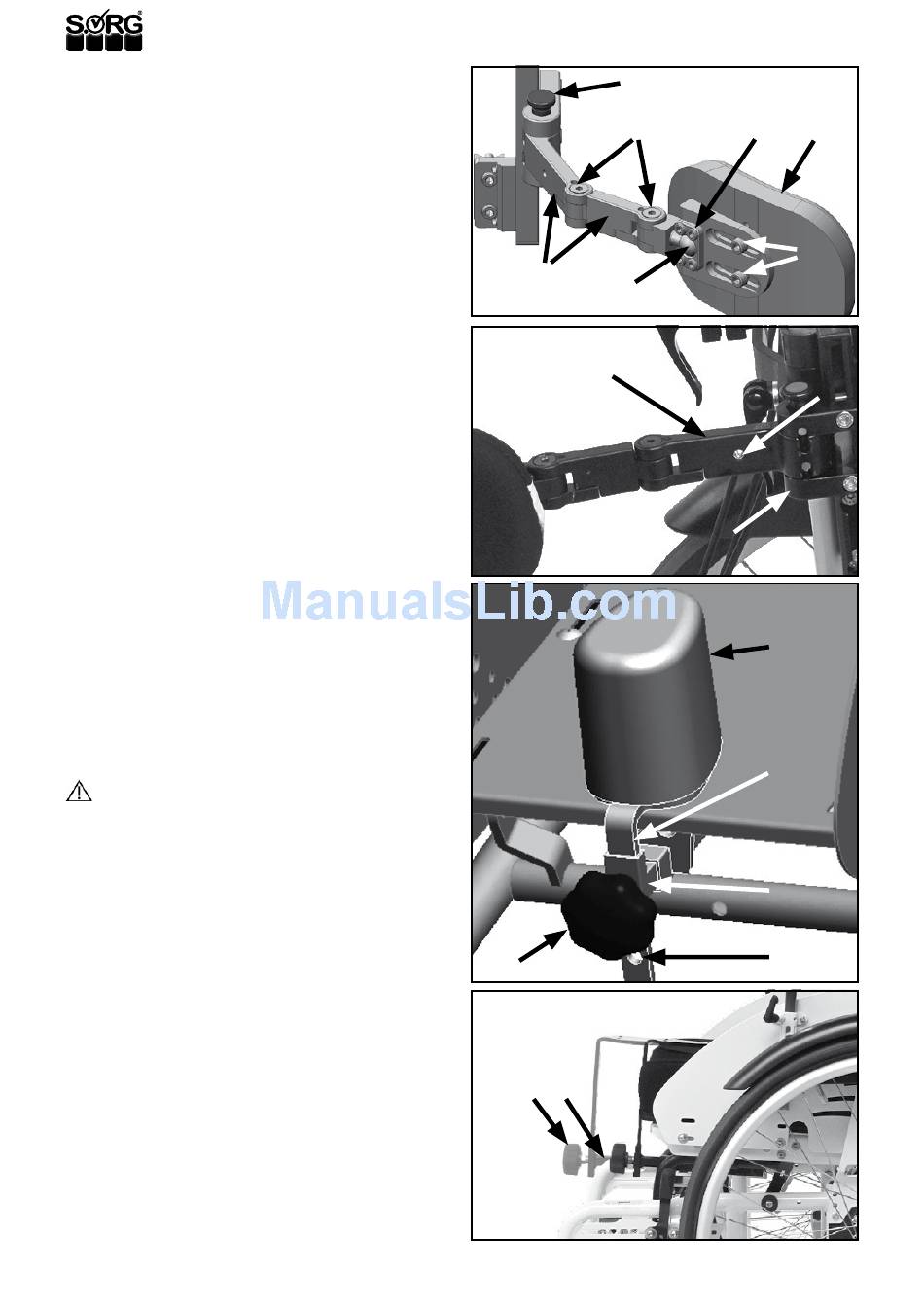

THORAX TRUSS PADS

(1) To open/close:
• Press the button (A) and
• at the same time, fold the truss pad arm (B)
backward or forward.
• It snaps into place when you release the but-
ton (A).
(1) To adjust the arm parts (B) :
• Close the truss pad.
• Loosen the screws (C) of the arm parts (B)
• and place them in the desired position.
• Retighten the screws (C).
(1) To set the cushions (D):
• Loosen the screws (E) of the cushions (D)
• and place the cushions (D) in the desired
position.
• Loosen the four screws (F) and
• turn the cushion (D) on the joint ball (G) to the
wanted tilt.
• Retighten the screws (F).
(2) To set the stop on the tuss pad holder:
• Close the truss pad and
• turn (from the outside) the set screw (A) open
or closed as need so that the arm (B) is in the
holder (C) without play, but the truss pad can
still be opened and closed without a problem.
3.9

ABDUCTION WEDGE

The abduction wedge is mounted under the seat
plate. The height can be adjusted in 1,5 cm intervals,
the distance is infinitely variable.
ATTENTION
Before getting in and out the abduction wedge must
be removed.
(3) To adjust the height:
• Remove the star knob screw (A),
• move the cushion(B) with the holder (C) along
the row of holes (D) to the desired height.
• Replace and retighten the star knob screw (A).
(4) To adjust the distance:
• Loosen the star knob screw (A),
• place the holder (E) to the desidred distance
• retighten the star knob screw (A).
30
(1) (A)
(C)
(B)
(G)
(2)
(B)
(3)
(A)
(4)
(A) (E)
(F) (D)
(E)
(A)
(C)
(B)
(C)
(E)
(D)
