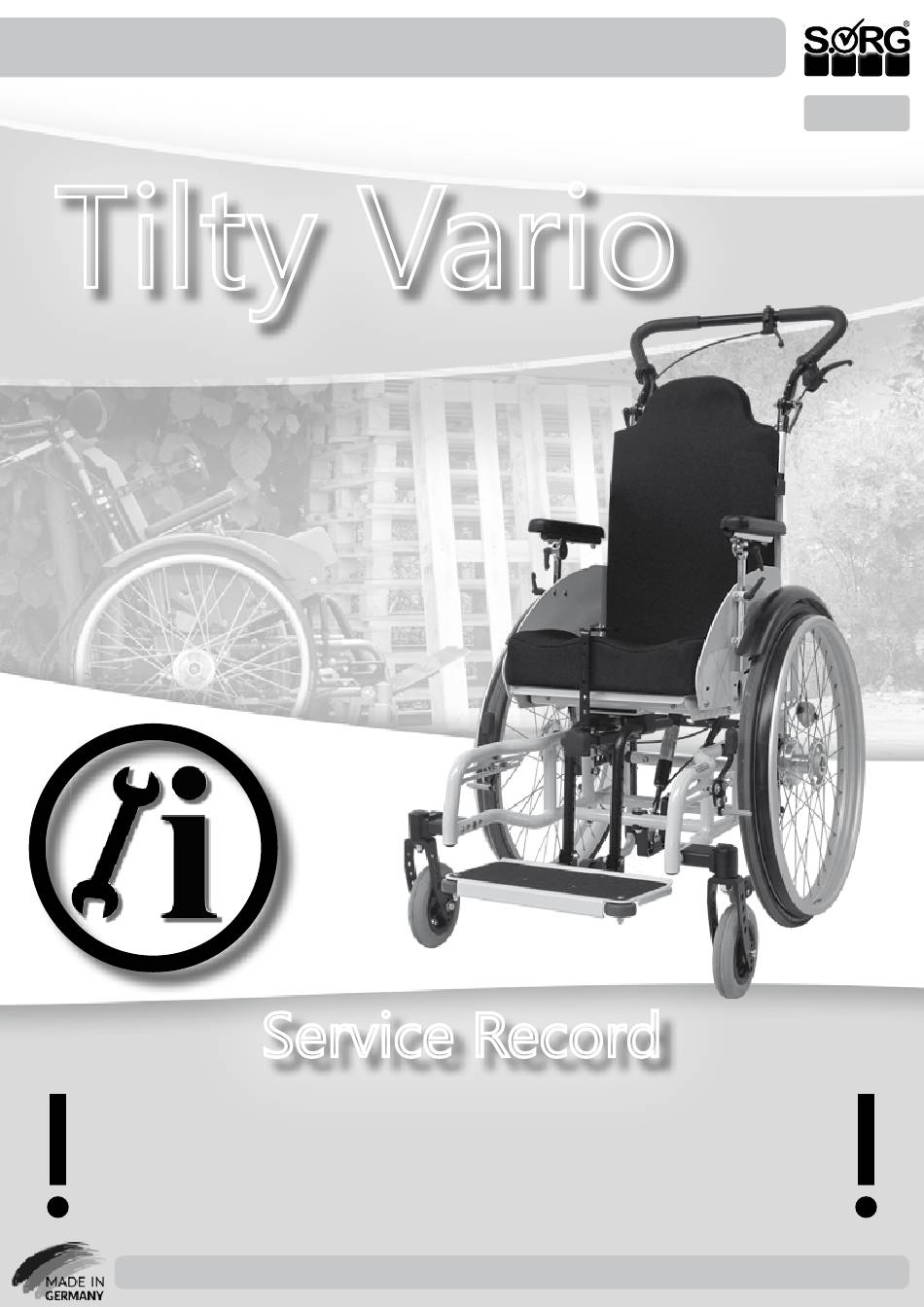

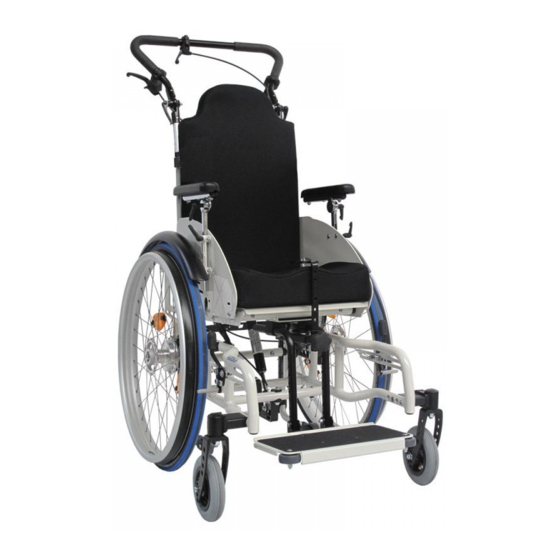

Service Record Tilty Vario
ENG
Tilty Vario
Service Record
In the following all individual adjustments of the wheelchair are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualified rehab
consultant.
2019-07-16
Service Record Tilty Vario
Besondere Menschen, besondere Lösungen.
Unique people, unique solutions.
1 of 36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tilty Vario and is the answer not in the manual?

Questions and answers

Related Manuals for SORG Tilty Vario

Summary of Contents for SORG Tilty Vario

  • Page 1 Service Record Tilty Vario Tilty Vario Service Record In the following all individual adjustments of the wheelchair are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant. 2019-07-16 Service Record Tilty Vario Besondere Menschen, besondere Lösungen.
  • Page 2 All texts, pictures and graphics underlie co- pyright protection. All rights, including co- pying, publishing, editing and translating, remain reserved. © by SORG Rollstuhltech- nik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. Our terms and conditions can be found on our order forms and at www.sorgrollstuhl-...

  • Page 3: Table Of Contents

    3.9 Assembly group truss pads 3.9.1 Classification 3.9.2 Vertical setting 3.9.3 Horizontal setting 3.9.3 Fine adjustment of the truss pad holder 3.9.4 Adjusting to the user 3.10 Assembly group outdoor front end 2019-07-16 Service Record Tilty Vario 3 of 36...
  • Page 4 4 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 5: Wheelchair Overview

    19 Locking pin for locking the back gas pressure spring 20 gas pressure spring 21 Eccentric tensioner for the Height adjustment of the push handle 22 Release lever seat tilt 23 brake lever drum brake 2019-07-16 Service Record Tilty Vario 5 of 36...

  • Page 6: General Information

    • Phillips screw driver • flat head screw driver • plastic mallet • side cutter • threadlocker (fluid) • bicycle inner tube repair kit • work bench/jaw vise with rubber pads 6 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 7: Explanation Of Symbols

    Turn counter-clockwise view from the back steps to be done at the same time fasten parts steps to be done after each other remove parts steps to be done on both sides 2019-07-16 Service Record Tilty Vario 7 of 36...

  • Page 8: General Safety Instructions

    In combination of wheelchair and electric auxiliary drive, certain strains can occur which can lead to damage to the wheelchair. Slowly approach obstacles and carefully overcome them so that little force is applied to the caster, driving wheel and wheelchair as a whole. 8 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 9: Assembly Groups

    180° in order to reach a higher position. For this, proceed in the same manner. After every change on the driving wheels the effectiveness of the knee lever brake must be checked and, if necessary, newly adjusted. 2019-07-16 Service Record Tilty Vario 9 of 36...

  • Page 10: Position Of The Rear Wheels

    After every change on the driving wheels the effectiveness of the knee lever brake must be checked and, if necessary, newly adjusted. 10 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 11: Camber

    (A). (tightening torque nuts M18 fitting 35 Nm) After every change on the driving wheels the effectiveness of the knee lever brake must be checked and, if necessary, newly adjusted. 2019-07-16 Service Record Tilty Vario 11 of 36...

  • Page 12: Casters

    Be sure to check that after moving the casters, the caster adapter is still at a right angle. If ne- cessary, you must adjust the caster adapter as stated above. 12 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 13: Assembly Group Seat

    (3) and screw the seat plate back on in the alternate holes (A+B+C). When moving the seat plate forward, the leg support stays in its original position. To correct this see chapter: leg supports. 2019-07-16 Service Record Tilty Vario 13 of 36...

  • Page 14: Changing The Seat Width

    (6) With a firm curved back plate replace the old one with a new one (spare part) • and screw it on with the four screws (A). Be sure to check all screws for a firm fit! 14 of 36 Service Record Tilty Vario 2019-07-16...
  • Page 15 3.2 Assembly Group Seat 2019-07-16 Service Record Tilty Vario 15 of 36...

  • Page 16: Assembly Group Back

    With an adjustable back cover the fleece (A) and Velcro (B) parts must always overlap a minimum of 8 cm per side. min. 8 cm min. 8 cm je Seite je Seite 16 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 17: Assembly Group Belt System

    This is why you need to adjust the height of the top belt holder only with the child/user in the wheelchair. Please make sure that the belts do not touch the neck of the child/user - ingury risk. 2019-07-16 Service Record Tilty Vario 17 of 36...

  • Page 18: Assembly Group Leg Support

    (D), turn 360° under the foot plate with a hori- • replace all four screws (C) and zontal seat position without any problems. If • tighten them. necessary, correct the seat height. 18 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 19: Foot Plate: Can Be Elevated, Continuos/ Divided

    (B) up, • turn the screw in or out as needed • turn out= foot plate angle <90° • turn in = foot plate angle >90° (foot plate seen from the bottom) 2019-07-16 Service Record Tilty Vario 19 of 36...

  • Page 20: Leg Rest

    Setting the tilting angle: • Loosen the screws (C) of the cushion holder on both sides inside and outside, • place the cushion (B) in the desired po- sition • and retighten the screws (C). 20 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 21: Assembly Group Side Guard

    (B). • To adjust the angle loosen the clamp lever (C), • move the arm cushion to the desired po- sition • and retighten the clamp lever (C). 2019-07-16 Service Record Tilty Vario 21 of 36...

  • Page 22: Assembly Group Brake

    (A) and wheel cover: • Loosen the screws (B) on both sides, • move the whole brake pad with opened brake to the needed position (distance see above) and • retighten all screws (B). 22 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 23: Cable Brake

    (2) To set the length of the brake lever (A): • Loosen both screws (B), if necessary on both sides, • align the brake lever (A) • and retighten all the screws (B). 2019-07-16 Service Record Tilty Vario 23 of 36...

  • Page 24: Drum Brake

    Bowden cables, • defected Bowden cable, • dirty brake pads/brak shoes. The wheelchair with passenger (max. load capacity) must stand securely, with drawn brake, on a ramp with a 12,3% (= 7°) decent. 24 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 25: Assembly Group Anti-Tipper

    • replace the anti-tipper wheel and holder back on the anti-tipper bail (C), • place the screw (B) in the hole (D) • and tighten the screw (B). 2019-07-16 Service Record Tilty Vario 25 of 36...

  • Page 26: Assembly Group Truss Pads

    Remove the cover, • remove both screws (A), • displace the cushions (B) into the alter- nate holes (C), • replace the screws (A) • and tighten them. • After, replace the covers. 26 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 27: Horizontal Setting

    Place the truss pads around the user, • adjust the joints to the needed position • and tighten all joint screws (7A). • The ball joint is then fixated by tightening the four screws (6B). 2019-07-16 Service Record Tilty Vario 27 of 36...

  • Page 28: Assembly Group Outdoor Front End

    With this, the tilting behaviour of the wheelchair and the follow-up of the large caster are massively affected, which can cause unwanted wave like movements in curves (which has a similar affect as track fixation). 28 of 36 Service Record Tilty Vario 2019-07-16...
  • Page 29 2019-07-16 Service Record Tilty Vario 29 of 36...
  • Page 30 30 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 31: Repairs And Maintenance

    Adjust seat tilt to 90° (if available) • If necessary, pack removable textile parts in foil or similar • Secure the wheelchair from rolling away and getting dirty • Store in a dry environment without aggressive environmental influences. 2019-07-16 Service Record Tilty Vario 31 of 36...

  • Page 32: Reinstatement

    (if available) Clean the wheelchair and oil all moving parts. If you notice any defects during maintenance, please contact your specialist retailer im- mediately and do not use the wheelchair anymore. 32 of 36 Service Record Tilty Vario 2019-07-16...
  • Page 33 Locking mechanisms (tripod springs of push handles, quick-release axles, eccentric clamps, etc.) checked for functionality, anti-tipper checked for firm fit and fuctionality. Oiling: moving parts and bearings oiled Final check: functional check of all mechanical adjusting devices carried out. 2019-07-16 Service Record Tilty Vario 33 of 36...

  • Page 34: Technical Specifications

    3 years at not excessive demand life cycle of the wheelchair 5 years Normative requirements The wheelchair meets the requirements of ISO 7176-8 and the require- ments against ignition. 34 of 36 Service Record Tilty Vario 2019-07-16...

  • Page 35: Meaning Of Labels

    5.2 Meaning of labels The meaning of the individual labes is explained in the texts at the respective place. If the type plate is damaged or gets lost, a new one can be ordered from SORG Rollstuhltechnik. Type plate: manufacturer logo...
  • Page 36 Service Record Tilty Vario SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de company stamp...
