Instructions for use Tilty Vario
ENG
Tilty Vario

Instructions for use

2019-08-16
Instructions for use Tilty Vario
Unique people, unique solutions
Unique people, unique solutions
1 of 48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tilty Vario and is the answer not in the manual?

Questions and answers

Related Manuals for SORG Tilty Vario

Summary of Contents for SORG Tilty Vario

  • Page 1: Instructions For Use

    Instructions for use Tilty Vario Tilty Vario Instructions for use 2019-08-16 Instructions for use Tilty Vario Unique people, unique solutions Unique people, unique solutions 1 of 48...
  • Page 2 Imprint SORG Rollstuhltechnik GmbH + Co. KG Benzstrasse 3-5 68794 Oberhausen-Rheinhausen / Germany Phone +49 7254-9279-0 +49 7254-9279-10 E-Mail info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de Revision status 2019-08-15 Technical status Technical changes and misprints reserved. The pictures in this Instructions for use can differ from the actual equipment components.

  • Page 3: Table Of Contents

    3.6.4 Reverse-roll locking 3.7 Handling anti-tipper 3.7.1 General information regarding anti-tipper 3.8 Handling therapy table 3.8.1 General information regarding therapy table 3.9 Handling arm pad 3.9.1 General information regarding arm pad 2019-08-16 Instructions for use Tilty Vario 3 of 48...
  • Page 4 4 of 48 Instructions for use Tilty Vario 2019-08-16...

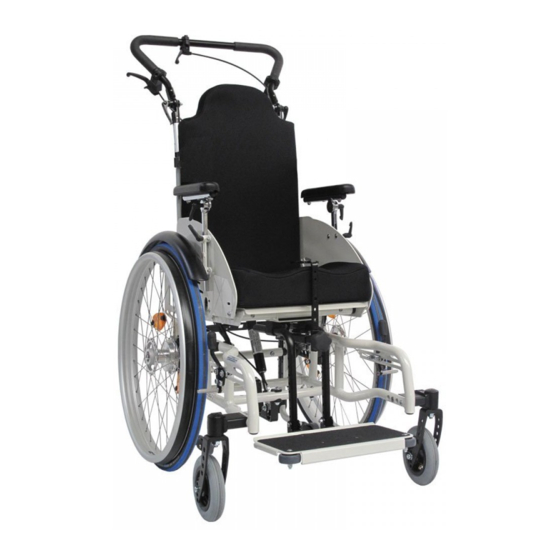

  • Page 5: Wheelchair Overview

    20 Gas pressure spring for back angle-adjustment 21 Eccentric clamp for height adjustment of the push bail 22 (Seating unit) tilt mechanism tripping lever 23 Drum brake operating lever 2019-08-16 Instructions for use Tilty Vario 5 of 48...

  • Page 6: General Information

    2 General information 2.1 Preface A warm welcome to the SORG family – many thanks for the trust you have placed in us and for choosing our product. This wheelchair has been individually tailored to meet your specific requirements. You will find the usage and adjustment instructions below so that you can use the wheelchair in everyday life without tools.

  • Page 7: Signs And Symbols

    Steps to be taken on both sides 2019-08-16 Instructions for use Tilty Vario 7 of 48...

  • Page 8: Intended Purpose

    2 General information 2.2.2 Intended purpose The Tilty Vario is a growable active wheelchair with a tilting function for children, young people and adults intended for indoor and outdoor use. km/h The wheelchair is designed solely for the transport of the person for whom it has been specially adapted by a qualified specialist dealer.

  • Page 9: Contraindication

    • Arm rests: loss during transport • Seat shell back guide: loss or misalignment of the seat shell during transport possible • Push bail: loss or missing pushing option during transport 2019-08-16 Instructions for use Tilty Vario 9 of 48...
  • Page 10 The wheelchair must always be carried by the frame only, never by the seat shell, the extendable push handle(s), push bail, handle bar, leg supports and/or the footrest(s)! 90° max 7° 10 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 11: Loading And Transport Without Occupants

    The Tilty Vario has been successfully tested in accordance with ISO 7176-19 and is therefore approved for use as a seat in a motor vehicle provided that it is fit- ted with the necessary restraint systems.
  • Page 12 ISO 7176-19. No transport with the wheelchair facing sideways! Immediately contact your authorised dealer after a collision to check the carriage, frame and brakes and have any damage repaired by a specialist without delay. 12 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 13: Other Important Information

    > 42°C When configuring the wheelchair, pelvic restraints (lap belts as positioning aids) can be option- ally purchased via the SORG order sheets or by ordering from the replacement parts catalogues. Your specialist dealer will carry out the assembly. The product may interact with electromagnetic fields (e.g. shop anti­theft devices) in individual cases.
  • Page 14 Only approach obstacles slowly and overcome them with great care to ensure that little force is applied to the casters, driving wheel and wheelchair as a whole. 14 of 48 Instructions for use Tilty Vario 2019-08-16...
  • Page 15 2019-08-16 Instructions for use Tilty Vario 15 of 48...

  • Page 16: Handling

    (2) After insertion, the locking ball (A) must be visibly protruding. Pull at least 1x after each insertion to test whether the quick-release axle is engaged. It should no longer be possi- ble to pull the wheels outwards. 16 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 17: Double Hand Rim-Wheels

    3.1 Handling driving wheel 3.1.4 Double hand rim-wheels Insert: 90° (3a) (3b) Remove: Proceed accordingly in reverse order (2a) (2b) 2019-08-16 Instructions for use Tilty Vario 17 of 48...

  • Page 18: Handling Swivel Caster

    Incorrectly adjusted swivel casters or excessive speed can cause the casters to flutter. Immediately slow down at the first sign of fluttering and have the swivel casters readjusted by a specialist dealer. 3.2.2 Caster track lock Unlock: 90° Lock: 90° 18 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 19: Handling Seat And Back

    Only activate the (seating unit) tilt mechanism or angle adjustment when stationary with the brakes applied. 3.3.2 (Seating unit) tilt mechanism Tilting simple gas pressure spring: Tilting double gas pressure spring: 2019-08-16 Instructions for use Tilty Vario 19 of 48...

  • Page 20: Back With Gas Pressure Spring

    3.3 Handling seat and back 3.3.3 Back with gas pressure spring Shift: 20 of 48 Instructions for use Tilty Vario 2019-08-16...
  • Page 21 3.3 Handling seat and back Folding down back with gas pressure spring: Folding open back with gas pressure spring: Proceed accordingly in reverse order: (1a) (1b) 2019-08-16 Instructions for use Tilty Vario 21 of 48...
  • Page 22 3.3 Handling seat and back Adjust angle for back with gas pressure spring: 22 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 23: Back With Raster

    3.3 Handling seat and back 3.3.4 Back with raster Shift: The anti-tipper must always be activated before a new back angle position is used. (3a) (3b) Fold down (straighten: proceed accordingly in reverse order): 2019-08-16 Instructions for use Tilty Vario 23 of 48...

  • Page 24: Back Extension

    3.3 Handling seat and back 3.3.5 Back extension Pull out (lower: proceed accordingly in reverse order): The lowerable back extension is not suitable as a headrest in a motor vehicle! 24 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 25: Handling Pushing Aid

    It must not be possible to move the pushing aids in the intake with the eccentric clamp(s) in the closed position. Set the eccentric clamp: (2b) (2a) Increase clamping force Reduce clamping force (4a) (4b) 2019-08-16 Instructions for use Tilty Vario 25 of 48...

  • Page 26: Push Bail

    3.4 Handling pushing aid 3.4.2 Push bail Set height: (4a) (4b) Insert (remove: proceed accordingly in reverse order): (4a) (4b) 26 of 48 Instructions for use Tilty Vario 2019-08-16...
  • Page 27 3.4 Handling pushing aid Adjust angle: 2019-08-16 Instructions for use Tilty Vario 27 of 48...

  • Page 28: Handling Leg Support

    3.5 Handling leg support 3.5.1 General information regarding leg supports Types of leg supports and their handling: Model 1: Model 2: Model 3: 28 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 29: Foldable Footrest With Locking Mechanism

    Lock (unlock: proceed accordingly in reverse order): 90° As the occupant, make sure that you do not lean too far out of the wheelchair when han- dling the locking mechanism. 3.5.3 Standard leg support Set height: 2019-08-16 Instructions for use Tilty Vario 29 of 48...

  • Page 30: Leg Supports That Can Be Elevated, Divided Or Be Brought Into One Piece

    3.5 Handling leg support 3.5.4 Leg supports that can be elevated, divided or be brought into one piece Set height: Set height: 3.5.5 Calf rest Set height: 30 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 31: Handling Brake

    3.6.2 Wheel lock The knee lever and cable control brakes are wheel locks and are not suitable for slowing down when moving. Locking the wheel with the knee lever brake: (2a) (2b) 2019-08-16 Instructions for use Tilty Vario 31 of 48...

  • Page 32: Drum Brake

    Lock: (2a) (2b) Release: 3.6.4 Reverse-roll locking Not suitable in combination with auxiliary drives. max 7°/ 12% Activate (deactivate: proceed accordingly in reverse order): 32 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 33: Handling Anti-Tipper

    Only rotate the anti-tipper 180° from deactivated position to active position. Avoid full revo- lutions in one direction, since otherwise the tension spring inside the anti-tipper will be dam- aged, which may result in the anti-tipper losing its functionality. 2019-08-16 Instructions for use Tilty Vario 33 of 48...

  • Page 34: Handling Therapy Table

    3.8 Handling therapy table 3.8.1 General information regarding therapy table Connection to the seat shell via the armrests. Set depth or remove (insert: proceed accordingly in reverse order): 34 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 35: Handling Arm Pad

    3.9 Handling arm pad 3.9.1 General information regarding arm pad Adjust angle: Infinitely variable height adjustment: 2019-08-16 Instructions for use Tilty Vario 35 of 48...
  • Page 36 3.9 Handling arm pad Set height with raster: 36 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 37: Handling Headrest

    3.10 Handling headrest 3.10.1 General information regarding headrest Set distance: Set height: 2019-08-16 Instructions for use Tilty Vario 37 of 48...

  • Page 38: Handling Abduction Wedge

    3.11 Handling abduction wedge 3.11.1 General information regarding abduction wedge Set distance: Set height: 3.12 Lateral truss pad handling 3.12.1 General information regarding lateral truss pad Open/close: 38 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 39: Handling One-Hand Steering Aid

    Activate (deactivate: proceed accordingly in reverse order): The swivel casters must be set to the “straight ahead” position - this is the only way to activate or deactivate one-hand steering. 90° 90° 2019-08-16 Instructions for use Tilty Vario 39 of 48...
  • Page 40 3.13 Handling one-hand steering aid Set: 40 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 41: Handling Steering & Pushing Aid

    Pay attention to the max. load of the wheelchair, this also applies to the steering max. and pushing aid. km/h Mount (dismount: proceed in reverse order at Fig. 4): 90° (6a) (6b) 90° 2019-08-16 Instructions for use Tilty Vario 41 of 48...

  • Page 42: Repairs And Maintenance

    • Pack detachable textile parts in foil or the like, if necessary • Secure the wheelchair against rolling away and contamination • Storage in a dry place without aggressive environmental influences 42 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 43: Reinstatement

    (if present). Thoroughly clean and oil all moving parts. Please contact your dealer immediately if you notice any defects during maintenance and do not use the wheelchair any longer. 2019-08-16 Instructions for use Tilty Vario 43 of 48...
  • Page 44 Locking mechanisms (springs of the push handles, quick-release axles, eccentric clamps, etc.) checked for functionality, Anti­tipper checked for secure fit and functionality. Oil: Moving parts and bearings oiled Final check: Functional check of all mechanical adjustment devices carried out 44 of 48 Instructions for use Tilty Vario 2019-08-16...

  • Page 45: Technical Data

    1.2-2.2 Usage life 3 years in case of non-excessive strain Service life 5 years Normative requirements The wheelchair complies with the requirements of ISO 7176-8 and the requirements against ignition. 2019-08-16 Instructions for use Tilty Vario 45 of 48...

  • Page 46: Meaning Of Labels

    5.2 Meaning of labels The meaning of the individual labels can be directly derived from the text at the corresponding position. A new nameplate can be obtained from SORG Rollstuhltechnik if the original one is lost or dam- aged. Type plate:...

  • Page 47: Verification Of Yearly Inspection

    Date/ Retailer's signature yearly inspection conducted according to Stamp: check list (operating year 4) Remarks: Date/ Retailer's signature yearly inspection conducted according to Stamp: check list (operating year 5) Remarks: Date/ Retailer's signature 2019-08-16 Instructions for use Tilty Vario 47 of 48...
  • Page 48 Tilty Vario Instructions for use SORG Rollstuhltechnik GmbH + Co. KG Benzstrasse 3-5 68794 Oberhausen-Rheinhausen / Germany Germany Phone +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de Company stamp www.sorgrollstuhltechnik.de...
