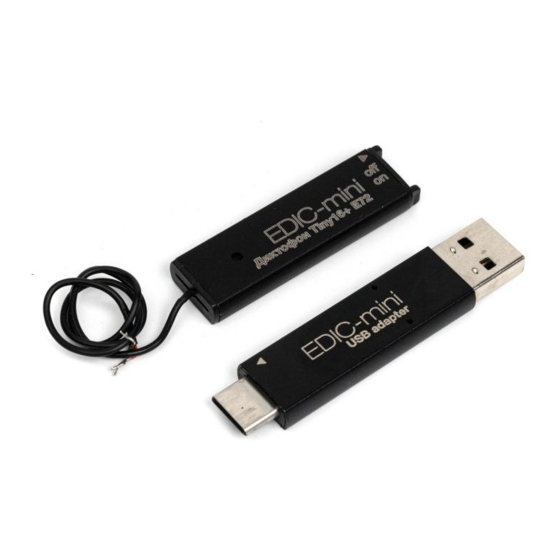

Digital voice recorders
of EM Tiny+, Tiny16+ series
Operation manual
Contents
Overlook................................................................................................3
1. Purpose...............................................................................................3
2. Features..............................................................................................3
3. Short description....................................................................................4
4. Technical Characteristics.........................................................................4
5. Recording duration.................................................................................5
Operation the recorder..............................................................................6
6. Installing and replacing batteries...............................................................6
7. Supplying power for E71, E72, E84............................................................6
8. Start and Stop recording..........................................................................6
9. Playing back and uploading the PC...........................................................7
9.1. Uploading from the B70 Recorder...........................................................9
Using all functions of the recorder............................................................9
10. Setting Microphone Amplification for Tiny16+............................................9
11. Timers .............................................................................................10
12. Voice Activation System........................................................................11
Advertisement
Table of Contents
Related Manuals for EDIC-mini EM Tiny Plus Series
Summary of Contents for EDIC-mini EM Tiny Plus Series
-
Page 1: Table Of Contents
Digital voice recorders of EM Tiny+, Tiny16+ series Operation manual Contents Overlook…………………………………………………………………………….……..3 1. Purpose…………………………………………………………………………………..3 2. Features………………………………………………………………………………….3 3. Short description…………………………………………………………………………4 4. Technical Characteristics…………………………………………………………….…4 5. Recording duration………………………………………………………………………5 Operation the recorder……………………………………………………………….…..6 6. Installing and replacing batteries………………………………………………………6 7. Supplying power for E71, E72, E84………………………………………………...…6 8. -
Page 2: Circular Recording
13. Configuring VAS……………….………………………………………………….…11 14. Circular Recording ……………….……………………………………………...…12 15. Charging and Battery Maintenance ..............13 16. Recording Settings ……………….…………………………………………………14 Appendix ................. 14 Technical Support ..............16... -
Page 3: Overlook
Overlook 1. Purpose Voice recorders of the Edic-mini Tiny (16) + series are professional devices intended for making high quality record of voice messages into built- in flash memory. The recordings can be further uploaded onto the PC. These voice recorders feature really unique characteristics (the world's smallest size, maximum autonomy, high acoustic sensitivity etc). -
Page 4: Short Description
3. Short description The recorder is equipped with Voice activation system (VAS) enabling to compress pauses efficiently in messages therefore saving considerably the recorder's memory. When uploading records onto the PC the duration of pauses can be restored in the form of silence or deleted depending on the settings specified. -
Page 5: Recording Duration
8,11,16, 22 kHz Sampling rate (for Tiny+) 8, 11, 13,3, 20 kHz Sampling rate (for Tiny16+) 100 Hz...10 kHz Frequency band up to 7 Mb/s Exchange rate Acoustic sensitivity for Tiny+ Acoustic sensitivity for Tiny16+ 10 bit Bitrate of ADC for Tiny+ 16 bit Bitrate of ADC for Tiny16+ from 0 to +40 °C... -
Page 6: Operation The Recorder
Operation the Recorder 6. Installing and replacing batteries Note! Only for recorders with replaceable battery (B-type models) Before starting, install the supplied battery. The LED flashes 3 times and it will be on for about 40 sec. Now the recorder is ready to start operating. When installing, always observe polarity (marking on the recorder's case corresponds to the one on the battery). -
Page 7: Playing Back And Uploading The Pc
20 - 80% 50 - 75% 2 - 20% 25 - 50% 1 - 25% The interval between the first and second series of flashes is approximately 4 seconds, and between the second and first is about 8 seconds. Note that in battery recorders the first series of flashes shows battery charge at the time the recorder has been activated and is not controlled during recording. - Page 8 Both programs including instructions built-in memory of the recorder and operate under Windows (SP2, SP3), Windows Vista/7/8/10. Newer versions are always available on the website http://www.ts-market.com Note! For recorders with replaceable battery (B-type models) the battery should be inserted. Otherwise the Recorder may not be detected by computer. 1.
-
Page 9: Uploading From The B70 Recorder
9.1. Uploading from the B70 recorder 1. From page of the B70 recorder on our web-site www.ts-market.com, from section Product files (Software) download folder «B70 soft» to the PC. 2. Unzip the folder and install (using PC administrator name) the Recorder's driver, file B70_DrvSetup_1_0.exe. -
Page 10: Timers
enables it to automatically adjust amplification according to the sound level. That makes it possible to perfectly record very loud sounds and amplify silent ones. Choose suitable for you AGC level from pre-installed: amplification without AGC; • AGC1 – for recording in a quiet room; •... -
Page 11: Voice Activation System
12. Voice Activation System (VAS) Voice Activation System (VAS) can significantly (up to 100 times if properly configured) reduce both memory consumption and energy consumption from the power source. The principle of VAS is as follows: after the user starts recording, recorder starts tracing... -
Page 12: Circular Recording
rustle is enough for the recorder to start recording). The best of VAS is achieved experimentally. You can start by setting VAS level at - 20 dB (after you have changed the settings, do not forget to press the button «Apply changes to the Recorder»). -
Page 13: Charging And Battery Maintenance
circular record. 15. Charging and Battery Maintenance Note! Only for recorders with rechargeable battery (A and S-type models) The battery starts charging automatically when you connect the recorder to the USB- port of the computer. Full charging takes 3 hours (while charging LED is flashing gradually with the interval of 5 seconds). -
Page 14: Recording Settings
Connect recorder to the PC Hold down the Reset button within 10 second After 10 minutes, with recorder connected to PC, turn the switch to Off position and then press Reset button once. Leave the recorder to charge for 3 hours This problem will be solved in next firmware upgrade, which you will be able to download from our web-site www.ts-market.com 16. - Page 15 Trouble Trouble Possible Solution Symptom Faint LED The recorder is Replace the battery is permanently unresponsive to the (for battery recorders) user’s activity Press the Reset button for 2 seconds or switch off and then back on the recorder's power (for rechargeable battery recorders) When connecting The recorder is...
-
Page 16: Technical Support
Technical Support Technical support is available by e-mail: support@ts-market.com constantly working improve software documentation. You ca n a l w a ys d o w n l o a d latest version software for free and get information on products on our website: http://www.ts- market.com.
