EDIC-mini Card Series Short Operating Instruction

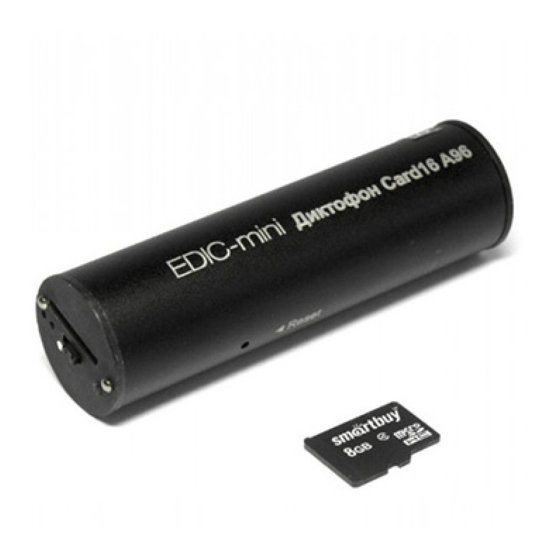

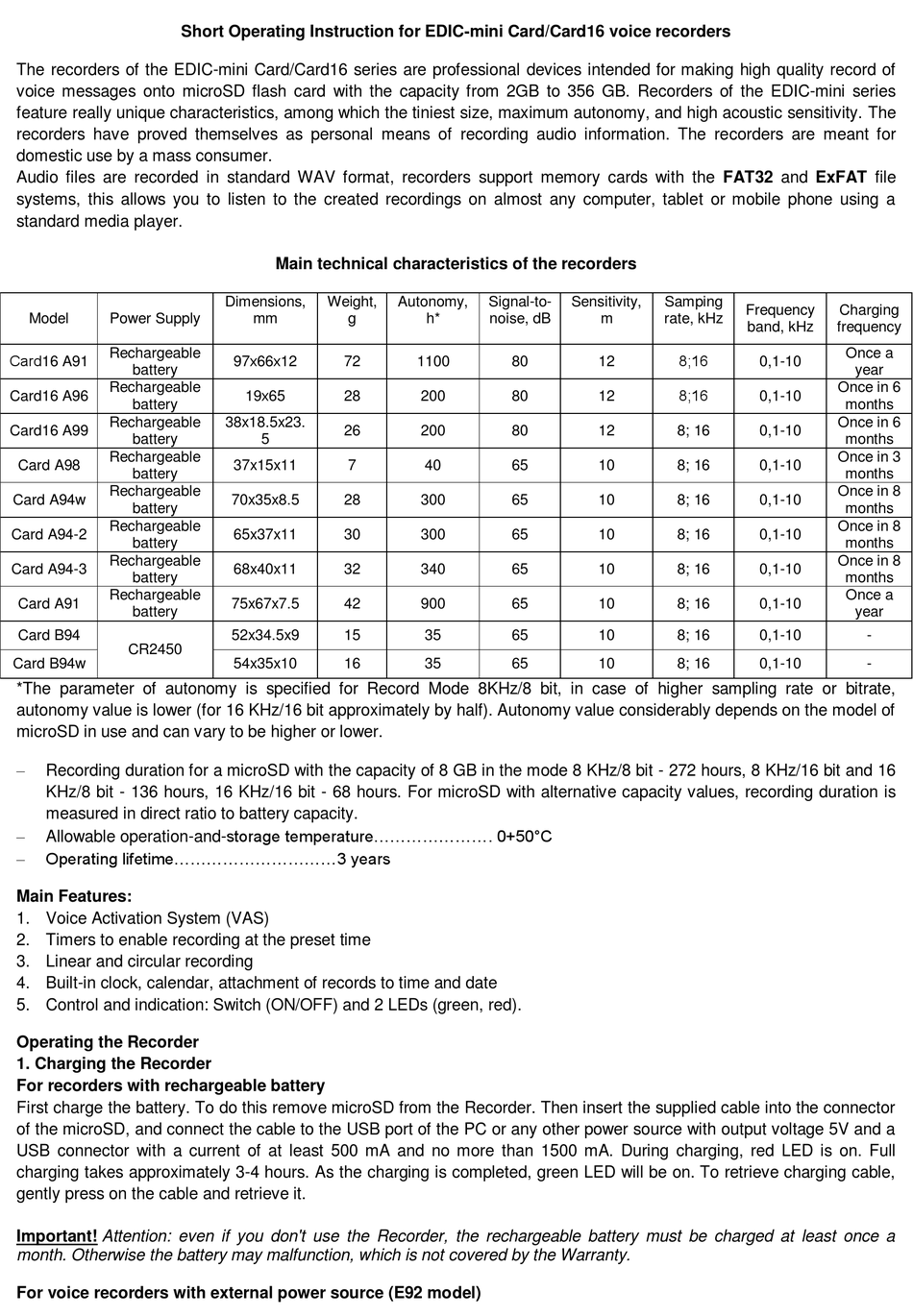

Short Operating Instruction for EDIC-mini Card/Card16 voice recorders
The recorders of the EDIC-mini Card/Card16 series are professional devices intended for making high quality record of
voice messages onto microSD flash card with the capacity from 2GB to 356 GB. Recorders of the EDIC-mini series
feature really unique characteristics, among which the tiniest size, maximum autonomy, and high acoustic sensitivity. The
recorders have proved themselves as personal means of recording audio information. The recorders are meant for
domestic use by a mass consumer.
Audio files are recorded in standard WAV format, recorders support memory cards with the FAT32 and ExFAT file
systems, this allows you to listen to the created recordings on almost any computer, tablet or mobile phone using a
standard media player.
Model Power Supply
Rechargeable
Сard16 A91
battery
Rechargeable
Card16 A96
battery
Rechargeable
Card16 A99
battery
Rechargeable
Card A98
battery
Rechargeable
Card A94w
battery
Rechargeable
Card A94-2
battery
Rechargeable
Card A94-3
battery
Rechargeable
Card A91
battery
Card B94
CR2450
Card B94w
*The parameter of autonomy is specified for Record Mode 8KHz/8 bit, in case of higher sampling rate or bitrate,
autonomy value is lower (for 16 KHz/16 bit approximately by half). Autonomy value considerably depends on the model of
microSD in use and can vary to be higher or lower.

Recording duration for a microSD with the capacity of 8 GB in the mode 8 KHz/8 bit - 272 hours, 8 KHz/16 bit and 16
KHz/8 bit - 136 hours, 16 KHz/16 bit - 68 hours. For microSD with alternative capacity values, recording duration is
measured in direct ratio to battery capacity.

Allowable operation-and-storage temperature...................... 0+50°C

Operating lifetime..............................3 years

Main Features:

1. Voice Activation System (VAS)
2. Timers to enable recording at the preset time
3. Linear and circular recording
4. Built-in clock, calendar, attachment of records to time and date
5. Control and indication: Switch (ON/OFF) and 2 LEDs (green, red).

Operating the Recorder

1. Charging the Recorder

For recorders with rechargeable battery
First charge the battery. To do this remove microSD from the Recorder. Then insert the supplied cable into the connector
of the microSD, and connect the cable to the USB port of the PC or any other power source with output voltage 5V and a
USB connector with a current of at least 500 mA and no more than 1500 mA. During charging, red LED is on. Full
charging takes approximately 3-4 hours. As the charging is completed, green LED will be on. To retrieve charging cable,
gently press on the cable and retrieve it.
Important! Attention: even if you don't use the Recorder, the rechargeable battery must be charged at least once a
month. Otherwise the battery may malfunction, which is not covered by the Warranty.
For voice recorders with external power source (E92 model)

Main technical characteristics of the recorders

Dimensions, Weight, Autonomy,
mm g
97х66х12 72
19х65 28
38x18.5x23.
26
5
37x15x11 7
70x35x8.5 28
65x37x11 30
68x40x11 32
75x67x7.5 42
52x34.5x9 15
54x35x10 16
Signal-to- Sensitivity,
h* noise, dB
1100 80
200 80
200 80
40 65
300 65
300 65
340 65
900 65
35 65
35 65
Samping
Frequency
m rate, kHz
band, kHz
8;16
12 0,1-10
8;16
12 0,1-10
12 8; 16 0,1-10
10 8; 16 0,1-10
10 8; 16 0,1-10
10 8; 16 0,1-10
10 8; 16 0,1-10
10 8; 16 0,1-10
10 8; 16 0,1-10
10 8; 16 0,1-10
Charging
frequency
Once a
year
Once in 6
months
Once in 6
months
Once in 3
months
Once in 8
months
Once in 8
months
Once in 8
months
Once a
year
-
-
