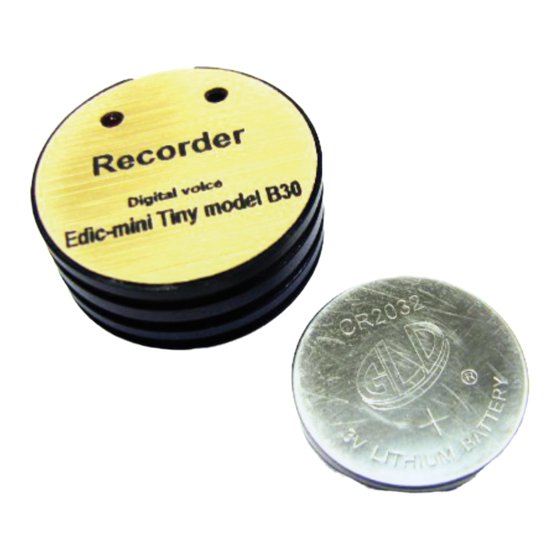

EDIC-mini Tiny model B30
1120/2240/4480/8960/17920/35840
Characteristics:
- Metallic case;
- Dimensions: d = 26.5, h = 0mm;
- Weight < 7 g (without a battery);
- Operating temperature range: 0...+40 ˚C
(32...+104 ˚F);
- Recording mode – mono;
- Recording duration - 600 hours;
- Built-in microphone's operating distance:
7-9 meters (2-27ft);
- Battery life in record mode (sampling rate
8 KHz, without compression): 90 hours;
- Battery life in record mode with VAS (audio
signals below threshold): up to 90 hours;
- In stand-by mode: up to three years (up to
8.5 months);
- Power supply: one 3V battery
with d = 20 mm, h=3.2 mm (CR2032).
Advertisement
Table of Contents
Related Manuals for EDIC-mini Tiny B30 series
Summary of Contents for EDIC-mini Tiny B30 series
- Page 1 EDIC-mini Tiny model B30 1120/2240/4480/8960/17920/35840 Characteristics: - Metallic case; - Dimensions: d = 26.5, h = 0mm; - Weight < 7 g (without a battery); - Operating temperature range: 0…+40 ˚C (32…+104 ˚F); - Recording mode – mono; - Recording duration - 600 hours;...
- Page 2 In Box: - Recorder; - USB cable; - Software CD; - Instructions; - Two CR2032 batteries. USB cable Microphone Universal connector Button Figure 1: Edic-mini Tiny model B30...
- Page 3 Turning the Recorder on After you inserted the battery, press the button. Keep it pressed for 2-3 seconds and then release. The recorder will start self testing. While self testing, the recorder LED will flash three times and after a pause the fourth time (if fourth duration will not occur, the battery is discharged or malfunctioning).
- Page 5 Start/Stop Recording To start/stop recording, keep the button pressed for 3- seconds while the LED does not signal. When the recorder starts recording, the LED flashes five times. When the recorder stops recording, the LED flashes once. While recording, the sequences of LED flashes show the charge of the battery (the first sequence: 1 flash –...
- Page 6 Inserting Battery Attention! Insert the battery as it is shown in the picture (“plus” to the front side of the recorder). Otherwise, the recorder could be harmed. To insert/ take out the battery, twist the recorder lid and open/close it. Recorder's top Battery (+) side...
- Page 7 Designed and manufactured by the Telesystems Ltd. The Manufactory Warranty Coupon The manufacturer undertakes warranty repair liabilities for 1 year from the date of purchase, but no longer than 2 years from the date of manufacture of the product (warranty does not cover batteries).
- Page 8 Edic-mini Tiny model B30 □ EM Tiny B30 - 20 □ EM Tiny B30 - 220 □ EM Tiny B30 - 80 □ EM Tiny B30 - 8960 □ EM Tiny B30 - 7920 □ EM Tiny B30 - 3580...
