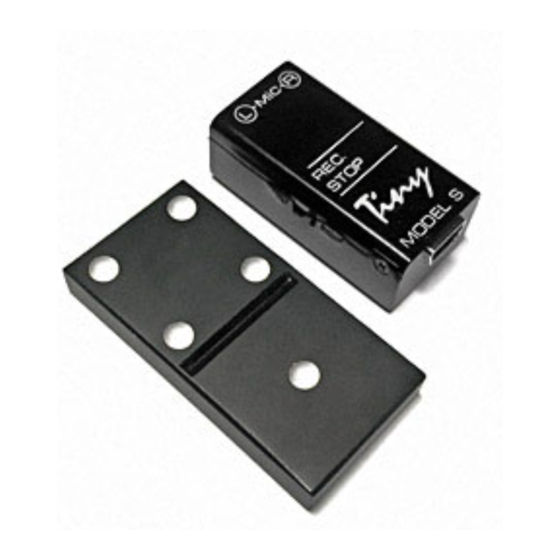

EDIC-mini TINY
Model STEREO
1120/2240/4480/8960/17920
- Dimensions: 12x35x17 mm;
- Weight: 10 g;
- Recording time: up 420 hours;
- Recording mode: mono or stereo;
- Microphone sensitivity: 7...9 m;
- Operating temperature: 0-40
- External rechargeable battery capacity: 120 mA/hour;
- Battery life:
- In record mode (sampling rate 8 kHz, without compression,
mono): up to 60 hours;
- In stand-by mode: up to 6 months;
- Case: metallic case;
- Rechargeable battery charge: from USB socket.
Package Content
- Voice recorder;
- USB cable;
- Two external microphones;
- CD with drivers and programs;
- User manual.
o
o
C (32-1044
F);
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDIC-mini TINY STEREO series
Summary of Contents for EDIC-mini TINY STEREO series
- Page 1 EDIC-mini TINY Model STEREO 1120/2240/4480/8960/17920 - Dimensions: 12x35x17 mm; - Weight: 10 g; - Recording time: up 420 hours; - Recording mode: mono or stereo; - Microphone sensitivity: 7…9 m; - Operating temperature: 0-40 C (32-1044 - External rechargeable battery capacity: 120 mA/hour;...
-
Page 2: Before Recording
Description Input of the left Input of the channel right channel FUCC Recording switch USB socket Labeling Function Parameters Microphone’s signal Voltage 2,9Vpp, with the constant component 1,5V Global bus FUCC + microphone’s power Voltage 3+/-0,2 V supply Before Recording To start recording, set the Record switch in the recording position. - Page 3 be charged. The second blinking sequence indicates the amount memory is available: one flash – 76-100%, two flashes -51-75%, three flashes – 25- 50%, 4 flashes – 1-25%. To estimate the battery life in different modes, use the table below: Without u-Law 4-bits...
- Page 4 TS-Market Ltd. The Manufactory Warranty Coupon The manufacturer undertakes warranty repair liabilities for 1 year from the date of purchase, but no longer than 2 years from the date of manufacture of the product (warranty does not cover batteries). Paid repair is provided within recorder’s operation lifetime (5 years).
