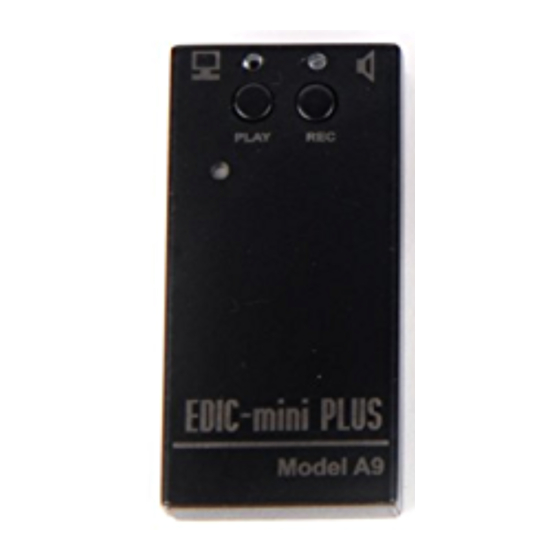

Short Operating Instruction for the
EDIC-mini Plus Digital Recorder A9
75h/150h/300h/600h/1200h/2400h
The EDIC-mini Plus A9 digital recorder is a pro-
fessional device that provides high quality voice
recording on to a built-in flash memory. Recorded
messages can be played back with headphones
and saved as standard audio files on to a com-
puter hard drive. The USB 2.0 interface allows high
speed data exchange between the recorder and
the computer. The recorder can be used for audio
recording and as a flash drive for saving files of
any formats.
The recorder has:
- Voice Activation System that allows to
compress pauses
- Built-in real time clock
- Supplied Software (available on the
recorder's built-in flash memory) allows:
- To save recorded messages on a computer
hard drive as standard audio files
- When saving recordings on a computer
hard drive, to restore pauses that were
compressed
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDIC-mini Plus A9
Summary of Contents for EDIC-mini Plus A9
- Page 1 Short Operating Instruction for the EDIC-mini Plus Digital Recorder A9 75h/150h/300h/600h/1200h/2400h The EDIC-mini Plus A9 digital recorder is a pro- fessional device that provides high quality voice recording on to a built-in flash memory. Recorded messages can be played back with headphones and saved as standard audio files on to a com- puter hard drive.
-
Page 2: Rechargeable Battery
- To set the recorder’s parameters - To administrate the recorder’s operating - To renew the recorder’s software For the recorder’s power supply use the Li-Pol rechargeable battery. Microphone USB Connector Green and Headphones’ yellow LEDs connector Play button Reset button Red and blue LEDs Rec. -
Page 3: Technical Characteristics
Technical Characteristics - Rechargeable battery life: 230 hours - Digits in the models’ names show the built- in flash memory capacity (A9-150h/300h/600h/1200h/2400h): - 150h - 8,960 min (1Gb); - 300h -17,920min (2Gb); - 600h - 35,840 min (4Gb); - 1200h – 71,680 min (8Gb); - 2400h –... - Page 4 How to Turn the Recorder On and Test It Quickly Recording Press the Rec button twice (two times for a second). After the two LEDs flash shortly, the recorder will start recording and the red LED will flash. To stop recording, press the Rec button twice (two times for a second).
-
Page 5: Box Contents
How to Read the Operating Instruction Connect the recorder to the computer USB 2.0 port using the shipped USB cable. Keep the middle button on the recorder’s case pressed until “USB 2.0 active” appears on the screen. After this, a removable drive will appear in the system. -
Page 6: Optional Accessories
Optional Accessories - Remote control unit with external microphone *The full version of the Operating Instruction is in the build-in memory of the recorder. You can also find it at our website www.ts-market.com... - Page 7 Designed and manufactured by the Telesystems Ltd. The Manufactory Warranty Coupon The manufacturer undertakes warranty repair liabilities for 1 year from the date of purchase, but no longer than 2 years from the date of manufacture of the product (warranty does not cover batteries).
- Page 8 Edic-mini Plus model A9 □ EM Plus A9 - 150 h □ EM Plus A9 - 300 h □ EM Plus A9 - 600 h □ EM Plus A9 - 1200 h □ EM Plus A9 - 2400 h Number __________________________________...
