Short Operating Instruction
for Digital Recorder EDIC-mini Pro
В42-300h/600h/1200h
Overlook

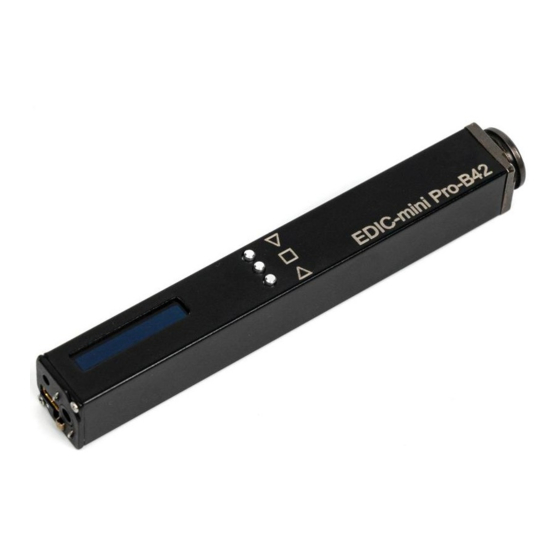

Digital Recorder EDIC-mini Pro В42 is a
professional device intended for making high
quality record of voice messages into built-in flash
memory. Recorded messages can be played back
with headphone. USB 2.0 Interface provides high
exchange speed between the recorder and the
PC. The Recorder can be used simultaneously as
a voice recorder when recording messages and a
flash media when storing and transferring data of
any standards (under "RecManager" control).
Specifications:
• Metallic case;
• Two-line OLED indicator 104x16 px;
• VAS (Voice Activating System) to compress
pauses while recording;
• Built-in real time clock;
• Timers to turn the recorder on every day at
the preset time or for a single reclosure of the
record;
• Circular recording mode.
Advertisement
Table of Contents
Related Manuals for EDIC-mini Pro B42
Summary of Contents for EDIC-mini Pro B42
-
Page 1: Specifications
Short Operating Instruction for Digital Recorder EDIC-mini Pro В42-300h/600h/1200h Overlook Digital Recorder EDIC-mini Pro В42 is a professional device intended for making high quality record of voice messages into built-in flash memory. Recorded messages can be played back with headphone. USB 2.0 Interface provides high exchange speed between the recorder and the PC. - Page 2 Recorder’s Appearance Legend Keys: 1. Switch: – «Stop»; – «Record»; 2. USB connector; 3. LED; 4. Microphone; 5. Display; 6. Headphone connector; 7. Button 8. Button 9. Button 10.Lid; 11.“Reset” button; “Record” “Stop”...
-
Page 3: Technical Characteristics
Supplied Software (available on the recorder’s built-in Flash memory) makes it possible to: • Save the recorded messages onto the PC as standard sound files (WAV); • Restore compressed pauses when uploading files onto the drive; • Set the DVR parameters; •... - Page 4 • Exchange rate: up to 5, 5 Mb/s; • Frequency band: 0,1-6 kHz; • Signal-to-noise ratio: 72 dB; • Built-in microphone sensitivity: 7–9 m; • Storage life of built-in flash memory: up to 10 years; • Battery: AAA; • Operating temperature range: 0–40 ºС; •...
- Page 5 (position 8) and after a short pause push the button (position 8) again. To stop playing back push the button (position 8). How to read Instructions Connect the PC to the USB 2.0 connector with the help of USB cable (included into the package). Keep the middle button pressed until the display reads “USB 2.0 active”.
- Page 6 In Box 1. Recorder; 2. Headphone; 3. USB cable to connect to the PC; 4. 2 AAA batteries; 5. Plastic screwdriver; 6. CD with Software; 7. Instructions. Accessories: 1. Remote Control with remote amplifying microphone; 2. Telephone circuit adapter “RecAdapter” For more details see Operational Manual on the shipped CD (or flash drive).
- Page 7 Manufacturer Warranty Coupon Warranty: The Telesystems Company provides warranty repair for 1 year from the selling date, but not more than 2 years from the manufacturing date (warranty does not cover batteries). Paid repair is provided within recorder’s operation lifetime (5 years). This warranty is voided if the recorder is: •...
- Page 8 Digital Recorder EDIC-mini Pro В42 300h 600h 1200h Number: ________________________________ QC:____________________________________ Selling date: _____________________________ Seller: __________________________________ Address: Market Ltd. Building 10/1 Sosnovaya Alleya, Zelenograd, Moscow, The Russian Federation, 124489 Tel: +7 (495) 638-8800; (Cell) +7 (903) 716-22-14 E-mail: support@ts-market.com http://www.ts-market.com GPS coordinats : 55.98065 N...
