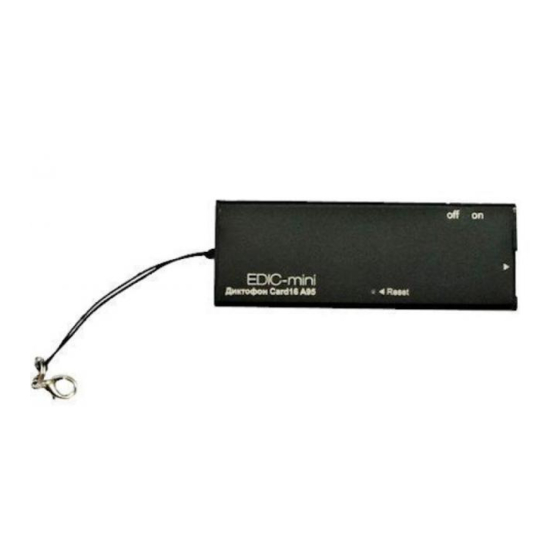

OPERATION MANUAL for digital voice recorders
EM-Card and EM Card16 series
Contents
1. Purpose....... .............................................................................................................................................. 2
2. Main Features..... ...................................................................................................................................... 2
3. Overlook.... ................................................................................................................................................ 2
4. Technical Characteristics............. ............................................................................................................. .3
5. Recording Duration.... ............................................................................................................................... 3
6. Recorder's Battery Life..... ......................................................................................................................... 3
Operating the Recorder at the initial level
7. Battery Charging..... ................................................................................................................................... 4
7.1 Power supply for recorders with external power source.................. ..................................................... 4
8. Recording..... ............................................................................................................................................. 4
9. Record Playback..... ................................................................................................................................... 5
10. Changing Settings using Configuration File.... ......................................................................................... 5
11. Recording by Timer............. .................................................................................................................... 6
12. Recording by Sound Level...... ... ............................................................................................................. 6
13. Recording by Timer and Sound Level..... ................................................................................................. 6
14. Recording using AGC............ ................................................................................................................... 6
15. Setting File Size Restrictions... ................................................................................................................ .7
16. Setting Time and Date.... ......................................................................................................................... 7
17. Reset...... ................................................................................................................................................ ..7
18. System Event Log....... ............................................................................................................................. 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDIC-mini EM-Card Series
Summary of Contents for EDIC-mini EM-Card Series
- Page 1 OPERATION MANUAL for digital voice recorders EM-Card and EM Card16 series Contents 1. Purpose..............................2 2. Main Features............................2 3. Overlook..............................2 4. Technical Characteristics.......................... .3 5. Recording Duration........................... 3 6. Recorder's Battery Life..........................3 Operating the Recorder at the initial level 7.
-
Page 2: Purpose
Specifications 1. Purpose The recorders of the EM-Card16 family are professional devices intended for making high quality record of voice messages onto microSD memory card in wav format. The format is supported by all flash players on the PC and any other playback devices. 2. -
Page 3: Technical Characteristics
4.Technical Characteristics Signal-to-noise ratio 68dB Dynamic range 96dB Record mode mono Sampling rate 8/16KHz Frequency band from 100 to 10 000Hz ADC bitrate 8/16 bit Current consumption in record mode* 8kHz 8 bit 2 mA 16KHz 8bit 3 mA 8KHz 16bit 3 mA 16KHz 16bit 4.5 mA... -
Page 4: Battery Charging
Operating the Recorder 7. Battery Charging Before using the Recorder, check battery charge level. If there is a necessity, charge the internal battery of the Recorder by following the procedure: remove memory card from the Recorder, and insert it into memory card slot, charging cable included. -
Page 5: Record Playback
10 red flashes state that microSD card is either not inserted or not writable. If while recording, microSD is full, the Recorder stops recording and quits operating mode. If during recording, battery charge level is too low, the Recorder stops recording and quits operating mode. Shift Switch from On to Off to stop recording (if any) and quit operating mode. -
Page 6: Recording By Timer
11. Recording by Timer Timers are enabled and configured via configuration file (CONFIG.INI). If at least one of the timers is on, the Recorder switches to record mode automatically from the off state, i.e. the Switch is in OFF position. Regardless of the timer setting, recording can be enabled manually, by shifting the Switch from OFF to ON. -
Page 7: Setting File Size Restrictions
15. Setting File Size Restrictions File size restrictions can be activated and adjusted via configuration file. If during recording, file size exceeds maximum permitted size, the file is closed and recording continues in a new file. If at the end of recording, the recorded file is smaller than the minimum allowable size, it is deleted.
