Digital voice recorders
of EM Tiny+, Tiny16+, Tiny S+ series
Short operation manual
Purpose

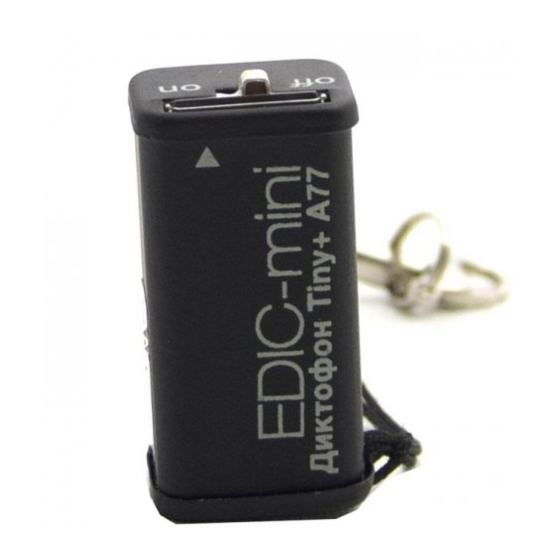

Voice recorders of the Edic-mini Tiny(16)+, Tiny S+ series are professional devices
intended for making high quality record of voice messages into built-in flash memory. The
recordings can be further uploaded onto the PC. These voice recorders feature really
unique characteristics (the world's smallest size, maximum autonomy, high acoustic
sensitivity etc). The recorders are marketed as personal means of documenting audio
information providing protection against fake records as well as unauthorized access
to records. Recorders designed for home use by mass consumers.
The EMPlus program located in the built-in memory is used to operate the recorder.
SoundProcessor program is designed to process the transferred records and to
facilitate the conversion of records to text. The programs operate under Windows XP
(SP2, SP3) / Vista / 7 / 8.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EDIC-mini Tiny+ A77
Summary of Contents for EDIC-mini Tiny+ A77
- Page 1 Short operation manual Purpose Voice recorders of the Edic-mini Tiny(16)+, Tiny S+ series are professional devices intended for making high quality record of voice messages into built-in flash memory. The recordings can be further uploaded onto the PC. These voice recorders feature really unique characteristics (the world's smallest size, maximum autonomy, high acoustic sensitivity etc).
- Page 2 Model Power supply Dimensions, mm Weight, g Tiny+ A77 Li-Pol 105mA/h rech.batt 29x15x12 Tiny+ A81 Li-Pol 500 150mA/h rech.batt 78x13x13 Tiny+ A83 Li-Pol 800 mA/h rech.batt 38x18,5x23,5 Tiny+ B70 LR43 battery 37x15x7 Tiny+ B73 LR43 battery 46x14x6 Tiny+ B74 CR2016 battery...
- Page 3 Autonomy*, Signal-to- Sensitivity, Sample rate, kHz Frequency band, Hz noise, dB 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 11;16;22 100-10000 8; 10;13,3;20 100-10000 8;...
-
Page 4: Main Features
Main features • Voice Activating System (VAS) • Timers: Once and Daily • Linear and circular recording • Built-in clock, calendar • Password protection of the records • Built-in digital markers provides protection from modification of records • Control and indication: switch and LED In box •... - Page 5 Attention: When installing batteries, observe the polarity (see marking on the recorder's case). Inappropriate installing of battery may lead to failure of the recorder system, which is not covered by the Warranty. Do not store the recorder for a long time with a battery inserted, as the battery may leak and lead to recorder failure, and that is not covered by the Warranty.
- Page 6 Starting the record The recorder switches to operation mode after the Switch has been shifted to ON. The LED flashed five times and recording starts. After the transition to operation mode, the green LED of the recorder makes two series of flashes. The first series of LED flashes corresponds to battery charge level: •...
- Page 7 During first connection there will be an offer to install program to your PC. After accepting short and full operation manuals, EMPlus and SoundProcessor programs and manuals will be installed to the hard drive. Run “EMPlus.exe” program from recorder or hard drive. Choose connection type USB 2.0 HS.
-
Page 8: Technical Support
Warranty The manufacturer undertakes warranty repair liabilities for 1 year from the date of purchase, but no longer than 2 years from the date of manufacture of the product (warranty does not cover batteries), other rules are regulated by the Law «On Protection of Consumers' Rights».
