System Circuit Description - Danfoss Series 20 Service Manual And Repair Instructions

Axial piston
Hide thumbs Also See for Series 20:
Table of Contents

Advertisement

Service Manual and
Repair Instructions
Start-up procedure

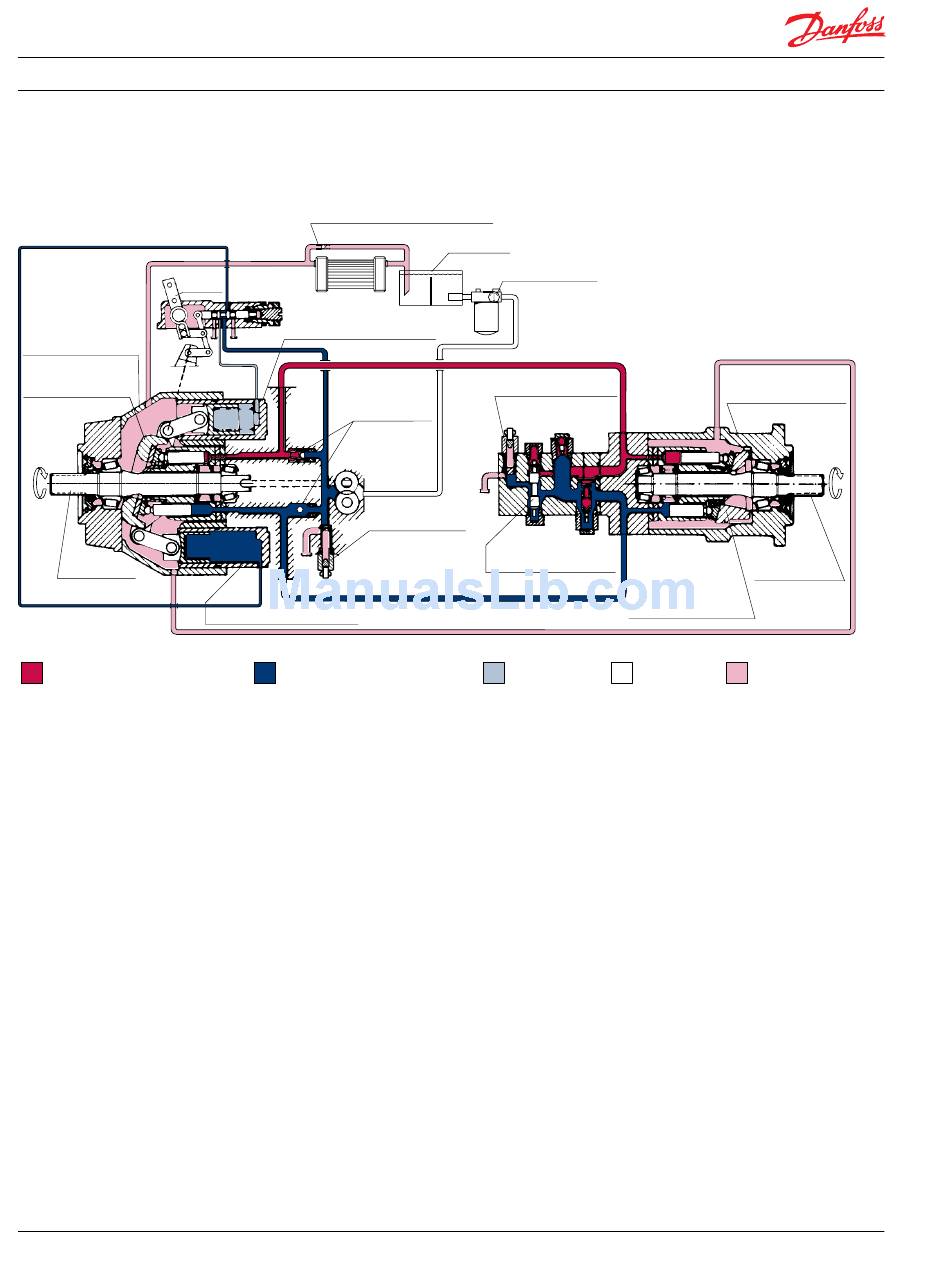

System Circuit Description

CONTROL
HANDLE
REVERSIBLE VARIABLE
DISPLACEMENT PUMP
PUMP SWASHPLATE
INPUT SHAFT
WORKING LOOP (HIGH PRESSURE)
10
Axial Piston Motors Series 20
HEAT EXCHANGER BYPASS VALVE
HEAT EXCHANGER
SERVO CONTROL CYLINDER
SERVO
PRESSURE
RELIEF VALVES
CHARGE PRESSURE
RELIEF VALVE
SERVO CONTROL CYLINDER
WORKING LOOP (LOW PRESSURE)
L1003443 • Rev BA • Jun 2014
RESERVOIR
VACUUM GAUGE
PURGE RELIEF VALVE
LOOP FLUSHING VALVE
MOTOR SWASHPLATE
CONTROL FLUID
FIXED
DISPLACEMENT MOTOR
OUTPUT SHAFT
SUCTION LINE
CASE DRAIN FLUID
P000 027E
