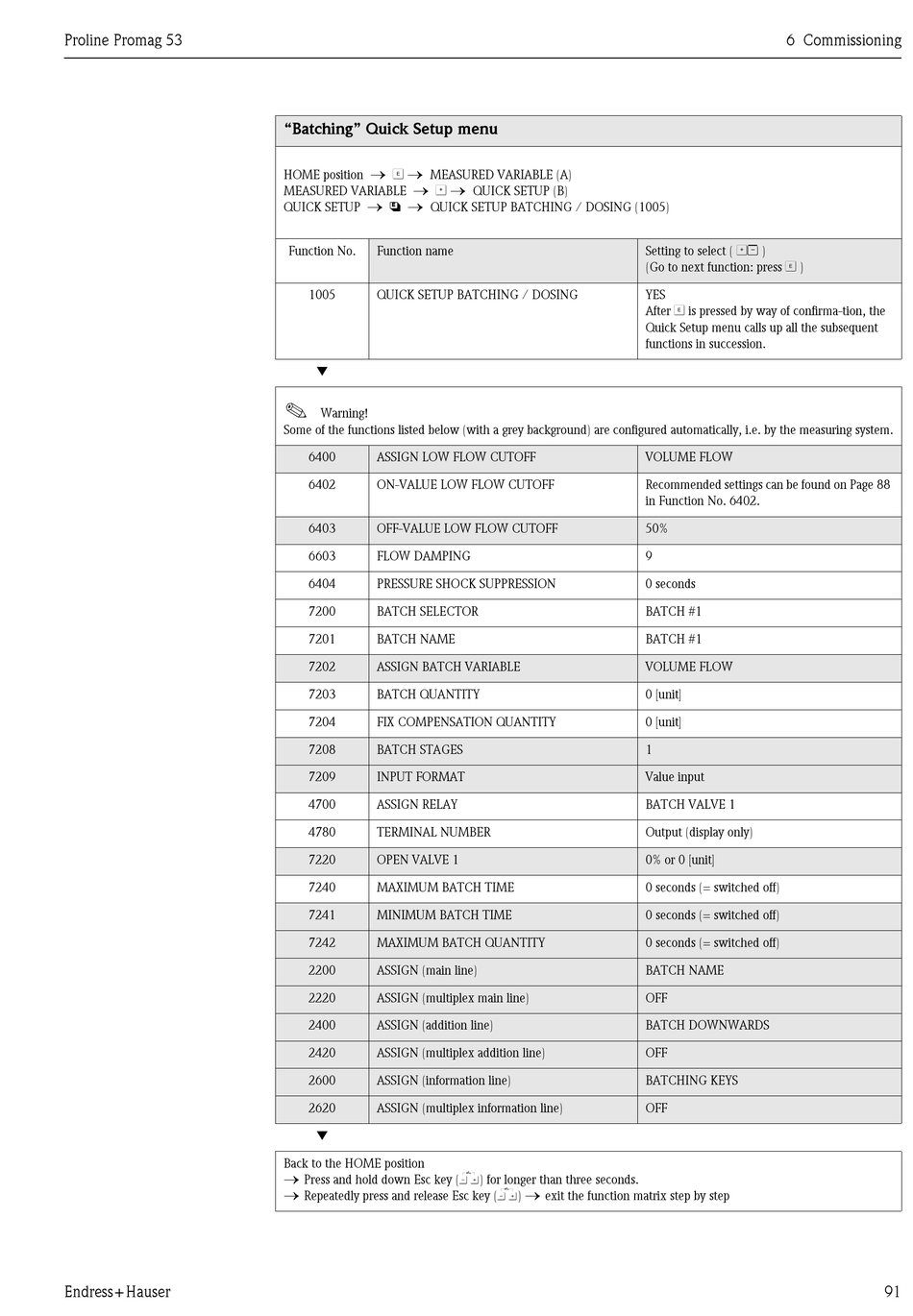

"Batching" Quick Setup menu
→ →
F
HOME position MEASURED VARIABLE (A)
→ →
O
MEASURED VARIABLE
→ →
N
QUICK SETUP QUICK SETUP BATCHING / DOSING (1005)
Function No. Function name
1005 QUICK SETUP BATCHING / DOSING
▼
!
Warning!
Some of the functions listed below (with a grey background) are configured automatically, i.e. by the measuring system.
6400 ASSIGN LOW FLOW CUTOFF
6402 ON-VALUE LOW FLOW CUTOFF
6403 OFF-VALUE LOW FLOW CUTOFF
6603 FLOW DAMPING
6404 PRESSURE SHOCK SUPPRESSION
7200 BATCH SELECTOR
7201 BATCH NAME
7202 ASSIGN BATCH VARIABLE
7203 BATCH QUANTITY
7204 FIX COMPENSATION QUANTITY
7208 BATCH STAGES
7209 INPUT FORMAT
4700 ASSIGN RELAY
4780 TERMINAL NUMBER
7220 OPEN VALVE 1
7240 MAXIMUM BATCH TIME
7241 MINIMUM BATCH TIME
7242 MAXIMUM BATCH QUANTITY
2200 ASSIGN (main line)
2220 ASSIGN (multiplex main line)
2400 ASSIGN (addition line)
2420 ASSIGN (multiplex addition line)
2600 ASSIGN (information line)
2620 ASSIGN (multiplex information line)
▼
Back to the HOME position
→
Press and hold down Esc key (
→
Repeatedly press and release Esc key (
QUICK SETUP (B)
X
) for longer than three seconds.
→
X
) exit the function matrix step by step
6 Commissioning
Setting to select ( OS )
(Go to next function: press F )
YES
After F is pressed by way of confirma-tion, the
Quick Setup menu calls up all the subsequent
functions in succession.
VOLUME FLOW
Recommended settings can be found on Page 88
in Function No. 6402.
50%
9
0 seconds
BATCH #1
BATCH #1
VOLUME FLOW
0 [unit]
0 [unit]
1
Value input
BATCH VALVE 1
Output (display only)
0% or 0 [unit]
0 seconds (= switched off)
0 seconds (= switched off)
0 seconds (= switched off)
BATCH NAME
OFF
BATCH DOWNWARDS
OFF
BATCHING KEYS
OFF
