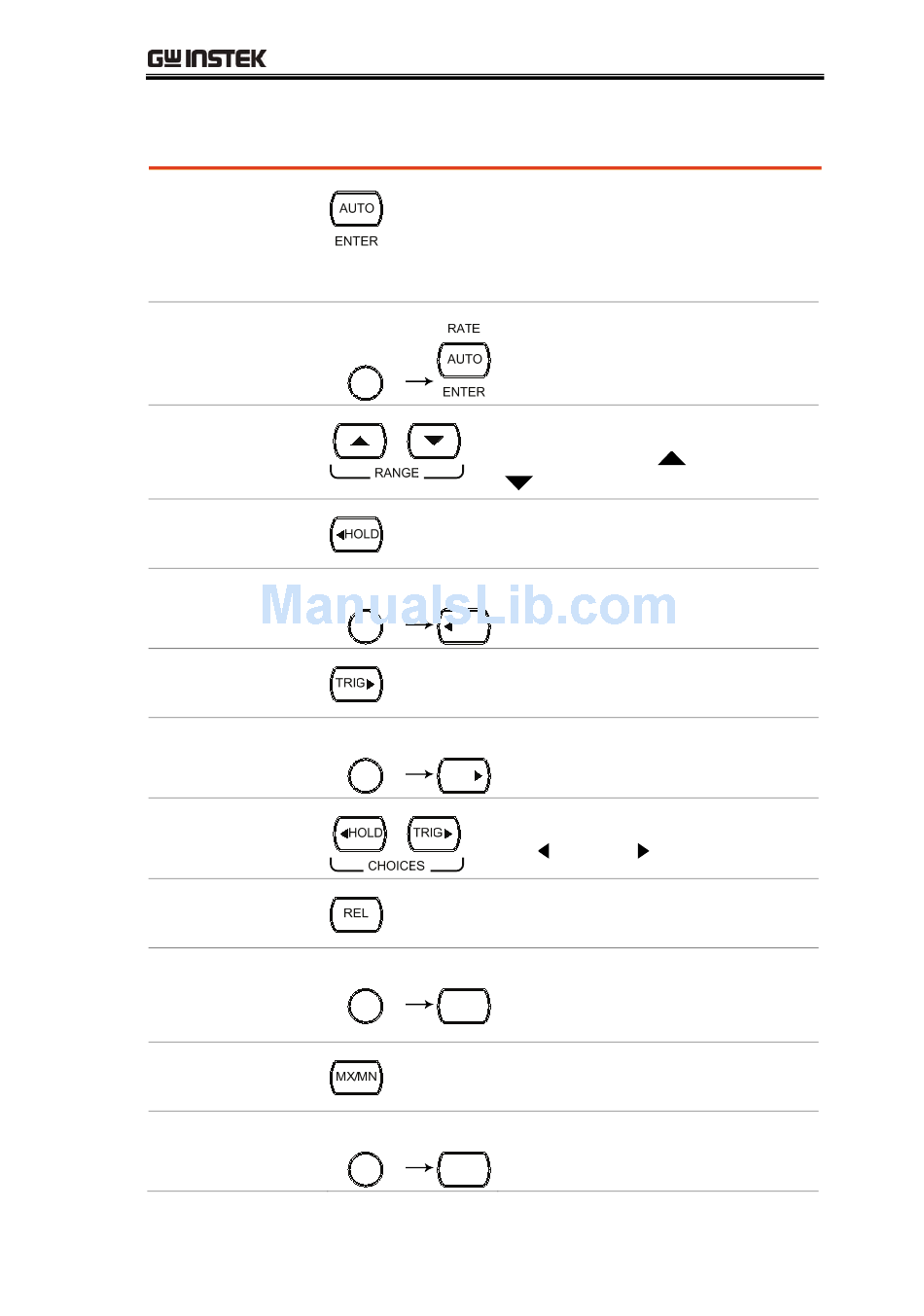

Measurement Keys (lower row)

AUTO/ENTER
SHIFT → AUTO
(RATE)
Up/Down
HOLD
SHIFT → HOLD
(COMPare)
TRIG (Trigger)
SHIFT → TRIG
(Int/Ext Trigger)
Left/Right
REL
SHIFT → REL
(RELative base)
MX/MN
(MAX/ MIN)
SHIFT → MX/MN
(FILTER)
Find Quality Products Online at:
SHIFT / EXIT
COMP
SHIFT / EXIT
HOLD
SHIFT / EXIT INT/EXT
TRIG
SHIFT / EXIT REL#
REL
FILTER
SHIFT / EXIT
MX/MN
GlobalTestSupply
www.
GETTING STARTED
As the AUTO key, selects the
measurement range automatically.
As the Enter key, confirms the
entered value.
Selects the measurement update
rate: Slow, Medium, or Fast (page
24).
Selects the parameter in various
occasions: higher (
( ).
Activates the Hold function (page
60).
Activates the Compare
measurement (page 61).
Triggers sample acquisition
manually (page 72).
Selects the Internal or the External
trigger source (page 72).
Selects parameters in various menus:
left ( ) or right ( ).
Measures the Relative value (page
58).
Manually sets the reference value for
the Relative value measurement
(page 58).
Measures the Maximum or the
Minimum value (page 57).
Selects the digital filter type for the
signal sampling (page 75).
.com
) or lower
15
