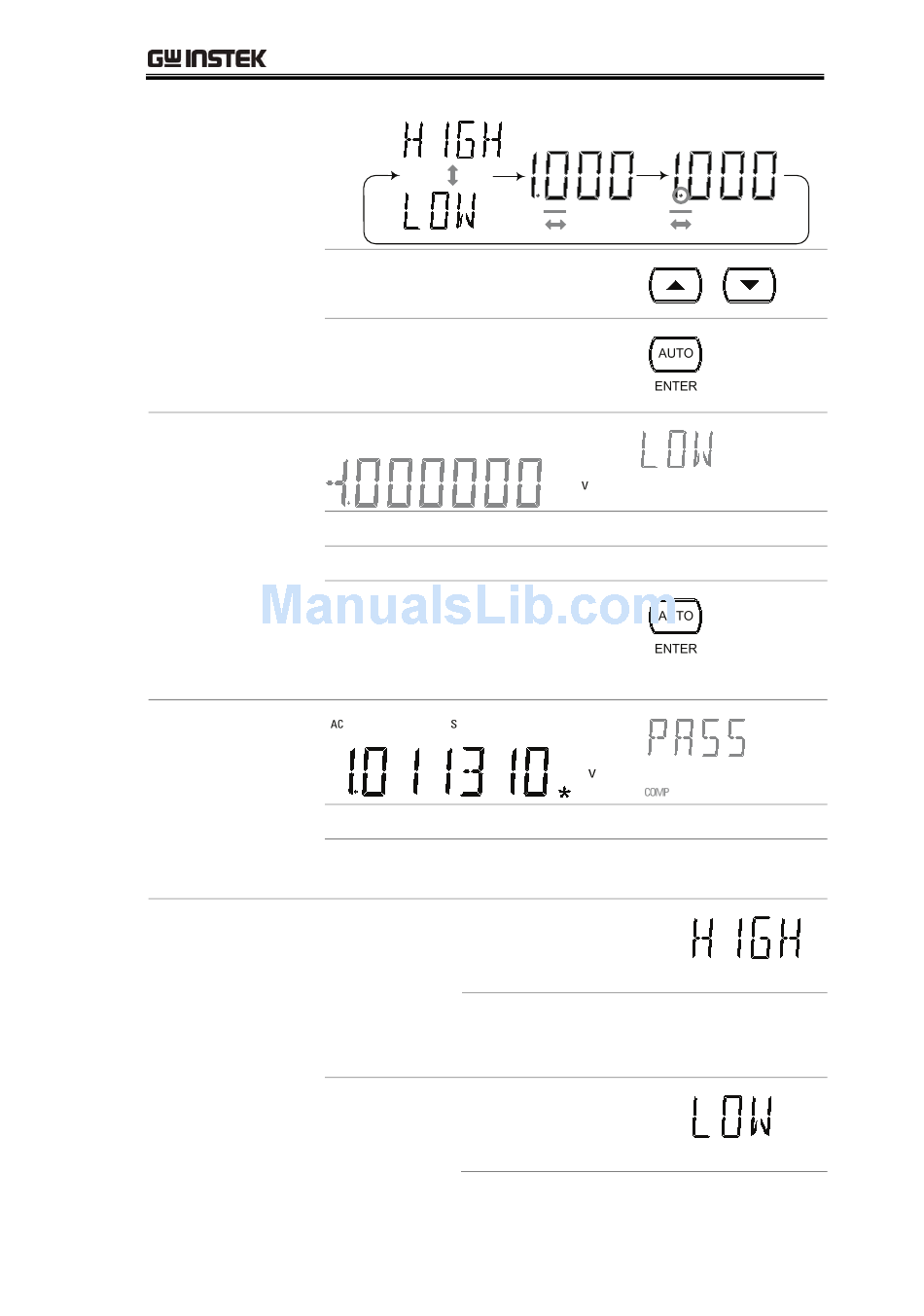

GW Instek GDM-8261 User Manual page 117

3. Low limit
setting
4. Compare
measurement
appears
5. Result
Find Quality Products Online at:
2. Change the parameter using the
Up/Down key.
3. Press the Enter key to confirm
editing and move to the low
limit setting.
Shows the low limit value
1st display
Indicates low limit setting
2nd display
Set the low limit in the same way as
in the high limit. Press the Enter key
to confirm editing. The compare
measurement starts right away.
Indicates Compare mode
COMP
Shows the compare measurement result:
2nd display
Pass, High, or Low.
If the 2nd display shows
High
High, the result is above
the High limit.
Digital I/O: FAIL Out (Pin 6) and
HIGH Limit FAIL Out (Pin 7) are
activated.
If the 2nd display shows
Low
Low, the result is below
the Low limit.
GlobalTestSupply
www.
DIGITAL I/O
.com
sales@GlobalTestSupply.com
117
