OWNER'S MANUAL

1900

10/2012 REVISION

REGAL 784015

Table of Contents

Need help?

Do you have a question about the 1900 and is the answer not in the manual?

Questions and answers

durango auto sales

February 5, 2025

hi, 2008 regal 1900 . can i have the key bcode please

Summary of Contents for Regal 1900

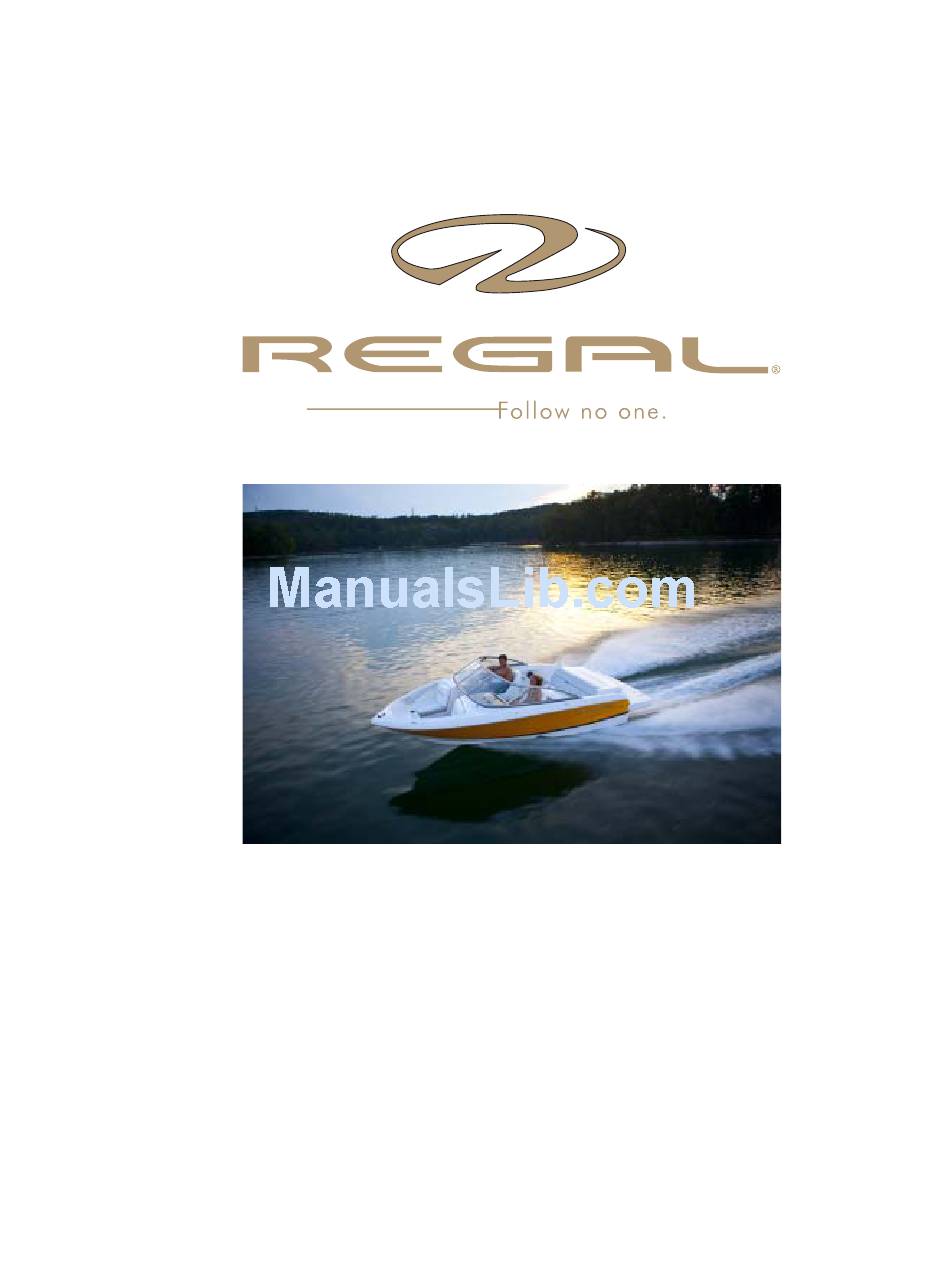

Page 1 OWNER’S MANUAL 1900 10/2012 REVISION REGAL 784015...
Page 2: Table Of Contents
Table Of Contents INTRODUCTION Stern Drive Basics 3-18 Stern Drive Mechanics 3-19 Stern Drive Lubrication 3-20 Your Regal Owner’s Manual INT-8 Propellers 3-22 General Information INT-9 Instrumentation 3-23 Regal Warranty INT-18 Helm Control Overview 3-28 Steering System 3-36 1 SAFETY ON BOARD...
Page 3 Table Of Contents 10 TRAILERING Canvas & Covers Cockpit Lights 6-15 Depth Sounder 6-16 Before Trailering 10-1 Horn 6-20 Driving 10-8 Marine Stereo 6-21 Backing A Trailer 10-9 Navigation Lights 6-21 Launching Your Boat 10-10 Seat, Hatch, & Storage 6-29 Loading Your Boat 10-12 Sport Tower...
Page 4 Welcome To Regal WELCOME TO REGAL I know I speak for everyone at Regal when I welcome you to the ever-growing family of Regal boat owners. You’ve chosen a vessel that is recognized worldwide for its standard of excellence. Each...
Page 5 Mission Statement With God’s help and a steadfast commitment to integrity, we will develop a team of exceptional people and relationships to provide exceptional customer satisfaction INT-5...
Page 6 THIS PAGE IS LEFT INTENTIONALLY BLANK INT-6...
Page 7: Introduction
Also, your Regal dealer carries a line of fac- tory approved parts and accessories. Your Regal dealer can provide information regarding national train- ing organizations such as the U.S.
Page 8: Your Regal Owner's Manual Int-8
YOUR REGAL OWNER’S MANUAL Your Regal owner’s manual has been developed to assist you in operating your vessel with safety and pleasure. BE SURE TO READ AND BECOME FAMILIAR WITH THE CONTENTS BEFORE OPERATING YOUR CRAFT. Your owner’s manual has been divided into general chapters to assist you in becoming more knowledgeable with your Regal boat.
Page 9: General Information Int-9
Introduction GENERAL INFORMATION Hull Identiﬁ cation Number (HIN)________________ The United States Coast Guard has established a universal system of numerically identifying vessels by using a hull identiﬁ cation number or “HIN.” This number identiﬁ es your boat’s manufacturer, boat model, hull number, month, and year of manufacture. The HIN is found on a metal plate afﬁ...
Page 10 Vessel Information Sheet_________________________ Owner: _______________________________________________ Address: ______________________________________________ City & State: ___________________________________________ Home Phone: _______________ Business: _______________ In Case Of Emergency Notify: _____________________________ Address: ______________________________________________ City & State: ___________________________________________ Phone: _______________________________________________ Insurance Agent’s Name: _________________________________ Policy #: ______________________________________________ USCG Phone: _______________ Local Police: ______________ Marina Phone: _______________ Slip/Dock #: _____________...
Page 11: Float Plan
Introduction Float Plan_____________________________________ Owner: _______________________________________________ Address: ______________________________________________ City & State: ___________________________________________ Phone #: _______________ Alt. Phone #: _______________ Person Filing Report Relationship: __________________________ Name: _______________________________________________ Phone #: _______________ Alt. Phone #: _______________ Make Of Boat: _______________ Destination: _____________ Registration #: _______________ Departure Dock: _________ Length: _____________________ Departure Time: __________...
Page 12 Launch & Cruise Checklist_______________________ • Obtain a current weather report. Inspect the hull and propeller for damage. • • Check all electrical system switches for proper operation. • Run the bilge pump until the ﬂ ow of water stops. If your boat has been out of the water, check to see that the •...
Page 13 Introduction Suggested Tools, Parts, & Gear___________________ SUGGESTED TOOLS SPARE PARTS Allen Wrenches Fuel Filter Jack Knife Spark Plugs Phillips Screwdriver Set Serpentine Belt Slotted Screwdriver Set Propellers Regular Pliers Propeller Nut & Hardware Combination Wrench Set Anti- Siphon Set Ratchet & Socket Set Penetrating Oil Hammer Extra Light Bulbs...
Page 14 Capacity Plate_________________________________ Close to the helm on Regal boats up to 26’ in length is a capacity plate. This plate represents manufacturers who participate in the National Marine Manufacturer’s Association small boat certiﬁ cation program. A similar yacht certiﬁ cation plate for boats over 26’ covers many of the same guidelines and others from ABYC into the yacht program.
Page 15 Dealer’s Responsibility____________ Your boat has undergone rigid quality assurance inspections before leaving the factory. However, your dealer has been trained to perform ﬁ nal pre-delivery checks and to service your Regal boat prior to your pick-up. Your dealer’s responsibilities include: •...
Page 16 Regal boat. Owner’s Responsibility__________________________ You are entitled to all the beneﬁ ts and services outlined in your Regal boat warranty. However, you have certain responsibilities to ensure warranty satisfaction. These are: •...
Page 17 Introduction INT-17...
Page 18 Regal Marine Industries, Inc. warrants to the original retail purchaser of this boat if purchased from an authorized Regal dealer that the selling dealer or Regal will repair or replace the ﬁ berglass hull if it is found to be structurally defective in material or workmanship for as long as the original retail purchaser owns the boat.
Page 19 Introduction Hull Warranty. Under the Five-Year Transferable Limited Structural Hull Warranty, Regal will repair or replace the ﬁ berglass hull if it is found to be structurally defective in material or workmanship within the ﬁ rst (5) years after the date of delivery to the original retail purchaser.
Page 20: Registration Information
LIMITED EXTERIOR FINISH WARRANTY: Regal warrants that the selling dealer or Regal will repair cosmetic defects in the exterior gelcoated ﬁ nish including cracks or crazing reported to Regal within 90 days from the date of delivery to the original purchaser, subject to all limitations and conditions contained herein.
Page 21: Regal Warranty
Introduction (c) Regal will not be responsible to repair or replace any part, (1) if the use of the boat is continued after the defect is or should have been discovered; and (2) if such continued use causes other or additional damage to the boat or component parts of the boat;...
Page 22 (e) Any boat used for racing, or used for rental or commercial purposes; (f) Any boat operated contrary to any instructions furnished by Regal, or operated in violation of any federal, state, Coast Guard or other governmental agency laws, rules, or regulations;...
Page 23: Safety On Board
Safety On Board Safety awareness can’t be over emphasized. The safety of passengers and crew members should be the skipper’s number one priority. This chapter provides details for safe boating actions, as well as how to react to hazardous situations, and what equipment is necessary to have a safe and enjoyable voyage.
Page 24 HAZARD RELATED. Notice Label Precautionary Labels____________________________ Read and understand all safety labels afﬁ xed to your Regal boat. Most of the safety labels are found close to the helm, swim platform, or engine compartment. A skipper should always analyze the result of their actions in the presence or absence of precautionary labels.
Page 25 Safety On Board If any of the labels in the following ﬁ gure are missing, contact your Regal dealer for replacements. Depending on your optional features, you may have more precautionary labels than those listed here. Obey all precautionary labels at all times.
Page 26: Load Capacity
This load is described on your load capacity plate, located on the starboard side of the helm, below the shifting lever. Your Regal can hold a maximum of eight people, or up to 1170 lbs in people and gear. Follow both of these limiting factors when transporting people or equipment.
Page 27 Safety On Board Passenger Location_____________________________ For maximum stability, performance, structural integrity, and safety, all passengers should be seated according to designated seating arrangements. Furthermore, any load your boat carries should be distributed as evenly as possible from aft to bow and port to starboard. As your capacity plate says, only eight people can ride your boat at once;...
Page 28: Safety Equipment
Chapter 1 Safety Equipment Fire Extinguishers______________________________ All Regal boats are built to accommodate ABYC and U.S. Coast Guard standards. Besides these minimum requirements, always check state and local agencies for additional requirements. Fire extinguishers are classiﬁ ed by a letter and numeric symbol. Class B extinguishers are commonly used on boats, as they are designed to put out ﬂ...
Page 29 3 B-I Number of Extinguishers Required Your Regal should always be equipped with at least one hand-portable B-I ﬁ re extinguisher, along with your automatic ﬁ re extinguishing system if the option is installed. Otherwise, two B-I ﬁ re extinguishers are required.
Page 30 It is suitable for ordinary combustibles, ﬂ ammable liquids, and electrical ﬁ res. Your automatic ﬁ re extinguishing system if equipped on your Regal is a heptaﬂ uoropropane ﬁ re extinguisher - an acceptable replacement for Halon.
Page 31 Pyrotechnics are generally recognized world-wide as superior distress signals. A downfall is they emit a very hot ﬂ ame that can cause burns and/or ignite ﬂ ammable materials. Your Regal DOES NOT come equipped with pyrotechnic devices, and owners should purchase the devices that will best serve their boating needs.
Page 32 Your Regal DOES NOT come equipped with non-pyrotechnic devices, and owners should purchase the devices that will best serve their boating needs.
Page 33 Safety On Board International Distress Signals 1-11...
Page 34: Sound Producing Devices
Learn the specialized messages such as Mayday, Mayday, Mayday, which is used when life or vessel is in imminent danger. Your Regal boat DOES NOT come equipped with a VHF radio, but it would be wise to purchase one.
Page 35 Safety On Board Regal boat, being under 12 meters, requires red and green side lights, a white mast light, and a white stern light. A single 360 degree all-around light can be used in lieu of the mast and stern light combination.
Page 36: Personal Flotation Devices
I, II, or III PFD to meet U.S. Coast Guard requirements. To meet U.S. Coast Guard regulations, in addition to one wearable PFD per person aboard your vessel, your Regal must also be equipped with a type IV (throwable) PFD. Note that your Regal DOES NOT come equipped with personal ﬂ...
Page 37 Safety On Board Type II PFDs are also known as near-shore buoyant vests. It is recommended for calm, inland water where rescue time will be minimal. It will turn some unconscious people face-up in the water, but not as numerous as Type I PFDs. They are available in adult, medium child, small child and infant sizes.
Page 38 Chapter 1 Be sure to check with state and local regulations about PFD use by children of speciﬁ c ages before taking them out on the water. Re- member that PFDs will not necessarily keep you from drowning, even though they are designed to keep a person from sinking. When pur- chasing PFD’s make sure it safely ﬁ...
Page 39: Life Rafts
If used, make sure it is large enough for all aboard and contains the proper emergency equipment pack. Also, get the unit professionally serviced. Your Regal boat DOES NOT come with a life raft, although they are recommended. If purchased separately, make sure the life raft is U.S.
Page 40: Pollution Regulations
Chapter 1 POLLUTION REGULATIONS Garbage & Waste Disposal_______________________ The Act to Prevent Pollution from Ships places limitations on the discharge of garbage from vessels. The discharge of certain types of garbage is allowed outside certain speciﬁ ed distances from shore as determined by the nature of that garbage.
Page 41: General Boating Precautions
Safety On Board GENERAL BOATING PRECAUTIONS We understand that you are eager to get your Regal boat on the water. However, we strongly suggest that you thoroughly familiarize yourself and friends or members of your family with safe boating practices before setting out.
Page 42 Chapter 1 • Always close and lock the windshield while in motion. Use both turn locks to secure the windshield in place. Secure the walk-thru door if equipped. You must provide a Coast Guard approved personal • ﬂ otation device (PFD) for every person on board. These PFD’s should be in good condition and easily accessible.
Page 43 Safety On Board WARNING USE OF ALCOHOL ENHANCED FUEL, OR ANY FUEL OTHER THAN GASOLINE, CAN LEAD TO DETERIORATION OF THE FUEL SYSTEM COMPONENTS OR RESULT IN ENGINE DAMAGE, FIRE, AND POSSIBLE EXPLOSION. Alcohol Enhanced Fuel Warning • NEVER drink and drive! As captain, you are responsible for the safety of your passengers and yourself.
Page 44 ﬁ re extinguishers and PFDs. Regal encourages periodic maintenance checks on all safety equipment. But remember, the captain is responsible for his passenger safety, his vessel, and his actions.
Page 45 Safety On Board • ALWAYS ﬁ le a ﬂ oat plan. Leave details of your trip with someone responsible who will be remaining on shore. Include expected return times, plus a name and phone number of a contact person in case of emergency. •...
Page 46: Water Sport Precautions
Chapter 1 WATER SPORT PRECAUTIONS Besides learning the safety precautions for safe boating, as well as un- derstanding and knowing required rules and regulations, you are obli- gated to be particularly careful around other water sportsmen, such as scuba divers, ﬁ shermen, water skiers and wake boarders. Skin &...
Page 47 Safety On Board If ﬁ shing from your boat, never anchor in shipping channels, or tie up to any navigational aids. These must be kept clear of at all times. Be sure to carry a chart of the area and be on the lookout for shallow water and hidden obstructions.
Page 48 Chapter 1 • Avoid running near the shoreline or in heavily congested areas. • DO NOT allow skier / wake boarder to spray ﬁ shermen or other parties. • Keep the engine speed steady while towing a skier/ wake boarder. Make wide turns with skier / wake boarder in tow.
Page 49: Ski Tow
SKI TOW Standard Ski Tow______________________________ Your Regal boat comes standard with a ski tow fastened at the transom. Check the tow line for abrasions before each use and check the ski tow connection to the hull for tightness periodically. Press down on top of the ski tow and release for the mechanism to pop up for access.
Page 50: Swim Platform
Chapter 1 SWIM PLATFORM Regal prides itself by equipping a swim platform standard on your boat. Inspections of the swim ladder and hardware should be done periodically to ensure that all connections are tight. Use heed when operating the boat in reverse to insure that water does not accumulate excessively on the platform or transom.
Page 51: Boating Accidents
Safety On Board BOATING ACCIDENTS Common Accident Causes_______________________ The following is a list of common causes of boating accidents. Be aware of them and take the necessary steps to ensure that yourself and crew are educated and prepared to act. •...
Page 52: Rendering Assistance
Chapter 1 • Being too far from shore with inadequate fuel supply or navigational aids. • Passengers not wearing the proper life saving devices. • Skipper or passengers not seated in the boat. Running a craft that is mechanically marginal. •...
Page 53: Operation By Minors
Safety On Board OPERATION BY MINORS There are rules and regulations in place set by states and local authorities regarding the operation of boats by minors. Some states require minors age 16 and under to complete boating safety courses before operating a boat. Other states may require operators under the age of 18 to be licensed in boat operation.
Page 54: Hazardous Conditions
If you do run aground, check the boat and engine for damage. If the engine is vibrating, it may signal a damaged propeller. Signal for help by radio, ﬂ ares, ﬂ ags, and horns. Get your boat checked out by your Regal dealer after grounding out in shallow water. Boat While Planing 1-32...
Page 55 If your boat gives you problems after going through a weeds and debris, be sure to get it checked out by your Regal dealer to ensure the functionality of the engine and propellers.
Page 56 Chapter 1 Fog can sometimes lead to hazardous navigation conditions. The best way to act in fog is to immediately head for the coastline, keeping a safe distance away from swimmers, divers, and other people; and following the coastline to your destination. Navigation lights, activated by pressing the appropriate switch on the dashboard, are required to be shown in fog conditions.
Page 57 Safety On Board Mooring buoys are white with blue bands. These are the only buoys and markers it is legal to anchor to in public waters. It is illegal to attach your boat to any other buoy, beacon, or marker. Lateral markers indicate the sides of channels.
Page 58 Chapter 1 Boating Under The Inﬂ uence_____________________ WARNING FEDERAL LAWS PROHIBIT OPERATING A VESSEL UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. THESE LAWS ARE VIGOROUSLY ENFORCED BY LOCAL, STATE, AND FEDERAL AGENCIES. Under The Inﬂ uence Warning Operating a vessel while intoxicated became a speciﬁ c federal offence effective in 1988.
Page 59 Safety On Board Alcohol will greatly increase your heat loss, so it increases the effects of hyperthermia. Finally, your ability to make correct judgements in emergency situations is greatly reduced. Alcohol takes away the brains ability to process information quickly and delays a persons reaction time. DON’T DRINK AND DRIVE! Some alcohol facts to remember are: •...
Page 60 • DO NOT disable the carbon monoxide alarms that come with your Regal boat. Test the unit in accordance with the alarm manufacturer’s instructions • DO NOT operate the engine for extended periods of time while in a conﬁ...
Page 61 Safety On Board • Have the engine exhaust system inspected when the boat is in for service. • Persons sleeping can easily be overcome by carbon monoxide without realizing it. DO NOT sleep on board while the engine is running. WARNING AVOID SERIOUS INJURY OR DEATH FROM CO POISONING! DO NOT OPERATE THE BOAT WITH PEOPLE ON OR NEAR THE...
Page 62 Chapter 1 The “station wagon effect” or back drafting can cause CO gas to accumulate inside the cabin and cockpit areas. Slow speeds, high bow angles, and use of protective weather coverings can cause accumulation. Carbon Monoxide Poisoning Station Wagon Effect High concentrations of carbon monoxide can be fatal in minutes.
Page 63 Safety On Board Carbon Monoxide Poisoning Transom Warning Fire__________________________________________ Fire within a vessel can spread quickly and can cause tremendous alarm. Most ﬁ res can be prevented by keeping the bilge free from oil and debris. Keep all safety equipment stowed and maintained in working order.
Page 64 Chapter 1 • Use a hand ﬁ re extinguisher. Make sure to point it at the base of the ﬂ ames. Use short bursts and sweep the extinguisher side to side. Remember: A 4 lb. extinguisher discharges in 20 seconds, so be efﬁ cient. These actions help prevent the ﬁ...
Page 65: First Aid
Safety On Board First Aid A ﬁ rst aid kit and the ability to use it are important ingredients for the safety of a captain and his passengers. Having conﬁ dence and competence in handling medical emergencies is a necessity. Invest your time in a ﬁ...
Page 66 Chapter 1 Hypothermia__________________________________ Hypothermia is a condition where the body temperature drops below the threshold to maintain a normal metabolism. It can be serious and usually occurs where victims have been immersed in cold water for an extended time. If you encounter a possible victim of hypothermia call for help on the radio and get the person out of the water.
Page 67: Safety Inspection
Safety On Board SAFETY INSPECTION It is important to ensure a safe voyage before setting out on the water. Perform the following safety inspections to ensure your vessel is properly equipped for each voyage to minimize problems and safety hazards. Get into a habit about checking these items in the same order until it becomes routine.
Page 68 Chapter 1 Ensure batteries are charged to the proper operating level Check electrical circuits (navigation lights, bilge pumps, horn, etc.) for functionality. Check that all regular maintenance has been performed. Operate blowers for 4 minutes before starting the engine. ANNUALLY__________________________________ Replace exhaust hoses or mufﬂ...
Page 69 Safety On Board U.S. Coast Guard Minimum Safety Requirements 1-47...
Page 70 Notes 1-48...
Page 71: Rules Of The Road
Rules Of The Road The Navigation Rules set forth actions to be followed by boats to avoid collision. They are referred to as the “rules of the Road”. There are two main parts referred to as the inland rules and international rules. The inland rules apply to vessels operating inside the boundaries of the United States.
Page 72: Right Of Way
Chapter 2 RIGHT OF WAY Cross waves at right angles. When caught in heavy water or squalls, head either directly into the waves or at a slight angle. Reduce speed, but maintain enough power to maneuver your boat safely. Keep your speed under control. Respect the rights of other boaters engaged in all water sports.
Page 73: Signals
Rules Of The Road • A vessel engaged in ﬁ shing; these include boats ﬁ shing with lines, trawls or nets, but not trolling lines. Sailboats have the right-of-way over power boats. However, if a sailboat is using a prop to move forward, it is considered a power boat, even if sails are up.
Page 74 Chapter 2 Whistle Signals One Short Blast - Cross Port to Port (Red to Red) - Overtaking to starboard Two Short Blasts - Cross Starboard to Starboard (Green to Green) - Overtaking to port Three Short Blasts Engines In Reverse Five or More Short Blasts Danger Signal One Long Blast Warning Signal...
Page 75: Vessel Interaction
Rules Of The Road VESSEL INTERACTION Navigation Rules recognize three types of crossing situations - meeting head-on, overtaking, and crossing. In each case, both boats are governed by special procedures. In a head on meeting, both vessels must sound a single blast and give way toward starboard, passing port to port.
Page 76 Chapter 2 Overtaking Signals When involved in a situation where crossing paths with a risk of collision, beware of the other craft’s position as well as your own. For safety, there should be a noticeable change in the angle, bow or stern; a gradual change in position indicates possible danger.
Page 77: Night Running
Rules Of The Road Crossing Signals NIGHT RUNNING Boats operating between sunset and sunrise (hours vary by state), or in conditions of reduced visibility, must use navigation lights. Nighttime operations, especially during bad weather and fog, can be dangerous. All rules of the road apply at night, but it is best to slow down and stay clear of all boats regardless of who has the right-of-way.
Page 78 Chapter 2 To see more easily at night, avoid bright lights when possible. Also, it is helpful to have a passenger keep watch for other boats, water hazards, and navigational aids. To determine the size, speed, and direction of other vessels at night, you should use the running lights.
Page 79 Rules Of The Road NAVIGATION AIDS & MARKERS Navigation aids are placed along coasts and navigable waters as a guide for mariners in determining their position in reference to land and hidden danger. Each aid provides speciﬁ c information. Buoys provide a road map to keep the skipper on course and to avoid hazards.
Page 80 Chapter 2 WARNING NEVER TIE UP TO A BUOY. IT IS ILLEGAL AND EXTREMELY DANGEROUS Buoy Warning Lateral Aids 2-10...
Page 81 Rules Of The Road Mid Channel Markers Regulatory Markers 2-11...
Page 82 Notes 2-12...
Page 83: Engine Basics
Extensive damage can result if proper winter storage is not followed. Your Regal dealer for further information regarding technical issues and parts. Refer to the maintenance section of this manual for further information or call your nearest Regal dealer.
Page 84: Engine Mounts
The speciﬁ c details of these systems can be found in your owner’s manual for the speciﬁ c engine option you chose on your Regal boat. These options are limited to speciﬁ c single drive Mercury and Volvo engines.
Page 85: Engine Removal
It should be checked after every 50 hours of operation, or if the vessel has run aground or hit a submerged object. Alignment should be checked by a Regal dealer or marine professional, since special tools and procedures are required.
Page 86: Engine Cooling System
Chapter 3 At Helm / Deck Check power trim for operation. • Check control lever for operational defects. Check the clip • and safety lanyard for functionality. Check gauges for accuracy. • Check fuel level and ensure it is sufﬁ cient for the outboard •...
Page 87 Engine & Controls Coolant Hoses_________________________________ Before each trip, the coolant system should be checked for leaks. After locating the pump housing, check the hose feeds for leaks, particularly around the hose clamps. Inspect the hoses for signs of melting or cracks, and replace as necessary.
Page 88 Chapter 3 WARNING AVOID TOUCHING THE THERMOSTAT OR ITS COMPONENTS WHILE THE ENGINE IS ON / HOT. AVOID RUNNING THE ENGINE WITHOUT A FUNCTIONING THERMOSTAT, AS IT MAY OVERHEAT. Engine Thermostat Warning Typical Open Thermostat Diagram Typical Closed Thermostat Diagram Freshwater Flushing Port________________________ Some engines offer a fresh water ﬂ...
Page 89: Engine Electrical System
The thermostat for instance transmits an electrical signal to the dash temperature gauge which mechanically rotates the needle in the display to represent the approximate engine temperature. Faults in these electrical components should be fully inspected by your Regal dealer. Alarms_______________________________________ When a malfunction with your engine or drive occurs, select engines will sound an alarm to alert the skipper of a problem.
Page 90: Spark Plugs
Chapter 3 WARNING AVOID OPERATION OF THE ENGINE AFTER AN ALARM HAS SOUNDED. USE OF THE ENGINE WITHOUT ADDRESSING THE PROBLEM MAY RESULT IN ENGINE DAMAGE OR FAILURE. Engine Thermostat Warning Distributor____________________________________ Your gasoline engine ignites the fuel by use of a spark generated at the precise moment when the fuel mixture has been fully compressed.
Page 91 Engine & Controls Alternator_____________________________________ Under normal circumstances, the starter battery would wear down after being used so often to generate a spark for the engine. This isn’t an ideal setup because a strong battery is needed for continual operation. A weak battery does no good out on the water. The alternator connected to the serpentine belt takes care of recharging the battery(ies).
Page 92: Engine Exhausting System
Chapter 3 ENGINE EXHAUSTING SYSTEM Your engine expels the by-products of the engine operation through an exhaust system, just like cars do. In boats however, this exhaust system mixes the debris left over after the power stroke of the engine with the hot water that is expelled after cooling the engine.
Page 93: Engine Fueling System
Engine & Controls ENGINE FUELING SYSTEM All engines require a source of fuel in order to run. The fuel that an engine uses, is not only comprised of gasoline (in some cases diesel), but also air. This mixture of gas and air are combined into a ratio, best suited for your engine, and therefore best suited for your boat.
Page 94: Fuel Vent
Chapter 3 You should understand the purposes of each of these components and discover their location by reading the associated owner’s manual so that you can ﬁ x a fuel system problem when the need arises out on the water. The pictures displayed in this section may not reﬂ ect you speciﬁ...
Page 95 Engine & Controls Fuel Hoses____________________________________ Fuel hoses transport gasoline from one component to another. These hoses are required to be of certain diameters in order to comply with engineering and environmental standards. Hose clamps are often used to seal the hose to a ﬁ tting, and these connections should be checked regularly.
Page 96: Fuel Tank
The fuel tank should be inspected for damage before each voyage. This should be done when you check the fuel lines for tightness and leaks. Your Regal boat uses an aluminum or polyester fuel tank that has been tested several times along with other fuel system...
Page 97: Engine Lubrication System
Engines performing on regular oil should have the oil drained and replaced every 100 hours while synthetic oil typically should be drained and replaced every 200 hours. In either case, if your Regal boat has endured one year since its last oil change, the oil should be changed again.
Page 98 Power steering ﬂ uid should be checked before every trip. It shouldn’t require changing unless contaminated with debris or water, in which case a root cause must be investigated. Contact your Regal dealer. Typical Volvo Power Steering Fluid Fill Typical Mercury Power Steering Fluid Fill Other Component Lubrication____________________ System components may also require their own lubrication schedule.
Page 99: Engine Ventilation System
Engine & Controls ENGINE VENTILATION Ventilation systems are required for all engine compartments. Your vessel features a set of four deck vents located underneath the sun pad seat, which constantly supplies fresh air to the engine compartment. A powered blower motor attached to duct work in the lower one third of the bilge evacuates air to the atmosphere.
Page 100: Stern Drive Basics
STERN DRIVE BASICS Inboard/outboard drives, or stern drives, make it easier to control your boat. Your Regal comes standard with either a Mercury or Volvo stern drive. This drive is what converts the power produced by the engine into the force required to spin a propeller. It is important...
Page 101: Stern Drive Mechanics
Engine & Controls STERN DRIVE MECHANICS The engine transmits rotational energy to the drive shaft at the engine coupler. Once engine output energy is transferred to the drive shaft, it undergoes a ratio change determined by the gear case. This converts the revolutions of your engine to applicable rotations of the propeller.
Page 102: Stern Drive Lubrication
Chapter 3 STERN DRIVE LUBRICATION The stern drive uses power trim ﬂ uid, drive oil, and propshaft lubricants to reduce wear on moving components. These ﬂ uids should be checked according to the recommended maintenance procedures determined by the stern drive manufacturer. Drive Oil______________________________________ Drive oil keeps all the mechanical components in the stern drive functioning optimally.
Page 103 Power trim ﬂ uid should be checked regularly, despite not requiring replacement unless something serious happens. Discoloration or water presence indicates a water leak in the stern drive. In that case, contact your Regal dealer. Typical Volvo Power Trim Housing (Power Trim Fill Underneath) Typical Mercury Power Trim Fill...
Page 104: Propellers
(ventilation symptom). Check the propeller rubber hub for slippage • Contact a propeller shop or your closest Regal dealer if any of the above symptoms exist. They have purchased special equipment to refurbish both stainless steel and aluminum propellers. 3-22...
Page 105: Instrumentation
Engine & Controls INSTRUMENTATION The helm station is equipped with a complete set of instruments that allows you to monitor the condition of the engine. Close observation of the gauges may save the engine from damage. Gauges do however have some inaccuracy, so do not rely upon them fully. The dash ignition panel is protected by a amain 20 amp ignition breaker located next to the key switch on the panel.
Page 106 Chapter 3 Depth Gauge__________________________________ The depth gauge indicates the water depth under the keel of the boat. It features a shallow water alarm to warn the skipper of hazardous situations. By monitoring the water depth, damage to props, and underwater hardware can be avoided. This gauge is connected to a transducer on the bottom of the hull, accessible through a removable plate in the ski locker.
Page 107 Engine & Controls The gauge in the upper right location is the volt meter. It monitors the battery condition as well as the alternator performance. Normal voltage is between 12.0 and 15.0 volts. Readings outside this range may indicate a charging system problem. Operation of a boat with low battery may lead to a hazardous situation.
Page 108 Chapter 3 Speedometer__________________________________ The speedometer indicates the approximate speed of travel of your boat in miles per hour and kilometers per hour by measuring water pressure against a small hole in a device mounted on the transom or stern drive. Obey all posted speed limit signs and slow down near other boaters and swimmers to a safe speed.
Page 109: Trim Gauge
Engine & Controls Trim Gauge___________________________________ The gauge measures the stern drive tilt and indicates the relative position of the bow, up or down when the boat is on plane. The power trim normally begins in the down position when used to accelerate the boat onto a plane position.
Page 110: Helm Control Overview
Chapter 3 HELM CONTROL OVERVIEW Typical Helm Overview 1) Feature Switch Panel 4) Ignition Panel 2) Accessory Switch Panel 5) Binnacle Control Lever 3) Steering Wheel It is important that the skipper fully understands all control equipment located at the helm before operating the boat. Each gauge is designed with a light bulb so it can be seen at night.
Page 111 Engine & Controls Feature Switch Panel____________________________ This switch panel controls the featured systems on your Regal boat. It features a horn switch, bilge blow switch, navigation light & anchor light switch, and a manual bilge pump switch. A red light shows activation.
Page 112: Steering Wheel
Chapter 3 Steering Wheel_________________________________ Your Regal utilizes a power steering system controlled by a steering wheel. While in forward gear, to turn your bow to starboard, rotate the steering wheel clockwise to starboard from the straight position. To turn to port while moving forward, simply rotate the steering wheel counter-clockwise.
Page 113 Engine & Controls NOTICE TO AVOID DRAINING THE BATTERY, DO NOT LEAVE IGNITION KEY IN THE “RUN” POSITION WITH THE ENGINE NOT RUNNING. REMOVE THE KEYS FROM THE IGNITION SWITCH. Avoid Draining Battery Notice Typical Ignition Switch 3-31...
Page 114 Binnacle Control Lever__________________________ Your vessel uses a single side-mount control lever (binnacle lever) to control the stern drive on your Regal. The three gears the binnacle can shift into are forward, reverse, and neutral. To help visualize the operating principles, we have used a clock mode.
Page 115 Engine & Controls Typical Control Lever In Neutral Position 1) Neutral Release Button 3) Control Lever 2) Trim Control Switch Typical Control Lever Showing Five Positions Pushing the throttle control lever forward from the neutral 12 o’clock position to the 11 o’clock position will engage forward gear with minimal throttle.
Page 116 Chapter 3 As you shift from neutral to forward or reverse, push the neutral release button, this allows the control lever to come out of the indented position. The control lever features a neutral safety switch which ensures the stern drive and control are in the indented neutral position for starting the engine.
Page 117 Engine & Controls Wear your safety lanyard at all times. Never shift the controls with the engine not running. Control, linkage, and/or sterndrive damage may occur. For more information, read your engine manufacturer’s manual before operating the remote control. Safety Lanyard (Interrupter Switch)_______________ The safety lanyard (used on selected control levers) sometimes called an interrupter switch is attached to the operator and the remote control panel.
Page 118: Steering System
OPERATOR Safety Lanyard STEERING SYSTEM Your Regal uses a rotary or rack style steering system. These systems transfer helm mechanical motion ot he engine. There is a hydraulic steering cylinder which with the assistance of a steering pump sends ﬂ uid force to the stern drive steering arm, changing the course of the boat, depending on the direction the steering wheel is turned.
Page 119 Engine & Controls WARNING AVOID PERSONAL INJURY AND PROPERTY DAMAGE! LOOSENING OR LOSS OF ONE OR MORE FASTENERS MAY CAUSE FAILURE OF THE STEERING SYSTEM, OR DAMAGE TO THE STEERING CABLE, RESULTING IN LOSS OF STEERING CONTROL. PERIODICALLY INSPECT THE STEERING SYSTEM. Steering System Warning WARNING AVOID PERSONAL INJURY AND PROPERTY DAMAGE! ABRUPT...
Page 120 Chapter 3 Rotary Style Steering System Rack Style Steering System 3-38...
Page 121: Systems
Systems AUTOMATIC FIRE EXTINGUISHER Optional Automatic Fire Extinguisher_____________ This system installs a ﬁ xed ﬁ re extinguisher mounted along the engine compartment wall. The extinguishing system uses an environmentally friendly agent HFC227 ea. This colorless, odorless gas is liqueﬁ ed in the canister until deployment.
Page 122: Bilge & Drainage
Chapter 4 BILGE AND DRAINAGE Regal boats are designed with a drainage system so water can be moved to the bilge from the deck where the bilge pump can pump it out to the through hull drain normally on the aft starboard side. It is important to keep all drains clear of debris so when a wave ﬂ...
Page 123 Systems and replace the impeller as necessary. To gain access to the impeller, the pump must be disassembled from the bilge pump grate. Simply push the tabs of the grate inward towards the bilge pump, while simultaneously pulling up on the bilge pump. This locking mechanism functions much like a quick disconnect clip.
Page 124: Electrical
ELECTRICAL Your boat runs off direct current (DC), supplied by your battery. Regal boats primarily use 12 volt DC batteries located in your engine compartment. It is called direct current because the current ﬂ ows one way in the circuit. Your automobile is a typical example of 12 volt DC current.
Page 125 Systems COLOR GAUGE FUNCTION Black 16 to 4 All Grounds Black / White Halon Automatic Fire Extinguishing System Blue Interior Lights Blue Cabin Light Main Feed Blue / White Transom Courtesy Lights Blue / White Cockpit Lights Brown Water Pressure Pump Brown Aft Bilge Pump / Manual Brown...
Page 126 NEVER replace a wire with a size other than shown in the chart. This practice could result in ﬁ re or component failure. Contact your Regal dealer for replacement wires and harnesses. DC Switches___________________________________ Switches located at the helm are part of your DC circuitry. Switches are in essence a break in the circuit from the battery to your electrical components.
Page 127 Your fusion stereo is also protected by a fusion installed stereo memory fuse located underneath the dash along the radio wiring, in addition to the Regal provided stereo memory fuse in the engine compartment near the battery switch.
Page 128 Chapter 4 FUNCTION AMPS TYPE PLACE Cockpit Lights Fuse Dash Fuse CO Monitor (Not Available) Fuse Dash Fuse Dashboard Protection Fuse Fuse Underneath Dash Docking Lights (Not Available) Fuse Dash Fuse Fresh Water (Not Available) Fuse Dash Fuse Garmin (Not Available) Fuse Dash Fuse Horn...
Page 129: Battery Switch
Transducer Access Plate Battery Switch_________________________________ All of your electrical systems onboard your Regal eventually connect with your battery. This is where electrical power originates. In order for any electrical systems to receive power, with the exception of your automatic bilge pump function and stereo memory require the battery switch to be turned “ON”.
Page 130 Notes 4-10...
Page 131: Vessel Operation
Vessel Operation This chapter explores the many facets of running your vessel from casting off to docking. We cover the basics, but suggest you read other information on the chapter topics. Also, become familiar with your engine owner’s manual, since many of the items discussed are found there in more detail.
Page 132 Chapter 5 • Have all passengers been briefed on emergency procedures and seated for departure? Is the boat load balanced? • Is the operator sober, alert, and ready to skipper the vessel? • Have all passengers been ﬁ tted for life jackets? •...
Page 133 Vessel Operation • As skipper, are you on the lookout for changing weather? • As skipper, are you checking for abnormal vibration or steering? • Is the remote control safety lanyard (if equipped) tightly secured to your belt or clothing? Disembarking Questionnaire_____________________ •...
Page 134: Fueling
Chapter 5 FUELING WARNING AVOID PERSONAL INJURY OR DEATH! GASOLINE IS A HIGHLY FLAMMABLE AND EXPLOSIVE MATERIAL. PRACTICE “NO SMOKING” AND EXTINGUISH ALL FLAMMABLE MATERIALS WITHIN 75 FEET OF THE FUEL DOCK. No Flames Near Fuel Warning WARNING AVOID SERIOUS INJURY OR DEATH FROM LEAKING FUEL RESULTING IN AN EXPLOSION OR FIRE.
Page 135: Before Fueling
Vessel Operation Fuel Fill Fitting Before Fueling_________________________________ • Make sure a working ﬁ re extinguisher is close at hand • Stop engines and any device that can cause a spark. • Disembark all passengers and crew not needed for fueling. •...
Page 136: During Fueling
Chapter 5 • Tie up your boat securely at the fuel dock. • Identify the fuel ﬁ ll. Unfortunately, people have mistakenly ﬁ lled the water or waste with fuel. • Visually inspect all fuel system components before each ﬁ lling •...
Page 137: Starting, Shifting, Stopping
Vessel Operation • Sniff in the lower bilge and engine compartment for gas fumes. If fumes are detected, continue to ventilate until the odor is gone. Look for any traces of fuel droplets or spillage. Do not start the engines, smoke, or run any electrical components until the fumes can no longer be detected.
Page 138 Chapter 5 Position the binnacle control lever in the neutral position. Connect the safety lanyard to the cut off switch, and fasten it to a belt or article of clothing such as a belt loop, and turn the switch to the run position. Turn the ignition key to the momentary start position.
Page 139 Vessel Operation Shifting the control lever forward to the 11 o’clock position engages forward gear, in which throttle can be adjusted until the 9 o’clock po- sition. Shifting the control lever backward to the 1 o’clock position engages reverse, in which the throttle can be controlled through the 3 o’clock position.
Page 140: Stern Drive Maneuvering
Large horsepower stern drive boats do produce more thrust and steering torque but Regal boats have the advantage of power steering. Boats do not handle like automobiles do. Where a car would turn about its front wheels, a boat turns about its center of gravity.
Page 141 Vessel Operation unwanted direction. It is a normal occurrence, but the effect can be managed with trim tabs on the stern drive. On your stern drive, there is a trim tab (also serves as a sacriﬁ cial anode). This trim tab in essence puts a little more drag to the starboard side of your boat.
Page 142 Chapter 5 Gathering Headway____________________________ When a stern drive is not moving forward or reverse in the water and the propeller is not turning (shift in neutral), the boat will not react to the helm steering wheel. As soon as the vessel is shifted into forward gear, the propellers action creates a discharge motion and generates energy in the form of thrust.
Page 143 Vessel Operation and the act of pushing the bow to the appropriate direction. At greater speeds, even the slightest movement at the helm will result in quick reaction by the boat. As the vessel operator gains experience, he/she will better gauge each maneuver and speed situation. There is no substitute for actual experience driving a vessel, and the skipper should always keep that in mind while keeping the safety of himself and his passengers in the highest priority.
Page 144 Chapter 5 Stopping______________________________________ Remember that your boat does not have any brakes. It uses reverse thrust from the propeller to stop. Remember that once headway is gathered, water is ﬂ owing past the drive in a set direction. Reversing this ﬂ ow to slow down will take some time. As power to the propeller is increased, the propeller thrust becomes stronger and will reverse the ﬂ...
Page 145: Trim Angle
Vessel Operation TRIM ANGLE Stern drive boats have the ability to angle in or out their stern drive unit in relationship to the transom. This is accomplished by hydraulic cylinders located on the out drive along with an electrical sender unit that reads the drive angle and relays the information to the dash trim gauge.
Page 146 STABILITY AND STEERING TORQUE CAN ALSO VARY DUE TO CHANGING WATER CONDITIONS. IF YOU EXPERIENCE ABNORMAL BOAT INSTABILITY AND / OR HIGH STEERING TORQUE, SEE YOUR AUTHORIZED REGAL DEALER. Trim Adjustment Caution Use Of Power Trim_____________________________ The power trim is normally used prior to accelerating onto a plane, after reaching the desired RPM or boat speed and when there is a change in water or boating conditions.
Page 147 Vessel Operation To determine the proper trim angle, experiment a little until you are familiar with the changes in your boat. The vessel will be properly trimmed when the trim angle provides the best boat performance for the particular operating conditions. A trim position that provides a balanced steering load is desirable.
Page 148 Chapter 5 Operation In “Bow Down” Position_______________ The “bow down” or “in” position is normally used for acceleration onto a plane, operating at slow planning speeds, and running against a choppy wave condition. It is also used when pulling water skiers, tubers, knee boarders, etc.
Page 149: Shallow Water Operation
Vessel Operation Shallow Water Operation________________________ Operating your vessel in shallow water presents various hazards. You are more apt to hit a submerged object such as a rock, sand bar, stump, coral, or other unmarked objects. Pay close attention to your charts for descriptions of any shallow areas, along with navigational markers on the water.
Page 150: Fenders
Chapter 5 FENDERS Fender Usage__________________________________ Fenders are normally made of a rubberized plastic and are usually ﬁ lled with air. Most have a ﬁ tting like a basketball, so they can be inﬂ ated or deﬂ ated. Fenders are available in a wide range of sizes and shapes to ﬁ...
Page 151: Dock Line Basics
Vessel Operation DOCK LINE BASICS Most skippers use dock line terminology fairly loose, but there is more to the basics than just bow or stern lines. There are several lines that can be secured to the bow and stern and depending on their direction and use can be called other names.
Page 152 Chapter 5 Boat Mooring__________________________________ Most boats can be secured to a dock using four lines. The bow and aft spring lines cross over each other and are secured to individual dock cleats or pilings. This ensures longer springs. Fender Typical Mooring Diagram 1) Stern Line 3) Forward Spring Line 2) Aft Spring Line...
Page 153 Vessel Operation Use the right line for your vessel, since a line too large will pull hard against the vessel rather than stretch and ease the vessel into place, and lines too small will wear and chafe under strain. Securing Lines_________________________________ When mooring your boat, make sure the dock lines are secured at both ends.
Page 154: Stern Drive Docking
Chapter 5 STERN DRIVE DOCKING Inboard/outboard powered boats are fairly easy to back up and maneuver with a little knowledge and docking practice. One of the most important aspects of the process is to keep your calm in the wake of a busy marina. Basically the reversing propeller is turned in the direction you want to go by using the helm wheel.
Page 155 Vessel Operation Center the wheel to align the boat parallel with the dock. If the stern is too far from the dock, shift to neutral, then put the wheel hard over to port and then go forward for a second or two. Docking Step Three When the boat is completely into the dock, stop stern movement by...
Page 156: Anchoring
Chapter 5 ANCHORING Selecting the correct anchor is an important decision. For most anchors to perform more efﬁ ciently, you should attach 3 to 6 feet of chain to the anchor. The chain will stand up to the abrasion of sand, rock, or mud on the bottom much better than a nylon line.
Page 157: Towing
Vessel Operation TOWING In case you ﬁ nd yourself aground or in need of a tow, or should you want to tow another vessel, keep in mind that you NEVER use deck hardware or cleats to secure lines for towing! Deck hardware is intended for mooring and anchoring, and is not designed to withstand the strain and pull of towing.
Page 158: Knots
Chapter 5 KNOTS Knots are useful in docking, towing, and other emergency situations. Learning to tie knots requires practice. As they say, “Practice makes perfect”. Some of the knots used in boating are the square, bowline, anchor bend, clove hitch, ﬁ gure eight, and half hitch. There are several periodicals available that explain various knots and how to tie them effectively, often available at marinas and boat shops.
Page 159: Environmental Awareness
Vessel Operation ENVIRONMENTAL AWARENESS There are numerous vessels operating on our waterways on a daily basis. Every boat has an impact on our environment. Boat operation habits, marine sanitation, and maintenance all play a role in a delicate battle to keep the ecosystem clean. Each of us has a role in doing our part as an environmentally conscious skipper to conserve our waterways.
Page 160: Carb
CALIFORNIA AIR RESOURCE BOARD (CARB LABEL Your Regal boat may have a star shaped label afﬁ xed to the bow, port hull side. It is located in the area in front, where normally the state registration numbers are positioned. This label is part of the California Air Resource Board (CARB) SD/I rule.
Page 161: California Proposition 65
Vessel Operation CALIFORNIA PROPOSITION 65 Proposition 65 relates to the state of California and is an additional requirement added to their Safe Drinking & Toxic Enforcement Act of 1986. Prop 65 basically summarized states that: “No person in the course of doing business shall knowingly discharge or release a chemical known to the state to cause cancer or reproductive toxicity into water or onto land where such chemical passes or probably will pass into any source of drinking water...”...
Page 162: Fuel Spillage
(bilge) warning of overboard discharge of oil or oily waste. Your Regal comes equipped with a bulkhead to hold back fuel in case of a fuel tank leak or in the event of fuel tank drainage. DO NOT remove the drain plug along the fuel tank bulkhead between the fuel tank and the engine compartment to allow fuel to ﬂ...
Page 163: Equipment Operation
Some of the equipment described may not be installed on your boat or the pictorials may not exactly resemble equipment on your boat. Remember, Regal is constantly improving its product line and therefore may make changes in parts and speciﬁ...
Page 164: Automatic Fire Extinguisher
Chapter 6 AUTOMATIC FIRE EXTINGUISHER Optional Automatic Fire Extinguisher_____________ The automatic ﬁ re extinguisher is mounted in the engine compartment. It uses sensors to automatically discharge when a ﬁ re occurs, although it can be manually discharged. Upon actuation, you may hear a sound similar to that of a small ﬁ...
Page 165 Equipment Operations For safety information, refer to your ﬁ re extinguisher label. General safety requirements are described in the safety on board chapter of this manual. For system information, refer to the systems chapter of this manual. Maintenance requirements are described in the maintenance chapter of this manual.
Page 166: Battery Switch
BATTERY SWITCH Standard Battery Switch_________________________ Your Regal uses an “ON” and “OFF” position battery switch located in the engine compartment that not only provides power for the engine, but runs all the features on your boat. With this style switch, the operator simply turns the knob to the “on”...
Page 167: Bilge Pump
Equipment Operations BILGE PUMP Before each outing, check the operation of the bilge pump, automatic switch, and manual switch. The bilge pump should automatically activate when water reaches a pre-determined height in the engine compartment. Test the bilge pup manually at the dashboard with the switch.
Page 168: Blower
Chapter 6 BLOWER A switch at the helm controls the blower in the bilge. The blower must be activated and run at least 4 minutes prior to starting the engine. The fan cycles fresh air into the engine compartment. It is connected to the ventilation hoses reaching the lower 1/3 of your bilge.
Page 169: Canvas & Covers
CANVAS & COVERS Optional Bimini Top____________________________ Your Regal boat has the option of being equipped with a bimini top. This option provides some sun protection for the bulk of your cockpit and helm. Your bimini top comes ﬁ tted inside a zippered boot. Bimini bows provide support as your bimini top extends forward.
Page 170 Chapter 6 First assemble your bimini. Slide all bows through the appropriate sleeves on your canvas. Then attach all bows to the appropriate support arm on the bimini. These bows attach by use of a ball and saddle joint. Slide the ball through the saddle until it stops, then secure the joint from behind by sliding the tethered pin through the saddle.
Page 171 Equipment Operations Typical “Camel Back” Eye Strap Connection For towing and trailering purposes, the bimini top can be left on the boat, but the boot sleeve must be installed with the bimini rolled up and fully collapsed. This storage procedure should be followed when boat speeds exceed 35 miles per hour.
Page 172 Chapter 6 To install the bow/cockpit cover: First note that on the bow end of the cockpit cover, there is a velcro strip used to attach to an optional bow cover. This strip can be used to align the covers with your boat. Simply align the velcroed edge with the windshield.
Page 173 Equipment Operations WARNING AVOID PROPERTY DAMAGE AND PHYSICAL INJURY! DO NOT TOW BOAT WITH CANVAS COCKPIT OR BOW COVERS IN PLACE. ONLY TOW YOUR BOAT USING THE TRAVEL COVER. Bow and Cockpit Cover Warning Typical Bow And Cockpit Cover Optional Storage / Travel Cover___________________ The optional travel cover is the only cover approved for towing purposes.
Page 174 Chapter 6 Place the cover over your boat from bow to stern over a closed windshield. Use the ratchet system to hold the cover in place and prevent damage caused by loose canvas. Cleats should protrude from the travel cover as well as a closed bimini top if that option was purchased separately.
Page 175 Equipment Operations use of a ball and saddle joint. Slide the ball through the saddle until it stops, then secure the joint from behind by sliding the tethered pin through the saddle. From the storage position, un-clip and fully unroll the sunshade.
Page 176 Chapter 6 Typical Sunshade For Sport Tower 6-14...
Page 177: Cockpit Lights
Equipment Operations COCKPIT LIGHTS A switch at the helm controls the courtesy lights in the cockpit area. Using these lights is especially useful when boarding or exiting the vessel at night. A light is normally located at the bow and transom walk-thru areas.
Page 178: Depth Sounder
Chapter 6 DEPTH GAUGE / SOUNDER In theory the depth gauge picks up a bottom signal sent through a transducer to the helm gauge unit which is converted to readings in feet, meters, or fathoms, and displayed on the gauge. The unit features shallow or deep water alarms, both of the audio and visual type, and keel offset.
Page 179 Equipment Operations POWER ON When the helm is powered up by the key switch, 12 volt DC energy is available at the depth gauge along with the remained of the instrument cluster. You do not need to press the “ON/OFF MODE” keypad. The LCD will illuminate showing the depth and the type of units selected;...
Page 180 Chapter 6 KEEL OFFSET By pressing the “ON/OFF MODE” keypad again, the alarm will display the keel offset setting “KL”. It can be set so the depth ﬁ nder shows the depth below the transducer, or the depth under the keel. Press the up or down arrow keypads to adjust the reading to the desired depth no further than 19.9 feet.
Page 181 Equipment Operations WARNING AVOID INJURY OR DEATH! THE DEPTH SOUNDER IS NOT TO BE USED FOR NAVIGATION OR AS A DEVICE TO AVOID GROUNDING. USE CAUTION WHEN OPERATING IN SHALLOW AREAS AND MAINTAIN A VERY SLOW SPEED. BE AWARE THAT WATER DEPTHS MAY CHANGE TOO QUICKLY FOR YOU TO REACT AND AVOID GROUNDING! Depth Sounder Warning...
Page 182: Drain Plug
Chapter 6 DRAIN PLUG Your boat is equipped with a drain plug centrally located on the transom below deck level. Make sure it is installed tightly before launching. Tighten with a wrench. Do not use your ﬁ ngers alone to tighten it.
Page 183: Horn
This can be installed as an after market installation to the factory equipped stereo unit on your Regal. A total of four speakers are installed on your Regal, which can be upgraded to a total of six speakers with an ampliﬁ er with the purchase of the stereo performance package option.
Page 184 Chapter 6 1) Catch / Release Button 8) Play / Pause Button 2) Menu Button 9) Forward / Next Button 3) Radio Button 10) Power Button 4) Auxiliary Button 11) Mute Button 5) iPotd Button 12) Clock Button 6) Rotary Encoder 13) Brightness Button 7) Back / Previous Button POWER...
Page 185 Equipment Operations The auxiliary button selects an auxiliary device hooked up to the stereo unit. The iPod button selects the iPod source from the internal hook-up. SEARCH STATIONS (FM ONLY) Your antenna may pick up different radio stations as you change your location.
Page 186 Chapter 6 This can alternatively be accomplished by pressing and holding the play button while listening to the radio station. REMOVE PRESETS To remove a radio station from your preset list, press the menu button and use the rotary encoder to select the “Presets” option. Now use the rotary encoder to select the “Remove Presets”...
Page 187 Equipment Operations BALANCE Select the menu button in the upper left hand corner and turn the rotary encoder to scroll through the menu options and select “Setup” by pressing the encoder in. In this sub-menu, use the rotary encoder to select “Balance”. Now use the rotary encoder to modify the sound coming out of the left and right speakers on a scale from -7 (left) to +7 (right).
Page 188 ZONES Your Regal comes standard with two equipped zones. Zone one refers to the two speakers in the forward position nearest the helm and companion seats. Zone two refers to the two speakers in the aft position nearest the aft cockpit.
Page 189 Equipment Operations CLOCK DISPLAY To display the clock, simply press the clock button on the face of the stereo. It is the middle button on the bottom row of function buttons on the stereo face. This toggles the clock display on the LCD screen.
Page 190 Chapter 6 Typical Internal iPod Docking Station The play/pause, back/previous, and next/forward buttons should function as previously described. To repeat or shufﬂ e, press the menu button and select the “Repeat/shufﬂ e” option. Select “Repeat Track” to repeat the current track, or “Shufﬂ e Tracks” to shufﬂ e individual tracks or “Shufﬂ...
Page 191: Navigation Lights
Equipment Operations Optional Performance Package___________________ The optional upgrade includes 2 extra speakers and an ampliﬁ er to drive the system. The ampliﬁ er is normally located in the port bow storage area. The 30 amp fuse for the ampliﬁ er is normally located in the engine compartment near the battery switch.
Page 192: Seat, Hatch, & Storage
Chapter 6 SEAT, HATCH, & STORAGE Bucket Helm Seat______________________________ The bucket helm seat and optional companion bucket seat (see later in this section) features forward and aft movement, as well as a swivel motion that allows the seat to pivot, and a ﬂ ip up bolster cushion that allows any user to control his/her comfort and position.
Page 193 Equipment Operations Typical Bucket Seat Layout 1) Flip up Bolster 3) Fore & Aft Adjustment Knob 2) Swivel Handle Optional Companion Bucket Seat_________________ The companion bucket seat option replaces the standard companion seat with a bucket seat just like the helm. Controls and maintenance procedures are the same.
Page 194 Chapter 6 Engine Hatch / Sun Pad________________________ Your engine is accessible through the engine hatch which doubles as a sun pad. This hatch must ALWAYS be closed and locked while underway. The sun pad should NEVER be used while the engines are on.
Page 195: Ski Locker
Typical Transom Filler Cushion Ski Locker____________________________________ Your Regal is equipped with a ski locker amidship, which is used to store equipment. Its long and narrow proﬁ le make it perfect for storing ski equipment. To open your ski locker, pop the handle up, rotate the handle 180 degrees, and pull up on it.
Page 196: Glove Box
Chapter 6 Glove Box_____________________________________ The glove box on the port dash panel can be closed and locked with a key to keep valuables safe while onboard. To open the glove box, unlock it using the key, and press the lock mechanism down while lifting the lid open.
Page 197: Sport Tower
Equipment Operations SPORT TOWER Optional Sport Tower___________________________ An optional sport tower feature is available for your boat. This tower option is a collapsible design for trailering and storage purposes. To collapse and expand the sport tower, simply unscrew the black knobs at the attachment joints, and remove or reassemble the aluminum poles.
Page 198: Swim Ladder
Typical Swim Ladder exiting the vessel. SWIM PLATFORM Your Regal features the largest-in-class swim platform available. It is important to note that the swim platform is connected to the transom of your boat by hardware that should be periodically inspected for tightness.
Page 199 Equipment Operations WARNING! MAXIMUM CAPACITY OF SWIM PLATFORM 500 POUNDS 226 KG Swim Platform Warning WARNING AVOID SERIOUS INJURY OR DEATH! DO NOT OPERATE THE ENGINES WITH PEOPLE ON TOP OR HOLDING ONTO THE SWIM PLATFORM OR HARDWARE. Do Not Start Engine With Swim Platform In Use Warning WARNING AVOID SERIOUS INJURY OR DEATH! DO NOT ALLOW ANYONE TO TEAK SURF BY USING THE SWIM PLATFORM AND/OR...
Page 200: Windshield
Chapter 6 Typical Swim Platform WINDSHIELD The center windshield must be closed and locked at all times during which the boat engine is running. Make sure both locking latches are ﬁ rmly seated in a horizontal position against the windshield framework. Magnets will secure the center windshield when open.
Page 201: Maintenance
Care & Maintenance This section covers the care and maintenance of your Regal boat. Many cosmetic care topics including exterior hardware, upholstery, ﬁ berglass, and canvas are discussed. Also, major equipment and system maintenance is covered. As always, refer to the owner’s information pouch and the manufacturer’s owner’s manuals for...
Page 202 Optional Cockpit Carpet_________________________ Your Regal has an optional carpet feature that covers select portions of your hull in carpet. The three carpet pieces attach via eyelet snaps on the deck of your boat.
Page 203 Care & Maintenance Plastics_______________________________________ Use plastic cleaners and polishes recommended for marine use only. Use proper applicators. Read all instructions carefully. Test the product in a small area ﬁ rst. Use a soft rag and always rinse the surface with water. Ammonia based cleaners and abrasives will damage plastic parts.
Page 204 Chapter 7 Basic maintenance includes monthly washing of the boat’s surface to remove normal accumulation of soil and stain. Mild detergents such as dishwasher powder or liquid. DO NOT use automatic dishwasher detergent. Avoid any kind of alkaline cleaners such as tri-sodium phosphate (TSP), abrasives, bleaches, and ammonia.
Page 205: Minor Repairs
55 compound. Compounds are graded like sandpaper, the higher the compound, the ﬁ ner it is. Various glazes and polishes are available as needed. Ask your marine professional or Regal dealer for more information. Fiberglass hulls are strong, but they can be damaged.
Page 206 Chapter 7 • Razor Blade • Fine Sandpaper (400, 600, 1000) Wax Paper (to cover repair area) • WARNING AVOID BODILY INJURY! GELCOAT & FIBERGLASS RESIN ARE FLAMMABLE. WORK IN A WELL VENTILATED AREA FREE FROM OPEN FLAMES. DO NOT SMOKE! Resin Warning For most minor repairs, refer to the following procedure: Clean the area to be repaired and get rid of any wax or...
Page 207 The optional bimini top and other optional canvas that may be supplied on your Regal boat are manufactured from top quality materials to provide you with years of trouble free service. The following...
Page 208: Sunbrella Cleaning Instructions
Chapter 7 Sunbrella is a woven fabric. Even though it is treated with water repellency, some “misting” through the fabric is typical. With new canvas, the greatest potential for leakage is through the sewn seams. Because Sunbrella and the long term thread used ins synthetic, the holes created by sewing will not swell up and seal when exposed to water as cotton does.
Page 209 Care & Maintenance electric or gas dryer! Excessive heat can damage and shrink the fabric since it is heat sensitive. This method of cleaning may remove part of the water and stain repellent that was applied to the fabric during its manufacture. It is recommended to retreat with such water repellency products as Apseal and Uniseal.
Page 210: Hull Bottom
Contact a marine professional or Regal dealer for more information. Frequent Stains________________________________ There are many items that can cause stains to your boat. Some items can even leave permanent stains.
Page 211 Care & Maintenance FREQUENT STAINS STEP 1 STEP 2 STEP 3 Coffee, Tea, Chocolate Permanent Marker * Household Dirt Grease Ketchup, Tomato Products Latex Paint Oil Based Paint Mustard Suntan Oil Asphalt / Road Tar Crayon Engine Oil Spray Paint Chewing Gum Shoe Polish * Ball Point Pen *...
Page 212: Engine Maintenance
Because of the advanced ignition and fuel injection systems used on marine engines, it is best to contact your Regal dealer or engine manufacturer for more detailed service procedures for your speciﬁ c engine.
Page 213 Care & Maintenance Check the intake and exhausting lines before each voyage. These lines enter your water pump which is normally located on the forward side of your engine near the bottom. To ﬂ ush your engine, ensure that the engine is turned off. Then connect a freshwater source to the fresh water port either as part of the engine, or available as an attachment on the stern drive depending on the engine manufacturer.
Page 214 Chapter 7 Engine Fueling System__________________________ Your fuel system requires inspection with each trip, along with yearly inspection and maintenance. To inspect your fuel lines, all lines need to be visually inspected for cracks, melting, crimped spots, and leaks. These lines can be traced back from the fuel tank.
Page 215 No metal ﬂ akes should be present in the oil. If these conditions exist, contact a Regal dealer and avoid operation until the problem is ﬁ xed to ensure minimal property damage.
Page 216 Changing engine oil and drive oil requires special tools carried by your Regal dealer. It is best to contact your Regal dealer for oil changes as required. When they change the oil, the oil ﬁ lter should be changed as well.
Page 217 Beyond the possible replacement of a bad battery, when fuses “blow”, the engine should be inspected by your Regal dealer before replacing the fuse. Beyond this, your engine computer should be cleared of codes annually by your Regal dealer.
Page 218: Stern Drive Maintenance
Chapter 7 STERN DRIVE MAINTENANCE Each engine and stern drive package is unique and quite complex. A select portion of the maintenance items are covered in this chapter including basic periodic maintenance and lubrication speciﬁ cations. Refer to your propulsion manufacturer’s owner’s manual for complete details and speciﬁ...
Page 219 Discolored ﬂ uid suggests a water leakage problems. If discolored drive oil presents itself, contact your Regal dealer. Volvo normally places the drive oil dipstick on top of the stern drive, while Mercury makes the reservoir accessible on the engine.
Page 220: Checking Power Trim Fluid
Fluid increases may also be a sign of water in the power trim ﬂ uid while ﬂ uid loss may be a sign of a leak. If water presence is discovered, contact your Regal dealer. Volvo based systems normally have power trim ﬂ uid located on the stern drive mounted to the transom, while Mercury systems normally have a reservoir mounted in the engine compartment.
Page 221 Damage due to neglecting anode inspection service is not covered under Regal or engine manufacturer warranty. Propellers_____________________________________ Out of balance or nicked props will effect performance or cause vibration.
Page 222 Chapter 7 bent portion of the blade until straight. This procedure will assist the operator in reaching port in order to fully repair / re-pitch the propeller. Use the following procedure to remove single stern drive propellers. This method provides a safety margin from sharp propeller blades - especially those with stainless steel propellers.
Page 223 Care & Maintenance Slide propeller on shaft completely. Place thrust washer on propeller shaft splines. Shift the remote control into reverse with the key switch in the off position. Install and tighten the propeller nut to manufacturer speciﬁ cations. Install keep on prop nut until aligned with cotter key hole. Install cotter key and bend tabs over.
Page 224 Chapter 7 TYPICAL MERCURY PROPELLER INSTALLATION To install a propeller on a mercury equipped propulsion package: Coat the propeller shaft with the recommended marine lubricant. Place the forward thrust hub on the prop shaft with the taper matching the taper on the propeller shaft. Slide drive hub on, with the propeller installed over that.
Page 225: Equipment Maintenance
Steering______________________________________ Regal boats use rack or rotary style systems that feature a cable with assistance through the engine power steering pump. As you turn the wheel, the force is applied through the system to a hydraulic cylinder attached to the engine rear and attached through the engine power steering pump hoses.
Page 226 Chapter 7 Add only distilled water after charging the batteries or periodically as needed. Distilled water contains no mineral residues and therefore is noncorrosive. DO NOT overﬁ ll because sulfuric acid could run over and cause burns or an explosion. WARNING PREVENT BODILY INJURY! WEAR GOGGLES, RUBBER GLOVES, AND A PROTECTIVE APRON WHEN WORKING WITH...
Page 227 An application of silicone spray on the cable ends periodically will keep control cables working freely and ﬁ ghts corrosion. Contact a marine professional or Regal dealer for further assistance. Seating_______________________________________ Inspect all fasteners and metal for fatigue. Lubricate the slider track with a marine type lubricant only.
Page 228 Chapter 7 Circuit Breakers / Fuses_________________________ The fuse panel is found in the starboard bow storage locker in front of the helm. Open the bow backrest to access the panel. The helm or sometimes called the dash, features fuses for each system it controls. A fuse is recognized as a color coded piece inserted into the fuse block.
Page 229: Maintenance Checklists
Care & Maintenance MAINTENANCE CHECKLISTS The information presented here is merely a guide to be used on typical engines, and may not directly apply to your engine package. Refer to your engine owner’s manual for complete details and speciﬁ c information about your engine’s maintenance schedule.
Page 230 Chapter 7 VOLVO MAINTENANCE GUIDE CHECK EVERY EVERY EVERY EVERY EVERY TRIP MONTH YEAR / 100 HRS YEARS YEARS Binnacle Control Lever - • Functions At Helm Batteries - • Hold Charge, No Corrosion Lubrication System - • Stern Drive Oil Stern Drive Bellows - •...
Page 231 Care & Maintenance VOLVO MAINTENANCE GUIDE CHECK EVERY EVERY EVERY EVERY EVERY TRIP MONTH YEAR / 100 HRS YEARS YEARS Flame Arrestor - • Clean & Secure Anodes - Check & Replace if • 30 % Eroded Stern Drive Bellows - •...
Page 232 Chapter 7 Mercury Maintenance Guide_____________________ Mercury recommends strictly following their maintenance schedule to ensure proper functionality and longevity of your engine. MERCURY MAINTENANCE GUIDE CHECK EVERY EVERY EVERY EVERY EVERY TRIP WEEK YEAR / MTHS. 100 HRS YEARS Cooling System - Flush •...
Page 233 Care & Maintenance MERCURY MAINTENANCE GUIDE CHECK EVERY EVERY EVERY EVERY EVERY TRIP WEEK YEAR / MTHS. 100 HRS YEARS Fuel System - • Fuel Filter Change Fuel System - • Fuel Pump Function, Leaks Lubrication System - U-Joint & Spline Wear, •...
Page 234 Notes 7-34...
Page 235: Troubleshooting
Additional assistance is available in the engine manufacturer’s owner’s manual. Also, you can contact your closest Regal dealer or marine professional for more information. Most defects can be found by doing a logical sequence...
Page 236: Engine & Stern Drive
Chapter 8 ENGINE & STERN DRIVE DIAGNOSTIC CHART Problem Possible Cause Engine Overheating Water pick-up feeds are blocked by debris Cooling system drain plugs not installed Cooling system leak Impeller is damaged or blocked by debris Propeller is over propped for the circumstances, causing the engine to work extra hard Debris in oil is holding heat more than...
Page 237 Troubleshooting ENGINE & STERN DRIVE DIAGNOSTIC CHART Problem Possible Cause Battery switch turned off Battery is weak Fuses are blown on the engine Bad ignition relay / ignition switch Engine Cranks But Will Not Start Fuel tank vent obstructed Low battery level Inadequate fuel level Inadequate fuel pump pressure Fuel tank vent blocked...
Page 238 Bad oil quality / type Distributor cap / rotor corroded Loose serpentine belt Bad alignment Water In Oil / Power Trim / Could be any number of problems - Power Steering Fluid Contact your Regal dealer Engine And Stern Drive Diagnostic Chart...
Page 239: Control System
Troubleshooting CONTROL SYSTEM DIAGNOSTIC CHART Problem Possible Cause No Reading On Gauge or Gauge Faulty gauge Is Inaccurate Faulty wiring to gauge Faulty sender Gauge Reads Erratic Loose ground or hot wire connection Binnacle Control Lever Stiff Shift system bushings and seals broken / Inoperative / Stalls When Shifting Kinked, broken, damaged cable...
Page 240: Electrical System
Chapter 8 ELECTRICAL SYSTEM DIAGNOSTIC CHART Problem Possible Cause No 12 Volt Power At Battery Battery switch turned off Weak or dead battery Battery cables disconnected from storage Bad voltmeter or voltmeter connection Battery Not Charging While Loose / damaged serpentine belt Engine Is Running Faulty alternator - check with volt meter Faulty volt meter...
Page 241: Bilge & Drainage
Troubleshooting BILGE & DRAINAGE SYSTEM DIAGNOSTIC CHART Problem Possible Cause Bilge Pump Not Functioning Float switch jammed - check for debris Automatically Automatic bilge pump fuse blown - investigate why the equipment was drawing too much current or why it had a circuit short Battery connection corroded Impeller is damaged or blocked by debris...
Page 242: Stereo
Chapter 8 STEREO DIAGNOSTIC CHART Problem Possible Cause No Power At Stereo Battery switch turned off Fuse is blown - investigate why the equipment was drawing too much current or why it had a circuit short. Check ignition panel breaker, memory fuse in engine compartment, memory fuse underneath dash, and ignition protection fuse underneath dash...
Page 243 Troubleshooting STEREO DIAGNOSTIC CHART Problem Possible Cause Standard zone max volume settings are Loose speaker wire connections Water in cockpit speakers Standard Speakers Working Only Added speaker zone max volume settings are low Loose speaker wire connection Water in bow speakers iPod Not Working iPod not plugged in properly using appropriate sleeves...
Page 244: Audible Alarms
Depending on the propulsion package you chose to equip on your Regal, alarm sounds can vary. On your Regal boat, your engine sounds an alarm in the case of one of the following causes: • Low Oil Pressure •...
Page 245: Storage & Winterization
Use the enclosed checklists to help you identify areas of concern and maintenance. These lists cover land stored boats either inside or outside. Call a Regal dealer or marine professional for further information. WARNING EXPLOSION, FIRE, AND POLLUTION HAZARD! DO NOT FILL FUEL TANK TO RATED CAPACITY.
Page 246: Decommissioning Checklist
Chapter 9 CAUTION REMOVE BATTERY(IES) WHEN VESSEL IS IN LONG PERIODS OF STORAGE. BEFORE YOU REMOVE THE BATTERY, TURN OFF THE IGNITION SWITCH ALL ELECTRICAL SWITCHES, AND BATTERY SWITCH. Battery Caution DECOMMISSIONING CHECKLIST Engine_______________________________________ • Run engine. Pour a fuel stabilizer / conditioner in the fuel tank.
Page 247 Storage & Winterization • Change engine oil, drive oil, oil ﬁ lter, and fuel ﬁ lter, along with any other ﬂ uids recommended by your engine manufacturer’s owner’s manual. • Perform additional engine seasonal/yearly maintenance as required. • Spray all exterior parts with a rust preventative. Sterndrive_____________________________________ •...
Page 248 Chapter 9 • Remove battery(ies). Charge and reﬁ ll batteries with distilled water as required to maintain an appropriate charge. Consider a trickle charge for winter storage, or check the battery monthly to maintain charge levels. Seek directions from the battery manufacturer. •...
Page 249 Storage & Winterization Trailer________________________________________ • Repack all wheel hearing per manufacturer’s speciﬁ cations. • Check all trailer parts for excessive wear. Replace/refurbish as needed. • Use touch up paint on trailer as needed. • Lubricate all moving parts as needed. •...
Page 250: Recommissioning Checklist
• as required. Replace damaged parts as required. Ensure water hasn’t entered the oil, fuel, power steering, or • power trim reservoirs. Contact your Regal dealer if water is present. Run the engine before launching. Check for leaks in •...
Page 251 Storage & Winterization Boat_________________________________________ Finish performing all boat seasonal/yearly maintenance as • required. Install drain plug after ensuring water has been drained. • • Install battery(ies) and tighten all terminals. • Check all control systems, equipment, switches, alarms, gauges, and fuses for proper operation. •...
Page 252 Notes...
Page 253: Trailering
You may ﬁ nd it helpful to ask someone to check your turn signals, brake lights, and towing lights while you remain in the vehicle applying them. Your Regal also features a towing electrical connection at the bow next to the navigation light.
Page 254 Securing Your Boat_____________________________ Be certain that your trailer is of rated capacity for the size and weight of your boat, including the weight of all fuel, water, and gear. Your authorized Regal dealer can advise you on the proper trailer capacity 10-2...
Page 255 Trailering and tongue weight (the weight exerted on the rear of your vehicle). Give consideration to the weight distribution of your trailer. If the rear end of your vehicle sags, chances are the load is positioned too far forward on your trailer. This can make it especially difﬁ cult to drive safely as the hitch may be in danger of striking the road.
Page 256 Standard boats operate the trim from the helm. Optional Transom Trim / Tilt Switch______________ You Regal has the option to be equipped with a transom trailer switch. If equipped, this switch is located on the transom of your boat, above the swim platform, normally on the port side.
Page 257 Trailering Securing Your Trailer___________________________ Start with the parking jack up high enough that the tongue of the trailer extends over the trailer hitch securely mounted to your vehicle. Most trailer hitches use a pin and keeper system to connect to a vehicle. Your hitch should also have a location for each of the safety chains to be mounted.
Page 258 Chapter 10 Typical Boating Trailer 1) Bunk Pad 6) Coupler 2) Axle 7) Safety Chains 3) Frame 8) Roller 4) Bow Stop 9) Trail Light 5) Parking Jack 10-6...
Page 259 Trailering Typical Wheel Parts 1) Hub 2) Bearing 3) Lug Nut 4) Leaf Spring 1) Bow Chain 2) Winch / Cable 3) Parking Jack 4) Master Cylinder 5) Winch Stand 6) Coupler 7) Safety Chains Typical Trailer Tongue Parts 10-7...
Page 260: Driving
Chapter 10 DRIVING Practice maneuvering the vehicle and trailer in a large, empty parking lot or open space. If you practice slowly and cautiously, you will soon develop a feel for maneuvering the trailer properly. Test your vehicle and trailer brakes before departure along with the lights.
Page 261: Backing A Trailer
Trailering BACKING A TRAILER A trailer backs in a direction opposite to an automobile. To turn a trailer, turn your steering wheel in the opposite direction you intend the back end of the trailer to go. To back a trailer to the left, the steering wheel must be turned to the right;...
Page 262 Chapter 10 LAUNCHING Serious accidents can occur at the launching ramp. Therefore, it is imperative you be alert and attentive during launching and docking activities. Study the ramp area and surrounding water for any potential hazards, such as a short ramp, or one with a drop off at the end. if you are uncertain of the conditions, ask someone else who has just used the ramp if there are any peculiarities to the area.
Page 263 Trailering CAUTION AVOID BODILY INJURY! RAMPS ARE VERY SLIPPERY. DO NOT ATTEMPT TO WALK OR STAND ON AN ANGLED BOAT RAMP. Ramp Conditions WARNING ALLOW THE TRAILER WHEEL BEARINGS AND LIGHTS TO COOL OFF BEFORE SUBMERGING. UNPLUG THE ELECTRICAL HARNESS FOR THE TRAILER BEFORE BACKING INTO WATER. Trailer Light And Wheel Bearings Warning 10-11...
Page 264: Loading Your Boat
Chapter 10 LOADING YOUR BOAT The most important thing to remember when getting your boat out of the water is that often the ramp will be crowded. As you approach the ramp, make a visual inspection of the trafﬁ c, both at the ramp, and all around you.
Page 265 Trailering After pulling you boat away from the ramp, be sure to go through all the checks involved before departure. Reinstall the harness connector and check the lights, brakes, safety chain, winch, hitch, wheel bearings, and tie downs. Remove the drain plug to drain excess water in the bilge.
Page 266 Notes 10-14...
Page 267: Glossary
Glossary & Index Below is a brief list of nautical terms useful in everyday boating communications. For a more detailed glossary of nautical terminology, we recommend you check your local library or search the internet for boating books. GLOSSARY Abeam: At right angles to the keel or center line and off the boat; parallel to the boat’s beam.
Page 268 Chapter 11 Channel: The navigable portion of a waterway of sufﬁ cient depth for most boat drafts. Chine: The junctions of the vessel’s die and bottom. When the two sides of the boat join at a shallow angle, a soft chine is produced. At steeper junction angles, a hard chine is produced.
Page 269 Glossary & Index Gunwale: The upper edge of the side of the boat where the hull folds over into the deck. Hatch: An opening in the deck to provide access below. Head: Toilet. Hull: The part of the ship from the deck down. The hull forms the shape of a boat’s bottom exterior.
Page 270 Chapter 11 Personal Flotation Device (PFD): A safety vest or jacket capable of keeping an individual aﬂ oat when worn properly. Piling: A post driven into the ground below the waterline to support a pier, dock, etc. Pitch: Theoretical distance a propeller would travel in one minute. Also, the rise and fall of a vessel’s bow and stern.
Page 271 Glossary & Index Sterndrive: An inboard/outboard (I/O) unit that utilizes a drive shaft inserted through a boat’s transom. Stringer: Strengthening integral unit fastened from fore to aft inside the hull. Skeletal support structure encapsulated in ﬁ berglass for added strength. Top Off: To ﬁ...
Page 272 Chapter 11 INDEX 7-32 Blower 1-20 1-46 3-29 Accidents 1-29 Accident Reporting 1-30 Aft Cockpit Seat 6-31 7-28 Aftermarket Accessories Boating Under The Inﬂ uence 1-36 Bow Cover Aids - Navigation Anchor Light 1-12 10-3 4-10 Bow Storage Compartment 6-34 6-29 Bow Storage Locker 6-34...
Page 273 Glossary & Index 7-32 4-12 Engine Maintenance 7-29 Cosmetic Care 7-32 Covers Engine Mounts Environmental Awareness 5-27 EPIRB 1-17 Exhaust 1-38 Dashboard Fuse Box 7-29 7-32 Dealer Responsibilities INT-5 Decommissioning Depth Finder/Sounder 3-24 Fenders 5-20 6-16 Fiberglass Direct Current (DC) Fire Extinguishers Fire 1-41...
Page 274 Chapter 11 Hazardous Conditions Metal 1-32 7-10 Hazardous Substances Multi Gauge 1-18 3-24 Helm Controls Overview 3-25 INT-9 INT-10 Navigation Aids INT-11 Navigation Lights 1-12 Horn 3-29 4-10 6-29 6-21 Night Running Hour Meter 3-26 Non-Pyrotechnic Devices Hull Bottom 7-10 Hypothermia 1-44 Operation By Minors...
Page 275 Glossary & Index Safety Lanyard Tachometer 3-35 3-26 Safety Inspection Towing 1-45 5-27 Shallow Water 1-32 Tow Mirror Option 1-27 Shifting 3-32 Transducer Transom Filler Cushion 6-33 Signals - Navigation Transom Storage 6-32 Skiing Precautions 1-25 Transom Trim Switch 10-4 Ski Locker 6-33 Trim Angle...
Page 276 Notes 11-10...
Page 277: Technical Information
For more information, contact your nearest authorized Regal dealer. For the location of your nearest authorized dealer, call 407-851-4360. You may also contact Regal through the internet at www.RegalBoats.com.
Page 278: Speciﬁ Cations
Chapter 12 SPECIFICATIONS The following speciﬁ cations describe the dimensions relative to your boat model. Note that all speciﬁ cations are approximate measurements. 1900 SPECIFICATIONS U.S.A. METRIC Length Overall 19’ 10” 6.0 M Beam 8’ 3” 2.5 M Draft - Drive Down 31”...
Page 279: Plan View

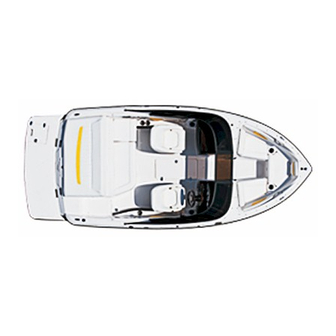

Technical Information PLAN VIEW The following ﬁ gure shows where key features are located on your vessel. Plan View 12-3...
Page 280 Chapter 12 If any of the labels in the following ﬁ gure are missing, contact your Regal dealer for replacements. Depending on your optional features, you may have more precautionary labels. CAUTION: TO AVOID INJURY, GLASS DOOR MUST BE SECURED IN A CLOSED AND LOCKED POSITION WHEN BOAT IS UNDER WAY.
Page 281 Chapter 12 Fuel System Layout_____________________________________________________________________________________ Fuel System Layout 12-5...
Page 282 Chapter 12 Bilge System Layout_____________________________________________________________________________________ Bilge And Drainage Diagram 12-6...
Page 283 Chapter 12 Electrical System Layout__________________________________________________________________________________ Battery Cable Routing 12-7...
Page 284 Chapter 12 Sump Harness Routing 12-8...
Page 285 Chapter 12 Deck Harness Routing 12-9...
Page 286 Chapter 12 Depth Gauge And Transducer 12-10...
Page 287 Chapter 12 Hardware Layout_______________________________________________________________________________________ Deck Hardware 1 of 2 12-11...
Page 288 Chapter 12 Deck Hardware 2 of 2 12-12...
Page 289 Chapter 12 Hull Hardware_________________________________________________________________________________________ Hull Hardware 12-13...
Page 290 Chapter 12 Fusion Stereo Connection________________________________________________________________________________ Fusion Stereo Connection 12-14...
Page 291 Chapter 12 Fusion Stereo Optional Performance Package Connection 12-15...
Page 292 Chapter 12 Trailer Harness Connection______________________________________________________________________________ Trailer Harness Plug 12-16...
Page 293 The following pages outline the basic operation of the Regal Surf System. Read and understand the Regal owner’s manual and the Regal Vue system before attempting to use the surf system along with any safety labels found in the manual or on board the vessel. Always use an on board spotter to watch and communicate with the surf rider.
Page 294 A below. 2. To activate the surf screen display and to be able to set up the system for surfing depress the timer on the Regal Vue right side. You will see a screen appear that is close to what is shown below.
Page 295 3. After initial surf display activation you can program the display to accomodate the surf rider. Use illustration B below to fill the ballast bags. Choose FILL all tab at the left hand ballast column and all bags will fill automatically and then shut off.
