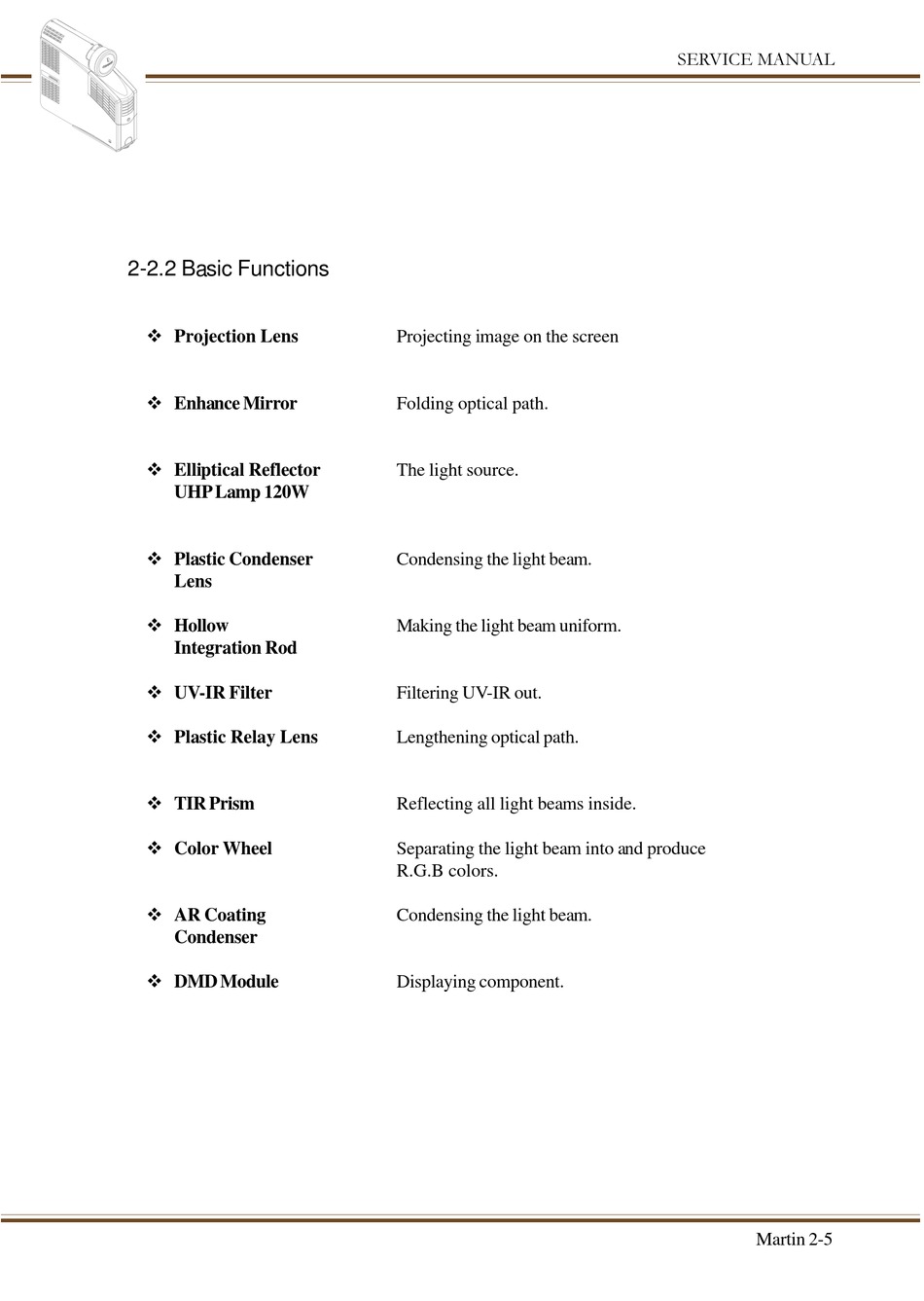

2-2.2 Basic Functions
v Projection Lens
v Enhance Mirror
v Elliptical Reflector
UHP Lamp 120W
v Plastic Condenser
Lens
v Hollow
Integration Rod
v UV-IR Filter
v Plastic Relay Lens
v TIR Prism
v Color Wheel
v AR Coating
Condenser
v DMD Module
Projecting image on the screen
Folding optical path.
The light source.
Condensing the light beam.
Making the light beam uniform.
Filtering UV-IR out.
Lengthening optical path.
Reflecting all light beams inside.
Separating the light beam into and produce
R.G.B colors.
Condensing the light beam.
Displaying component.
SERVICE MANUAL
Martin 2-5
