Sampling Heads

CSA 803C Service Manual
This procedure shows the setup and lists the test steps for calibrating Loop
Gain and Offset Null. Note that this is an optional enhanced accuracy proce
dure and it fine tunes internal channel processing circuitry in conjunction
with any operational sampling head type being used (the 067-1413-00
calibration head is a service device and does not require system calibration).
This procedure also initiates a built in CSA 803A program which causes the
mainframe to remember which sampling head type was used in the calibra
tion. In this way, pre calibrated heads can be interchanged without requiring
recalibration.

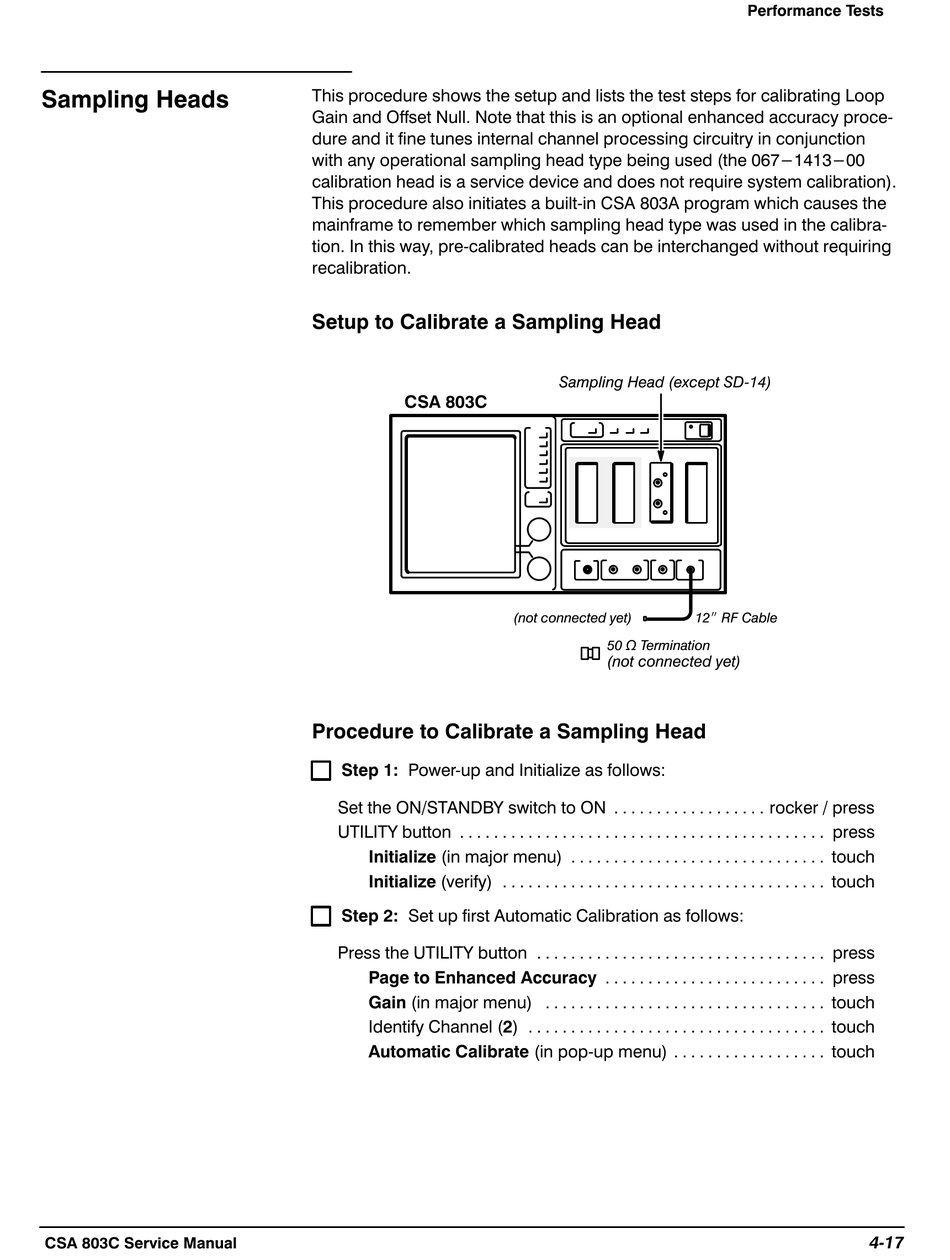

Setup to Calibrate a Sampling Head

CSA 803C

Procedure to Calibrate a Sampling Head

Step 1: Power up and Initialize as follows:
Set the ON/STANDBY switch to ON
UTILITY button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initialize (in major menu)
Initialize (verify)
Step 2: Set up first Automatic Calibration as follows:
Press the UTILITY button
Page to Enhanced Accuracy
Gain (in major menu)
Identify Channel (2)
Automatic Calibrate (in pop up menu)
Sampling Head (except SD 14)
(not connected yet)
50 W Termination
(not connected yet)
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
Performance Tests
12I RF Cable
rocker / press
press
touch
touch
press
press
touch
touch
touch
4 17
